Product Details:
Payment & Shipping Terms:
|
| USB3.0 Interface: | Support | 3G-SDI Interface: | Support |
|---|---|---|---|
| DVI-I Interface: | Support | Optical Zoom: | 12X |
| Digital Zoom: | 12X | Field Of View: | 72.5° - 6.3° |
| Mini. Illumination: | 0.5Lux(Color) | S/N Ratio: | ＞50dB |
| High Light: | conference room video camera,meeting room camer |
||

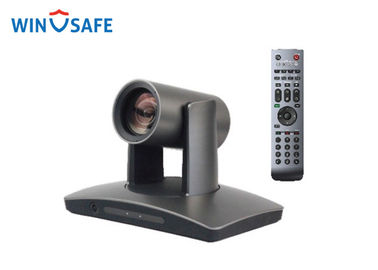

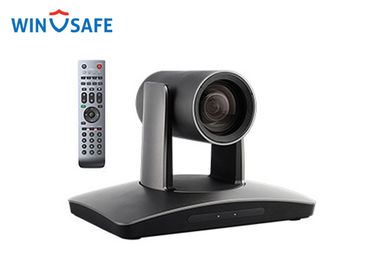

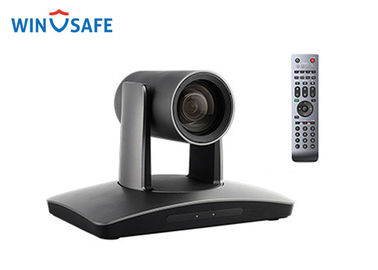

12X Optical Zoom IP Classroom PTZ HD Auto Lecturer Tracking Video Camera Supported Onvif and TF card
LTC2-A1202V2 creates video for streaming, sharing and recording, suitable for church, classroom, meeting room, lecture hall, etc. It includes one auto tracking HD camera and full HD camera, which not only frames the whole presenters via full HD camera, but also captures all details of lecturer via auto tracking HD camera.
Feature
USB 3.0
USB3.0 compatibility makes the camera a breeze for users experience. Plus, its multiple interfaces remains it enough to adapt many kinds of working demands.
Precise lock and track capability
Benifiting from face detection and motion detection technology, the camera features outstanding smooth and precise lock and track performance even in comprehensive situations.
Unmanned and standalone tracking
Thanks for tracking algorithm, the camera auto track the lecturer without any extra devices or sensors to assist tracking when the lecturer make a speech in front of the table. Even the lecturer moves and other people or objects suddenly appears, the auto tracking camera still frame the lecturer to record.
Smart tracking performance
No matter in what environment, the system isn't been interfered by other minor movements. Smooth mechanism makes sure that lecturer is always locked, when he/she moves closer/ farther. When the object is lost, the camera returns to its pre-defined position and keeps tracking at the position.
Board Writing triggers tracking
When board writing detecting camera detects sensor actions, it triggers the lecturer tracking camera to automatically move to pre-defined board position and start tracking lecturer there. If undetected, tracking camera can either stay or return to pre-defined position
Easy connection, configuration and communication
LTC2-A1202V2 supports standard VISCA & Pelco-D protocols to seamlessly communicate with your computer, whiteboard, etc. During live streaming, the features of connecting with Internet lets the camera easy to manage or interact.
LTC2-A1202V2/USB 3.0 Lecturer Tracking PTZ Camera Specification
| Model No. | LTC2-A1202V2 |
| Tracking Camera | |
| Image Sensor | 1/2.8" Exmor CMOS, 2.14MP |
| Lens | f=3.9mm-46.8mm; F1.6-F2.8 |
| Zoom | Optical:12X, Digital:12X |
| Field of View | 72.5° - 6.3° |
| Focus | Auto, Manual, PTZ Trigger AF, One Push |
| Mini.illumination | 0.5Lux(Color), 0.1Lux(B/W) |
| Shutter Speed | 1/1 - 1/10,000s |
| Gain | Auto / Manual |
| White Balance | Auto,Indoor, Outdoor, One Push, Manual, Automatic Tracking |
| AE Control | Auto, Manual, Shutter Priority, Iris Priority |
| S/N Ratio | Above 50dB |
| Full View Camera | |
| Image Sensor | 1/2.8" Exmor CMOS |
| Effective Pixel | 2.15MP |
| White Balance | Auto |
| Exposure | Auto |
| Field of View | Horizontal:86°; Vertical"52° |
| Lens | 2.4mm |
| PTZ | |
| Pan/Tilt Angle Range | Pan: -170° - +170° ; Tilt: -30° - +90° |
| Pan/Tilt Speed | Pan: 0.1° - +120°/s ; Tilt: 0.1° - +90°/s |
| Preset Number | 256 |
| Control Interface | RS232/RS485/USB3.0 |
| Ethernet | RJ45,100M |
| Control Protocol | PELCO-D / VISCA / UVC |
| Network | |
| Image Resolution | 1920x1080 @ 60fps |
| Frame Rate | 1080P60/1080P50/1080P30/108025 1080I60/1080I50/720P60/720P50 |
| Video Compression | H.264 |
| Audio Compression | AAC |
| Protocol | ONVIF / RTSP / RTMP / TCP / UDP |
| Dual Stream | Support |
| Video Interface | 3G-SDI / DVI-I / USB3.0 |
| General | |
| Power Supply | DC12V |
| Power Consumption | ＜20W |
| Working Temp | 0°C - +40°C |
| Storage Temp | -20°C - +60°C |
| Dimension | 243mm(L) x 245mm(W) x 163mm(H) |
| Weight | 1.2KG |
| Color | Grey |
Board Writing Detecting System/BLS-200
| Model No. | BLS-200 |
| Image Sensor | 1/3" Exmor CMOS |
| Effective Pixel | 4.0MP(2560x1440) |
| Min.illumination | 1Lux @ F2.0 |
| S/N Ratio | Above 50dB |
| Gain | Auto/Manual |
| Shutter Speed | 1/30 - 1/10,000s |
| White Balance | Auto/Manual |
| Focal | 2.4mm |
| View Angle | 90°(wide) - 50°(tele) |
| Aperture | F2.0 |
| Video Compression | H.264 |
| Kbps | 32Kbps-8Mbps |
| Video Frame Rate | 720p30, 1080p30 |
| Ethenet | 10-100M, Support POE |
| Power Supply | DC12V, POE |
| Power Consumption | Below5W |
| Working Temp | 0°C - +40°C |
| Humidity | Below 90%(No condensation) |
| Dimension | φ93mm * 81mm |
| Weight |
0.33kg |
LTC2-A1202V2 Dimension
LTC2-A1202V2 Bracket
