Sony Sensor USB Video Conference Camera Visca DVI-I USB3.0 HDMI PTZ For Meeting Room

China WINSAFE Technology Co.,LTD certification
China WINSAFE Technology Co.,LTD certification
Happy to meet you in Shenzhen office,Nancy.Thanks for your professional introduce of HD IP Lecturer Tracking PTZ Camera,I will test the sample soon.

—— Rainer Kreher

You did a great job delivery.I got those USB cameras in 5days after payment,that is amazing.

—— Idah Manaf

Engineer Mr wu is very nice and patient.He did a high efficient support when we got a connecting problem in office last week,that is very very importa

—— Jonathan

I'm Online Chat Now

Sony Sensor USB Video Conference Camera Visca DVI-I USB3.0 HDMI PTZ For Meeting Room

Sony Sensor USB Video Conference Camera Visca DVI-I USB3.0 HDMI PTZ For Meeting Room
Sony Sensor USB Video Conference Camera Visca DVI-I USB3.0 HDMI PTZ For Meeting Room Sony Sensor USB Video Conference Camera Visca DVI-I USB3.0 HDMI PTZ For Meeting Room Sony Sensor USB Video Conference Camera Visca DVI-I USB3.0 HDMI PTZ For Meeting Room

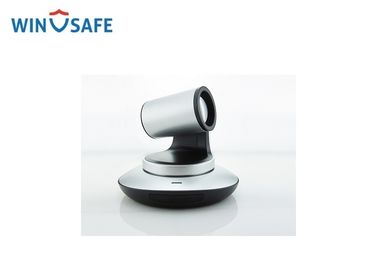

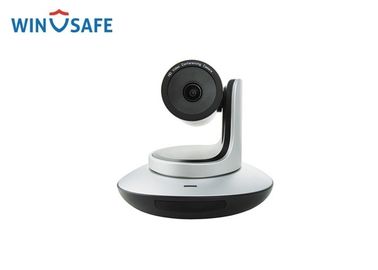

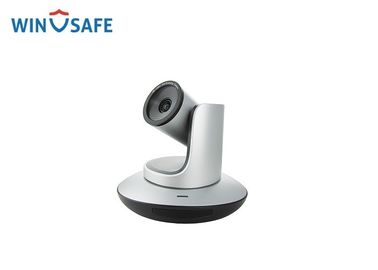

Large Image :  Sony Sensor USB Video Conference Camera Visca DVI-I USB3.0 HDMI PTZ For Meeting Room

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE/FCC
Model Number: UHV-12X-U3

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Neutral Packing
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T
Supply Ability: 3000pcs/month
Detailed Product Description
Sensor: Sony 1/2.8 5MP Optical Zoom: 20X
FOV: 72.5° Port: USB 3.0
Video System: 192 X1080P60/50/30/25 Preset: 128
Weight: 1.25kg
High Light:

conference room video camera

,

usb ptz hd camera

Sony Sensor Visca DVI-I &USB3.0 & HDMI PTZ Video Camera For Huddle Room / Meeting Room

Overview


1080p/60 Resolution

Adopted advanced American Ambarella broadcast level chip, and Sony high speed&low noise 1/2.8" 8MP sensor, to output exceptional image quality


12x Optical Zoom,57.4° FOV


Fast&accurate focus and big zoom 12X lossless optical zoom, with 72.5 degree wide angle FOV, along with 340 degree pan&120 degree tilt rotation at adjustable speed to capture any view in the space.


HDMI&USB3.0 Output simultaneously

USB3.0&HDMI full HD video streaming output, enables it works for cloud-based unified communication as well as on premise video collaboration with any softwares and hardwares terminal you prefer, to replace complex, costlu traditional video conferencing system



Flexible Compatibility


Compatible with most leading video conferencing software and platform, Zoom.us, Skype4business, Viydo, Bluejeans, Polycom, Lifesize, Webex, Google Hangout, Adobe ect, at different operation system Windows, Mac, Android and Linux.
And FECC (far-end camera control) supported via the software.


RS232/RS485/UVC control


Standard Sony Visca and UVC1.5 protocol, users can control the camera via both RS232(RS485) and USB port. 128 presets through RS232 control and 10 presents by remote controller. Field upgradable for firmware via RS232&USB port easily.


Multiple Installation Way


Support multiple mount way: available to install on desk, monitor, tripod or up-side down in-ceiling.


Advantages

※ Ultra crystal video quality: with Ambarella 1/2.86 8MP Sensor and high quality 20x lens
※ Fast switching between different video formats: only 3 senconds needed
※ Fast and accurate focus performance
※ Easy firmware upgrade: no need to open the camera housing
※ USB2.0 compatible
※ Daisy Chain function: with both Visca in and Visca out port
※ Compatible with the majority of video conferencing software(UVC 1.5 protocol standard)
※ With powerful functional remote controller
※ Multi language OSD menu: support English, Chines, Russia, Spanish
※ 2 years warranty time

Features

※ USB 3.0 & DVI-I(HDMI) simultaneously output
※ Zoom: 20X optical Zoom + 12X Digital Zoom
※ 1920x1080p 60fps high resolution
※ 57.4° field of view
※ Ultra smooth PTZ mechanism
※ Accurate PT motro control
※ Up to 128 presets
※ Effective RS232/RS485 seria control
※ Exposure Compensation, 3D-noise reduction function
※ Image flip function support upside-down installation
※ Mounts: Wall mount & in-ceilling mount available
※ Sony Visca and Pelco D/P protocol controls

Specification


Model No. UHV-12X-U3
Sensor1/2.3 inch high quality, 12MP HD CMOS Sensor
Video SystemDVI-I(HDMI) portUSB 3.0 portUSB 2.0 port
1920x1080p59.94/50/29.97/25
1920x1080i59.94/50
1280x720p59.94/50/29.97/25
1920x1080p/60/50/30/25
1280x720p/60/50/30/25
1280x720p/50
Zoom12x optical zoom,2x digital zoom
View Angle6.3°(wide) - 72.5°(tele)
Focal Lengthf=3.92(wide) - 47.32mm(tele)
Minimum Lux0.01Lux
SNRMore than 50dB
White BalanceAuto/Manual
FocusAuto/Manual
IrisAuto/Manual
Electronic ShutterAuto/Manual
BLCON/OFF
Anti Flicker50Hz/60Hz/OFF
Pan Rotation Angle- 170° - +170°
Tilt Roation Angle- 30° - + 90°
Pan Rotation Speed0° - 120° /s
Tilt Rotation Speed0° - 80° /s
Preset128 via RS232(Sony Visca), 10 via remote controller
ControlRS232(Sony Visca), USB 3.0(UVC 1.5 protocol)
VideoDVI-I, USB3.0(YUY2 format)
PowerDC12V
OSD MenuEnglish/Spanish/Russian/Chinese
Dimension(W x H x W)220mm x 173mm x 117mm
Package320mm x 300mm x 310mm
Net Weight1.25KG(2.8LBS)



Dimension

Sony Sensor USB Video Conference Camera Visca DVI-I USB3.0 HDMI PTZ For Meeting Room 0


Sony Sensor USB Video Conference Camera Visca DVI-I USB3.0 HDMI PTZ For Meeting Room 1


Our services

OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days


Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea

FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days

Why choose us
Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
