| Pan Rotation Angle: | - 170° - +170° | Tilt Roation Angle: | - 30° - + 90° |
|---|---|---|---|
| Control Port: | RS232(Sony Visca), USB3.0(UVC1.5 Protocol) | Focus: | Auto/Manual |
| Color: | Grey | Minimum Lux: | 0.1Lux |
| Iris: | Auto/Manual | Warranty: | 2 Years |
| High Light: | conference room video camera,usb ptz hd camera |
||

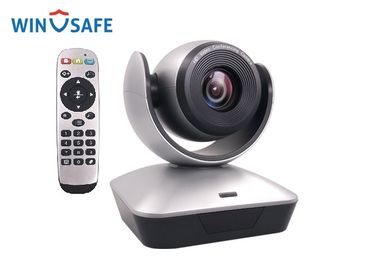

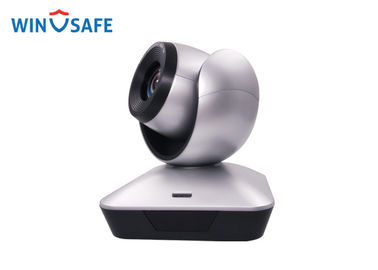

10X Optical Zoom HD USB PTZ Video Conferencing Camera For Huddle Room
Advantage
※ Ultra crystal video quality: with Ambarella DSP 1/2.8 inch SONY sensor and high quality 10x lens
※ Fast switching between different video formats: less than 1 second
※ Fast and accurate focus performance
※ Easy firmware upgrade: no need to open the camera housing
※ USB2.0 compatible
※ Compatible with the majority of video conferencing software(UVC1.5 protocol standard)
※ Powerful functional remote controller
※ Multi language OSD menu: support English, Chines, Russia, Spanish
※ 2 years warranty time
Feature
※ USB 3.0 high speed output
※ Zoom: 10X optical Zoom +12X Digital zoom
※ 1920x1080p 60fps high resolution
※ 62.5° field of view
※ Ultra smooth PTZ mechanism
※ Accurate PT motor control
※ Up to 128 presets
※ Effective RS232/RS485 seria control
※ WDR, 3D-noise reduction function
※ Image flip function support inverted installation
※ Mounts: Wall mount & in-ceilling mount available
※ Sony Visca and Pelco D/P protocol controls
Technical Specification
| Model No. | UHV-10X-U3SN1 |
| Sensor | 1/2.8 inch high quality, SONY CMOS Sensor, 2.1MP |
| Video System | 1920x1080p60/50/30/25,1280x720p60/50/30/25 |
| Zoom | 10x optical zoom + 12x digital zoom |
| View Angle | 6.43°(wide) - 62.5°(tele) |
| SNR | More than 50dB |
| Focal Length | f=4.7(wide) - 47mm(tele) |
| Minimum Lux | 0.1Lux |
| White Balance | Auto/Manual |
| Focus | Auto/Manual |
| Iris | Auto/Manual |
| Black Light Compensation | ON/OFF |
| Anti Flicker | 50Hz/60Hz/OFF |
| Pan Rotation Angle | - 170° - +170° |
| Tilt Roation Angle | - 30° - + 90° |
| Pan Rotation Speed | 0° - 120° /s |
| Tilt Rotation Speed | 0° - 80° /s |
| Preset | 128 via RS232 control; 10 via remote controller |
| Control Port | RS232(Sony Visca), USB3.0(UVC1.5 protocol) |
| Video Port | USB3.0(YUY2 format) |
| Input Voltage | DC12V |
| OSD Menu | English/Spanish/Russia/Chinese |
| Dimension(W x H x W) | 148mm x 132mm x 161mm |
| Package | 280mm x 240mm x 240mm |
Interface
Dimensional Drawing
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
