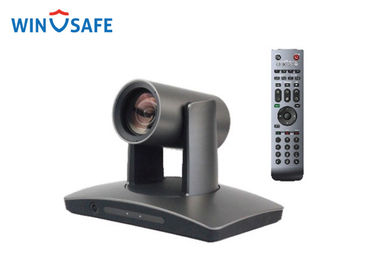

Wall Mounted PTZ Video Conference Camera IP 3G-SDI DVI USB Tracking For Lecturer Capture

Wall Mounted PTZ Video Conference Camera IP 3G-SDI DVI USB Tracking For Lecturer Capture
Wall Mounted PTZ Video Conference Camera IP 3G-SDI DVI USB Tracking For Lecturer Capture

Large Image :  Wall Mounted PTZ Video Conference Camera IP 3G-SDI DVI USB Tracking For Lecturer Capture

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE,FCC, Rohs
Model Number: LTC2-A2001NV2

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Packaging Details: Netural Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000PCS/Month
Detailed Product Description
Optical Zoom: 20X Min Illumination: 0.5Lux(Color)
Visca: Support UVC: Support
ONVIF: Support Dual Stream: Support
Power Supply: DC12V Weight: 1.2KG
High Light:

usb conference room camera

,

meeting room camer

IP 3G-SDI & DVI & USB Tracking PTZ Video Camera With Wall mounted For Lecturer Capture



Feature



※ USB2.0 Output;

※ Precise lock and track capability;

※ Unmanned and standalone tracking;

※ Smart tracking performance;

※ Board writing triggers tracking;

※ Easy connection, configuration and communication



Specification



Model No. LTC2-A2001NV2
Image Sensor 1/2.8" Exmor CMOS, 2.14MP
Lens f = 4.7mm - 94mm; F1.6-F3.5
Zoom Optical: 20X, Digital: 12X
Field of View 59.5° - 2.9°
Focus Auto, Manual, PTZ Trigger AF, One push
Min.Illumination 0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed 1/1 - 1/10,000s
Gain Auto/Manual
White Balance Auto, Indoor, Outdoor, One push, Manual, Automatic Tracking
Exposure Auto, Manual,Shutter Pri,Iris Pri
S/N Ratio Above 50dB
Full view camera
Image Sensor 1/2.8" Exmor CMOS
Effective Pixel 2.14mp
White Balance Auto
Exposure Auto
Field of View Horizontal:86°;Vertical:52°
Lens 2.4mm
PTZ
Pan/Tilt Angle Pan:-170° - +170°/s; Tilt:-30° - +90°/s
Pan/Tilt Speed Pan:0.1° - +120°/s; Tilt: 0.1° - +90°/s
Preset Number 256
Comm Interface RS232, RS485, USB2.0
Ethernet RJ45,100M(for upgrading firmware use only)
Control Protocol PELCO-D,VISCA, UVC
Video
Video Interface 3G-SDI / DVI-D / USB2.0
Video Format HD:1080P/60,1080P/50,1080P/30,1080P/25,1080i/60,1080i/50,720P/60,720P/50
Video Compression H.264/H.265
Audio Compression AAC
Network Protocol ONVIF / RTSP / RTMP / TCP / UDP
Simultaneous Users Up to 10 users
Dual Stream Support
General
Power Consumption Below 20W
Power supply DC12V
Working Temp 0°C - +40°C
Storage Temp -20°C - +60°C
Dimension 243mm x 145mm x 163mm
Weight 1.2KG
Color Grey



Dimension Drawing



        Wall Mounted PTZ Video Conference Camera IP 3G-SDI DVI USB Tracking For Lecturer Capture 0
