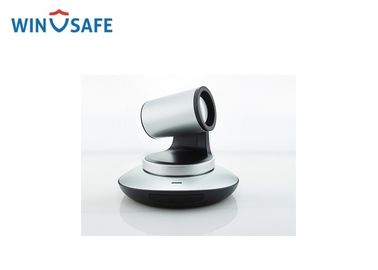

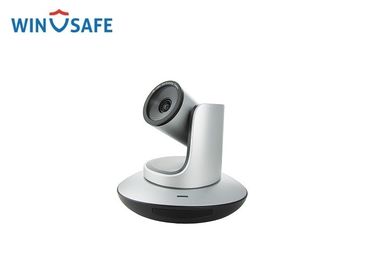

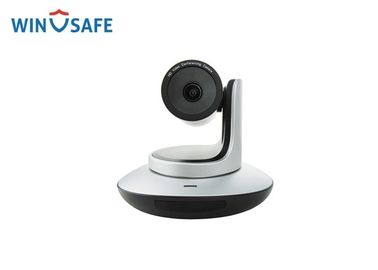

FPGA 1080P Live Broadcast Full HD PTZ Camera Remote Control SDI PTZ Video Type

FPGA 1080P Live Broadcast Full HD PTZ Camera Remote Control SDI PTZ Video Type
FPGA 1080P Live Broadcast Full HD PTZ Camera Remote Control SDI PTZ Video Type FPGA 1080P Live Broadcast Full HD PTZ Camera Remote Control SDI PTZ Video Type FPGA 1080P Live Broadcast Full HD PTZ Camera Remote Control SDI PTZ Video Type

Large Image :  FPGA 1080P Live Broadcast Full HD PTZ Camera Remote Control SDI PTZ Video Type

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE, FCC
Model Number: UHV-20X-IP-S(FPGA)

Payment & Shipping Terms:

Minimum Order Quantity: 1Piece
Packaging Details: Neutral Packing
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Sensor: 1/2.8 Inch CMOS Resolution: 1920x1080P@59.94
Optical Zoom: 20X Digital Zoom: 2X
View Angle: 61 Degree Video Port: HDMI/RJ45/SDI/USB3.0/USB2.0
Package Size: 320mm X 300mm X 310mm Net Weight: 1.25KGS
High Light:

full hd surveillance cameras

,

full hd security camera

FPGA Full HD 1080P Live Broadcast Camera Remote Control SDI PTZ Video Camera

Specification


Model No. UHV-20X-IP-S(FPGA)
Camera
Sensor 1/2.8 inch, 5Mega Pixel High Quality CMOS sensor
Video System HDMI SDI IP USB3.0

1080p60/59.94/50/30
 /29.97/25/24
720p60/59.94/50/30/29.97/25
1080i60/59.94/50

1080p60/59.94/50
/30/29.97/25/24
720p60/59.94/50/30/29.97/25
1080i60/59.94/50

Main Steam:
1920x1080p60
Sub Steam:
1280x720,704x576,640x480,352x288
1080p60/50/30/25
720p60/50/30/25
USB3.0&USB2.0
1024x576p30
960x540p30
640x360p30
352x288[30
Zoom 20x optical zoom & 2x digital zoom
View Angle 61°(diagonal)
Focal Length f=5.2(near) - 98mm(far)
Preset 10 via remote controller: 128 via serial port; preset precision: 0.1°
Noise Reduction 2D & 3D
SNR Above 50dB
Minimum Lux 0.01Lux
White Balance Auto/Manual/Auto Tracking/One Push/Indoor/Outdoor
Anti Flicker 50Hz/60Hz/OFF
D/N Mode Supported
Gamma Supported
Mirror Image 0.01Lux
IRIS Auto/Manual
Electronic Shutter Auto/Manual
BLC Auto/Manual
Focus Auto/Manual
Mechanisam
Rotation Angle Pan: -170° - +170°; Tilt: -30° - +90°
Rotation Speed Pan:0° - 120° /s; Tilt: 0° - 80°/s
Pan Tilt Flip Supported
Control Port RS232/RS485
Video Port HDMI/RJ45/SDI/USB3.0/USB2.0
SNR 75dB
Encode
Network Speed 1000M
Video Encoding H.264/H.265
Bit Rate Control Variable Bit Rate, Constant Bit Rate
Video Bit Rate 1024Kbps - 30720Kbps
Frames 50HZ: 1fps - 50fps; 60HZ: 1fps - 60fps
IP Protocol TCP/IP, HTTP, RTSP, Onvif DHCP
POE Supported
Input Voltage DC12V,2A
OSD Menu
Language English/Chinese
Dimension(W x H x W) Auto/Manual
Dimension 220mm x 173mm x 190mm
Net Weight 1.25KGS(2.8LBS)
Package 320mm x 300mm x 310mm
Warranty
Basic Warranty 2 Years



Features

Pannasonic 1/2.8 inch 5MP Sensor + 20X Optical Zoom Lens
Adopt most advanced camera ISP and 20x optical big zoom, to output full HD 1080p60 and sharp video resolution, capture long distance and full view in the large room

IP + 3G-SDI + HDMI + USB3.0 OUTPUT
With various video output interface IP+3G-SDI+HDMI+USB3.0, fit to different AV application demand. 1080P60 video over IP, and support H.264, H.265 encoding

SERIAL VISCA AND IP VISCA AVAILABLE
Standard IP Visca, Serial Visca, Pelco-P/D control protocol, IP Visca Over TCP/UDP

POE SUPPORTED
Support POE: easy to use one RJ45 cable to get video, control and power supply

Application

             FPGA 1080P Live Broadcast Full HD PTZ Camera Remote Control SDI PTZ Video Type 0
