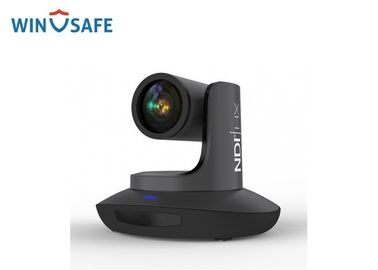

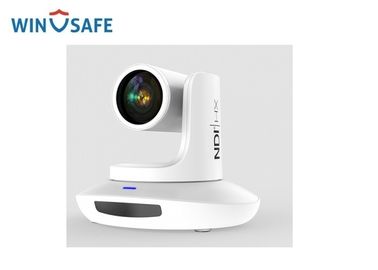

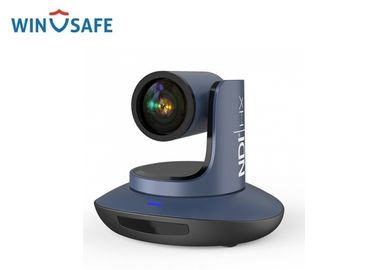

Full HD Video Conferencing Camera 1080P NDI PTZ For AV Integration / Live Stream Solution

Full HD Video Conferencing Camera 1080P NDI PTZ For AV Integration / Live Stream Solution
Full HD Video Conferencing Camera 1080P NDI PTZ For AV Integration / Live Stream Solution Full HD Video Conferencing Camera 1080P NDI PTZ For AV Integration / Live Stream Solution Full HD Video Conferencing Camera 1080P NDI PTZ For AV Integration / Live Stream Solution

Large Image :  Full HD Video Conferencing Camera 1080P NDI PTZ For AV Integration / Live Stream Solution

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE, FCC, RoHs
Model Number: UHV-12X-IP-S(NDI)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Neutral packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, Paypal
Detailed Product Description
Sensor: 1/2.8" 5MegapixelCMOS Max Resolution: 1920x1080p
Optical Zoom: 12x Digital Zoom: 2x
Network Speed: 1000 Meters Noise Reduction: 2D&3D
Color: White/Black/Grey/Blue Iris: Supported
High Light:

conference room video camera

,

usb ptz hd camera

Professional Full HD 1080P NDI PTZ Camera For A/V Integration / Live Stream Solution With Color optional



WINSAFE UHV-12X-IP-S(NDI) is a professional full HD video camera, with NDI, 3G-SDI, HDMI and USB3.0 output interface, it has 20x optical zoom, with 72.5 wide angle. NDI enables live streaming simpler, easier and affordable. No mess, an Ethernet cable enables video, audio, control, tally, and power. UHV-12X-IP-S(NDI) is a top-rated option used in professional live streaming solution, working with TriCaster, Wirecast, Vmix, OBS, Xplit etc, applied for Corporate, Class Room, Studio, and Professional AV environments.



Feature



※ Adopting the advanced ISP, 1/2.8 inch 5MP sensor, providing users crystal clear video
※ 12x optical zoom+2x digital zoom, 72.5 degree field of view,idea for large space AV solution
※ IP Video Streaming, includes both H.264, H.265 video encoding
※ 1080p30 full HD Video over NDI|HX, 3G-SDI, HDMI, USB output video simultaneously
※ WDR, 3D Noise Reduction feature
※ Power over Ethernet: one single CAT5/6 to get video, control, tally and power
※ Live RTMP streaming, streaming to YouTuBe Live and Facebook Live directly
※ Special Focusing Algorithm: fast and precise focusing performance when zooming or moving
※ Smooth PTZ mechanical design, accurate pan tilt motor control
※ 128 presets
※ Standard Sony VISCA, IP VISCA, PELCO-P, PELCO-D control protocol; IP VISCA over both TCP and UDP.
※ Daisy chain supported
※ Image flip function, support upside-down installation
※ Supplied with functional IR remote controller, can set IP address via OSD menu
※ Support multiple browsers to view video such as IE, Chrome, Firefox, Safari in both Mac and Windows system
※ Optional enclosure color: silver, grey, black, white



Technical Specification





Model No. UHV-12X-IP-S(NDI)
Camera
Sensor 1/2.8" 5MegapixelCMOS Sensor
Video System HDMI NDI|HX 3G-SDI USB
1920x10800p60/50/30/25
1280x720p60/50/30/25
1920x1080i60/50
Main Steam:
1920x1080p30
1280x720p30
Sub Steam:
1280x720@30
1024x576@30
640x360@30
1920x1080p60/50/30/25
1280x720p60/50/30/25
1920x1080i60/50
USB 3.0:
1920x1080p60/50/30/25
1280x720p60/50/30/25
1024x576p30
USB 2.0:
1024x576p30,960x540p30
640x360p30,352x288p30
Zoom 12x optical zoom + 2x digital zoom
View Angle 6.3°(wide) - 72.5°(Tele)
Focal Length f=3.92(wide) - 47.32mm(Tele)
Preset 10 via remote controller; 128 via serial port; preset precision:0.1°
Pan Rotation Angle - 170° - +170°
Tilt Roation Angle - 30° - + 90°
Pan Rotation Speed 0° - 120° /s
Tilt Rotation Speed 0° - 80° /s
Control Port NDI|HX RS232 / RS485
Video Port NDI|HX/3G-SDI/HDMI/USB3.0
Network Speed 1000M
Noise Reduction 2D & 3D
SNR Above 50dB
Minimum Lux 0.01Lux
White Balance Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor
Anti Flicker 50Hz/60Hz/OFF
D/N Mode Supported
Gamma Supported
Mirror Image Supported
Image Flip Supported
Iris Auto/Manual
Electric Shutter Auto/Manual
BLC Atuo/Manual
Focus Auto/Manual
Video Encoding H.264/H.265
Bit Rate Control Variable BitRate, Constant Bit Rate
Video Bit Rate 1024Kbps - 20480Kbps
Frames 50HZ: 1fps - 30fps; 60HZ: 1fps - 30fps
IP Protocol TCP/IP, HTTP,RTSP, RTMP, Onvif, DHCP,VISCA over IP(TCP&UDP),HTML5
POE Supported
Power DC12V,2A
Dimension 220mm x 173mm x 190mm
Net Weight 1.25KGS(2.8LBS)




Our services

OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days


Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days


Why choose us

Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
