Analog Portable Mobile PTZ Camera Anti-Vibration Continuous 360° Pan For Car Roof Mounting with Pelco-D/P supported

Analog Portable Mobile PTZ Camera Anti-Vibration Continuous 360° Pan For Car Roof Mounting with Pelco-D/P supported
Analog Portable Mobile PTZ Camera Anti-Vibration Continuous 360° Pan For Car Roof Mounting with Pelco-D/P supported

Large Image :  Analog Portable Mobile PTZ Camera Anti-Vibration Continuous 360° Pan For Car Roof Mounting with Pelco-D/P supported

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE/FCC
Model Number: WS-VS3600

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Neutral Packing
Delivery Time: 5 - 8 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 6000PCS/Month
Detailed Product Description
WS-VS3600: 36X Optical Zoom WS-VS2800: 28X Optical Zoom
Resolution: 550TVL Digital Zoom: 12X
IP Code: IP66 Protocol: Pelco - D / Pelco - P
WDR: Yes Weight: 1.36kg
High Light:

marine security cameras

,

marine surveillance camera

Analog Portable Mobile PTZ Camera Anti-Vibration Continuous 360° Pan For Car Roof Mounting with Pelco-D/P supported

Features

※ Full weather proof,anti-vibration,IP66 protection
※ Compact integrated design
※ Random scan, cruise, pattern scan
※ Image flip function, sensitive to smoke in the car
※ Continuous 360° pan, 90° tilt
※ Preset number up to 100
※ P/T speed auto adjusted as per optical zoom

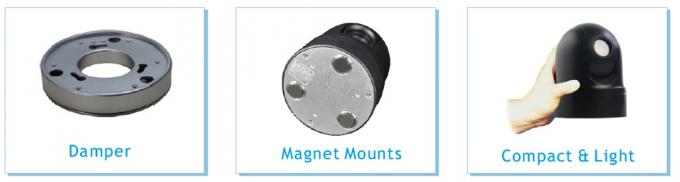

※ Magnets for car roof mounting, Optinal damping system

Technical Specification



Model No. WS-VS3600 WS-VS2800
IP Protection 1/4" SONY EX-View HAD CCD
Resolution 550TVL
Video Output 1.0 ± 0.2V
WDR Yes
Min Illumination 0.01Lux 0.0015Lux
IR Cut Filter Yes
Lens F1.6 - F4.5, f=3.4 - 122.4mm F1.35 - F3.7, f=3.5 - 98mm
Optical Zoom 36X 28X
Digital Zoom 12X
S/N Ratio Above 50dB
AGC Auto / Manual
BLC Auto / Manual
P/T Range PAN:360° Continuous; TILT: - 15 ° - 90°
P/T Speed PAN: 0.04° - 90°/s; TILT:0.03° - 120°/s,auto flip
Auto Cruise Auto switch from 1 to 39 preset positions sequentially
Pattern Scan 4 routes of pattern scan
Presets 100
Protocol Pleco-D/P
Communication RS485
Baud Rate 1200bps, 2400bps, 4800bps, 9600bps, 19200bps
Sectra Address 0 - 255
Power Consumption 10W
Working Temperature -25°C - +65°C
Voltage DC12V+/-0.5V
Weight 1.36kg


Analog Portable Mobile PTZ Camera Anti-Vibration Continuous 360° Pan For Car Roof Mounting with Pelco-D/P supported 0

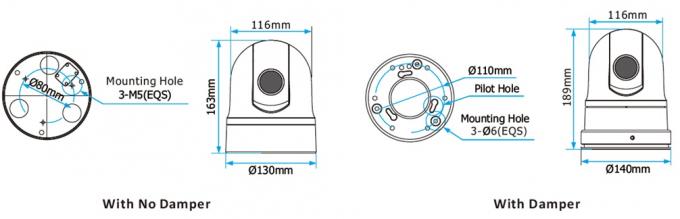

Dimensional Drawing

Analog Portable Mobile PTZ Camera Anti-Vibration Continuous 360° Pan For Car Roof Mounting with Pelco-D/P supported 1

Our services

OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days


Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days


Why choose us

Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
