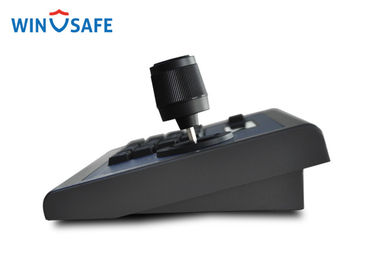

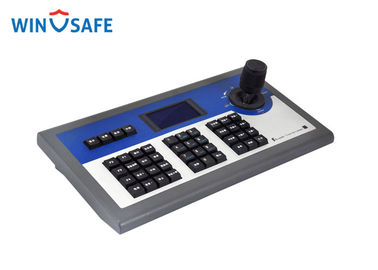

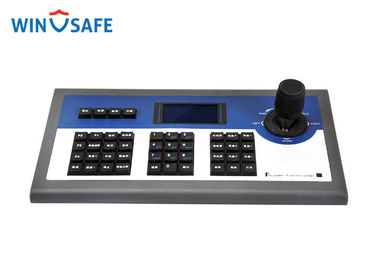

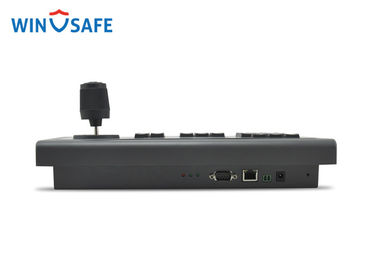

Blue LCD Screen DVR 3D PTZ Controller Manual 10Pin Pressing Line Port Interface Mode

Blue LCD Screen DVR 3D PTZ Controller Manual 10Pin Pressing Line Port Interface Mode
Blue LCD Screen DVR 3D PTZ Controller Manual 10Pin Pressing Line Port Interface Mode Blue LCD Screen DVR 3D PTZ Controller Manual 10Pin Pressing Line Port Interface Mode Blue LCD Screen DVR 3D PTZ Controller Manual 10Pin Pressing Line Port Interface Mode Blue LCD Screen DVR 3D PTZ Controller Manual 10Pin Pressing Line Port Interface Mode

Large Image :  Blue LCD Screen DVR 3D PTZ Controller Manual 10Pin Pressing Line Port Interface Mode

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: CKB-10IP

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Neutral Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 8000pcs/month
Detailed Product Description
Model No.: CKB-11 Communication Mode: RS485 Half-duplex
Joystick: 3D Interface Mode: 10PIN Pressing Line Port
Display: Blue LCD Screen Power Consumption: 6W
Weight: 2.9kg Dimension: 420mm X 260mm X 170mm
High Light:

ptz joystick controller

,

ptz ip camera controller



Blue LCD Screen DVR 3D PTZ Controller Manual 10Pin Pressing Line Port Interface Mode





Application



Used in the places where need quick control for Hikvision DVR, high speed dome camera, PTZ, motorized lens, outdoor wiper shield, etc





Product Overview





This control keyboard is specially used for controlling one or more Hikvision DVR conveniently without the limit of DVR panel and remote controller. Meantime it is specially designed for the quick control of dome camera and PTZ,let the actual control person control all the front end speed dome camera and Hikvision DVR through only one terminal device.





Feature





※ Display the current control address’s agreement and baudrate real time.
※ Refurbish the firmware program on line
※ Maximum sub-control:16
※ Completely replace the Hikvision embedded DVR’’s panel and remote control’s function
※ Simultaneously control the embedded DVR, speed dome camera and decoder
※ RS485 control bus,control 31 DVRs at the most
※ All input and output communication port use anti-radar design,powerful anti-jamming performance, the standard transmitting distance is 1200 meters
※ Good communication compatibility, built-in many kinds of agreements
※ Keyboard operation password on/off/lock function
※ Key-press warning on/off function
※ Speed dome camera infinitely variable speed control
※ Blue LCD display





Specification



Model No. CKB-11
Protocol Embeded DVR: Hikvision; High Speed Dome Camera: Pelco-D, Pelco-P, Panasonic, Hivision etc.
Baud Rate(bps) 1200bps,2400bps,4800bps,9600bps,19200bps
Control Address Control 31 embeded DVR at the most, address code: 1- 31, Control 255 dome camera, decoder at the most, address code:0-254
Communication Mode RS485 half-duplex (twin channel)
Cascade Connection Mumber 16 sub-control at most, controllerID:0 -15
Joystick 3D(up, down, left,right, zoom)
Interface Mode 10PIN pressing line port
Display Blue LCD Screen
Warning Tone Key - touch keep on/off
Power Supply DC12V ± 10%
Power Consumption 6W MAX
Working Temperature 0°C - 50°C
Working Humidity 20% - 80% frostless
Storage Temperature -20°C - 70°C
Dimension 420 x 260 x 170(mm)
Weight 2.9kg
Certification CE, FCC, RoHs
Warranty Time One Year







Our services

OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days



Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days



Why choose us

Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
