62.5° Angle Full HD PTZ Camera 1080P , 2.0 USB Camera Optical Zoom 10X

China WINSAFE Technology Co.,LTD certification
China WINSAFE Technology Co.,LTD certification
Happy to meet you in Shenzhen office,Nancy.Thanks for your professional introduce of HD IP Lecturer Tracking PTZ Camera,I will test the sample soon.

—— Rainer Kreher

You did a great job delivery.I got those USB cameras in 5days after payment,that is amazing.

—— Idah Manaf

Engineer Mr wu is very nice and patient.He did a high efficient support when we got a connecting problem in office last week,that is very very importa

—— Jonathan

I'm Online Chat Now

62.5° Angle Full HD PTZ Camera 1080P , 2.0 USB Camera Optical Zoom 10X

62.5° Angle Full HD PTZ Camera 1080P , 2.0 USB Camera Optical Zoom 10X
62.5° Angle Full HD PTZ Camera 1080P , 2.0 USB Camera Optical Zoom 10X 62.5° Angle Full HD PTZ Camera 1080P , 2.0 USB Camera Optical Zoom 10X 62.5° Angle Full HD PTZ Camera 1080P , 2.0 USB Camera Optical Zoom 10X

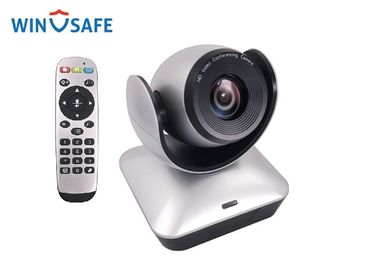

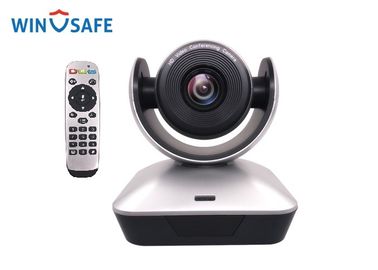

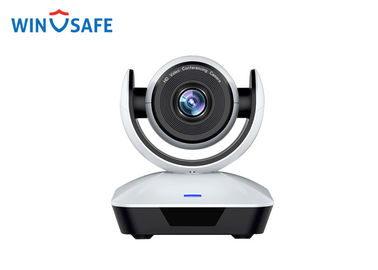

Large Image :  62.5° Angle Full HD PTZ Camera 1080P , 2.0 USB Camera Optical Zoom 10X

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE/FCC
Model Number: UHV-10X-U2S

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Neutral Packing
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000pcs/month
Detailed Product Description
Video Port: USB2.0 Focal Length: F=4.7mm - 47mm
Minimum Lux: 0.1Lux White Balance: Auto/Manual
Sensor: 1/2.8" Inch HD CMOS Resolution: 5MP
Optical Zoom: 10X Digital Zoom: 12X
High Light:

full hd surveillance cameras

,

hd pan tilt zoom camera

62.5° Angle Full HD PTZ Camera 1080P , 2.0 USB Camera Optical Zoom 10X



Advantages



※ Outstanding Video Quality



UHV-10X-U2S offers brilliantly sharp video with Ambarella DSP 1/ 2.8 inch Sony sensor and 10X lens



※ Auto focus performs excellently



When the camera is potisioned in the working environment, it fastly frame the presenters with smooth pan/tilt/zoom mechanism. Every details can be seen and recorded.



※ Easy USB2.0 connectivity



Firmware directly update without opening the camera housing.



※ Multi language OSD menu



English, Chinese, Russia, Spanish is supported in OSD mesu.



※ 2 years warranty



The camera can be repaired for free in 2 year within the scope of repairing.



Features



※ USB 2.0 high speed output
※ Zoom: 10X optical Zoom +12X Digital zoom
※ 1920x1080p 30fps high resolution
※ 62.5° field of view
※ Ultra smooth PTZ mechanism
※ Accurate PT motor control
※ Up to 128 presets
※ Effective RS232/RS485 seria control
※ WDR, 3D-noise reduction function
※ Image flip function support inverted installation
※ Mounts: Wall mount & in-ceilling mount available
※ Sony Visca and Pelco D/P protocol controls



Specification



Model No. UHV-10X-U2S
Sensor 1/2.8 inch high quality, SONY CMOS Sensor
Video System 1920x1080P30/25, 1280X720P30/25
Zoom 10x optical zoom + 12x digital zoom
View Angle 6.43°(wide) - 62.5°(tele)
SNR More than 50dB
Focal Length f=4.7(wide) - 47mm(tele)
Minimum Lux 0.1Lux
White Balance Auto/Manual
Focus Auto/Manual
Iris Auto/Manual
Electronic Shutter Auto/Manual
Black Light Compensation ON/OFF
Anti Tlicker 50Hz/60Hz/OFF
Pan Rotation Angle - 170° - +170°
Tilt Roation Angle - 30° - + 90°
Pan Rotation Speed 0° - 120° /s
Tilt Rotation Speed 0° - 80° /s
Preset 128 via RS232 output, 10 via remote controller
Video USB2.0(MJPG fomat)
Control RS232(Sony visca), USB 2.0(UVC1.5 protocol)
Power DC12V
OSD Menu English/Chinese
Dimension(W x H x W) 148mm x 132mm x 161mm
Package 280mm x 240mm x 240mm
Net Weight 0.9KG(2LBS)



Application software



                                 62.5° Angle Full HD PTZ Camera 1080P , 2.0 USB Camera Optical Zoom 10X 0





Our services

OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days



Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


FAQ

MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
