Product Details:
Payment & Shipping Terms:
|
| HDMI Output: | Support | USB3.0 Output: | Support |
|---|---|---|---|
| NDI Output: | Support | 3G-SDI: | Support |
| Optical Zoom: | 20x | Digital Zoom: | 2X |
| View Angle: | 60.5° | SNR: | 50dB |
| High Light: | 20X Optical Zoom PTZ Camera,NDI Video PTZ Camera,1080P Live Streaming PTZ Camera |
||

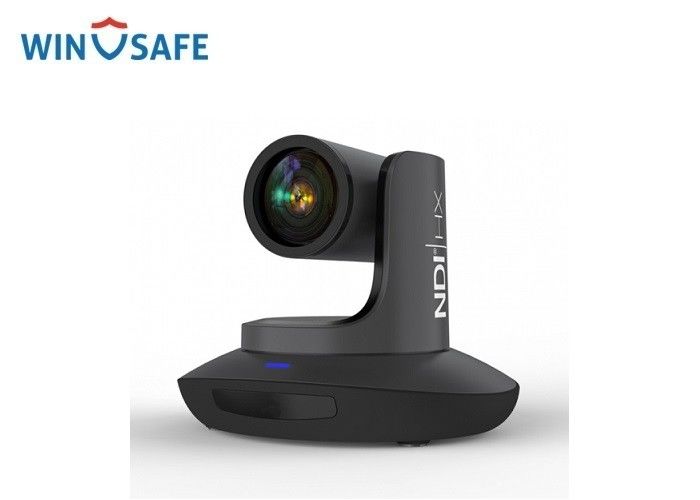

1080P 20X optical Zoom IP NDI Video PTZ Camera For Live Streaming Solution
WINSAFE UHV-20X-IP-S(NDI) is a professional full HD video camera, with NDI, 3G-SDI, HDMI and USB3.0 output interface, it has 20x optical zoom. NDI enables live streaming simpler, easier and affordable. No mess, an Ethernet cable enables video, audio, control, tally, and power. UHV-20X-IP-S(NDI) is a top-rated option used in professional live streaming solution, working with TriCaster, Wirecast, Vmix, OBS, Xplit etc, applied for Corporate, Class Room, Studio, and Professional AV environments.
Feature
※ Adopting the advanced ISP, 1/2.8 inch 5MP sensor, providing users crystal clear video
※ 20x optical zoom+2x digital zoom, 61 degree field of view,idea for large space AV solution
※ IP Video Streaming, includes both H.264, H.265 video encoding
※ 1080p30 full HD Video over NDI|HX, 3G-SDI, HDMI, USB output video simultaneously
※ WDR, 3D Noise Reduction feature
※ Power over Ethernet: one single CAT5/6 to get video, control, tally and power
※ Live RTMP streaming, streaming to YouTuBe Live and Facebook Live directly
※ Special Focusing Algorithm: fast and precise focusing performance when zooming or moving
※ Smooth PTZ mechanical design, accurate pan tilt motor control
※ 128 presets
※ Standard Sony VISCA, IP VISCA, PELCO-P, PELCO-D control protocol; IP VISCA over both TCP and UDP.
※ Daisy chain supported
※ Image flip function, support upside-down installation
※ Supplied with functional IR remote controller, can set IP address via OSD menu
※ Support multiple browsers to view video such as IE, Chrome, Firefox, Safari in both Mac and Windows system

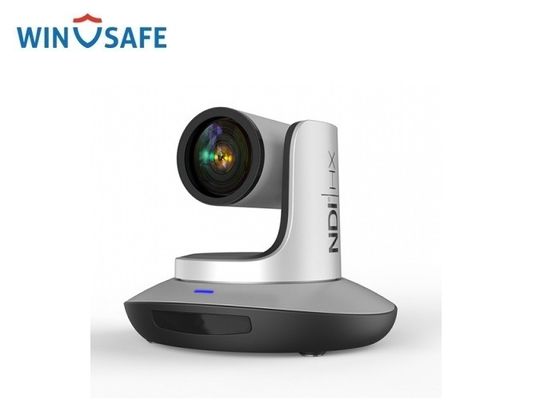

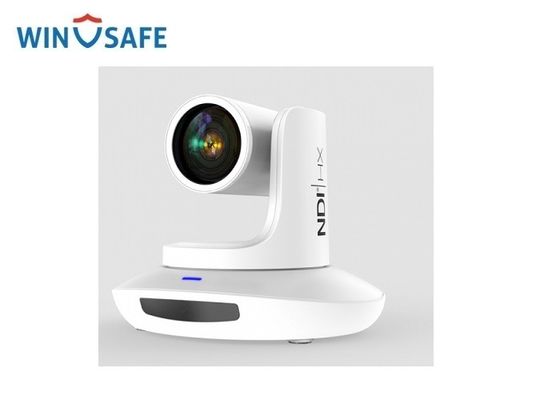

※ Optional enclosure color: silver, grey, black, white
Technical Specification
| Model No. | UHV-20X-IP-S(NDI) | |||
| Camera | ||||
| Sensor | 1/2.8" 5MegapixelCMOS Sensor | |||
| Video System | HDMI | NDI|HX | 3G-SDI | USB |
| 1920x10800p60/50/30/25 1280x720p60/50/30/25 1920x1080i60/50 |
Main Steam: 1920x1080p30 1280x720p30 Sub Steam: 1280x720@30 1024x576@30 640x360@30 |
1920x1080p60/50/30/25 1280x720p60/50/30/25 1920x1080i60/50 |
USB 3.0: |
|
| Zoom | 20x optical zoom + 2x digital zoom | |||
| View Angle | 60.5° | |||
| F.no. | Wide: F1.5(Wide) - 3.0(Tele) | |||
| Focal Length | f=5.2(Near) - 98mm(Far) | |||
| Preset | 10 via remote controller; 128 via serial port; preset precision:0.1° | |||
| Pan Rotation Angle | - 170° - +170° | |||
| Tilt Roation Angle | - 30° - + 90° | |||
| Pan Rotation Speed | 0° - 120° /s | |||
| Tilt Rotation Speed | 0° - 80° /s | |||
| Control Port | NDI|HX RS232 / RS485 | |||
| Video Port | NDI|HX/3G-SDI/HDMI/USB3.0 | |||
| Network Speed | 1000M | |||
| Noise Reduction | 2D & 3D | |||
| SNR | Above 50dB | |||
| Minimum Lux | 0.01Lux | |||
| White Balance | Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor | |||
| Anti Flicker | 50Hz/60Hz/OFF | |||
| D/N Mode | Supported | |||
| Gamma | Supported | |||
| Mirror Image | Supported | |||
| Image Flip | Supported | |||
| Iris | Auto/Manual | |||
| Electric Shutter | Auto/Manual | |||
| Backlight Compensation | Atuo/Manual | |||
| Focus | Auto/Manual | |||
| Video Encoding | H.264/H.265 | |||
| Bit Rate Control | Variable BitRate, Constant Bit Rate | |||
| Video Bit Rate | 1024Kbps - 20480Kbps | |||
| Frames | 50HZ: 1fps - 30fps; 60HZ: 1fps - 30fps | |||
| IP Protocol | TCP/IP, HTTP,RTSP, RTMP, Onvif, DHCP,VISCA over IP(TCP&UDP),HTML5 | |||
| POE | Supported | |||
| Power | DC12V,2A | |||
| Dimension | 220mm x 173mm x 190mm | |||
| Net Weight | 1.25KGS(2.8LBS) | |||
