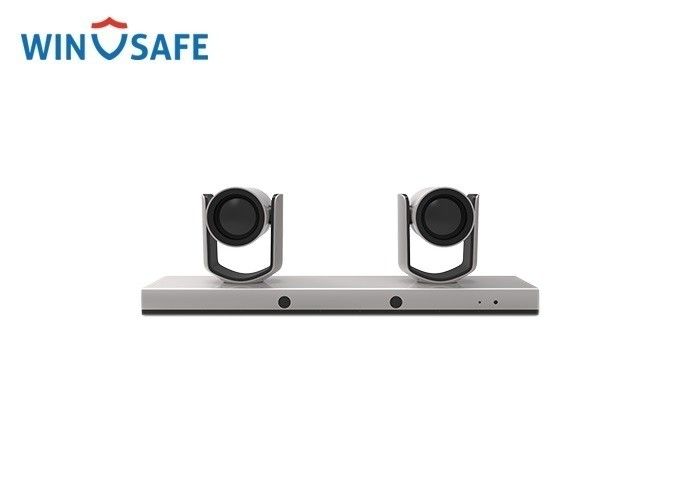

1080P IP& USB Dual Voice Tracking Cameras With Image Flip

1080P IP& USB Dual Voice Tracking Cameras With Image Flip
1080P IP& USB Dual Voice Tracking Cameras With Image Flip

Large Image :  1080P IP& USB Dual Voice Tracking Cameras With Image Flip

Product Details:

Place of Origin: CHINA
Brand Name: WINASFE
Certification: CE,FCC etc.
Model Number: AMC-G200TV2

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Netural Packing
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Pixel: 2.14MP Resolution: 1920*1080
Sensor: 1/2.8" CMOS Digital Zoom: 12X
IP: Support HDMI: Support
3G-SDI: Support USB: Support
High Light:

usb ptz hd camera

,

usb conference room camera

1080P IP& USB Dual Voice Tracking Cameras With Image Flip



With the technology of speaking tracking and face tracking, AMC-G200TV2 provide close-up images when paticipant start speaking in the meeting room. While after the participants finish his/her speech, the camera auto frame all people in the meeting room. In large meeting, AMC-G200TV2 is the best choice to free the hands of remote control or preset. The camera auto switch from close up image and panoramic picture.



Feature



※ HD 1080p@60fps, 2MP
※ Max field of view 72.5°
※ Video Output 3G-SDI, HDMI, Ethernet
※ H.264/H.265 video compression
※ Implemented with both 3D voice positioning technology, body detection and recognition algorithm, it can precisely frame the speakers
※ Automatically switch between close-up image for speakers and wide angle image for meeting participants.

※ Support Visca / Pelco-D / Pelco-P control protocol



Specification



Model No. AMC-G200TV2
HD Camera
Image Sensor 1/2.8" Exmor CMOS, 2.14MP
Signal Format(SDI) 1080p/60, 1080p/50, 1080p/30, 1080p/25,1080i/60, 1080i/50, 720p/60, 720p/50
Focal f=3.9mm-46.8mm
Iris F1.6 - F2.8
Optical Zoom 12x
Digital Zoom 12x
Field of View 72.5° - 6.3°
Focus Auto, Manual, PTZ Push, One Push
Min.illumination 0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed 1/25 - 10.000s
AGC Auto/Manual
White Balance Auto, Indoor, Outdoor, One Push, Manual, Auto Track
AE Control Auto, Manual, Shutter Priority, Iris Priority
S/N Above 50dB
DNR 2D/3D
BLC Support
PTZ
Pan/Tilt Angle Range Pan: -90° - +90° ; Tilt: -30° - +90°
Pan/Tilt Speed Pan: 0.1° - +120°/s ; Tilt: 0.1° - +80°/s
Preset Number 256
OSD Yes
Image Flip Yes
Network
Max,Image Size 1920x1080 @ 60fps
Video Compression H.264, H.265
Audio Compression AAC
Protocol HTTP,RTSP,RTMP,TCP,UDP,ONVIF
Dual Stream Support
Interface
Video Output 1 x HDMI Interface, 1 x 3G-SDI interface
Audio Input 1 x Line in
Audio Output 1 x Line out
Network Interface 1 x 10M/100M
USB interface 1 x USB 2.0
Control Interface 1 x RS232
General
Control Protocol VISCA / PELCO-P / PELCO-D
Address 0-63
Power Supply DC12V
Power Consumption Below 50W
Working Temp 0°C - +40°C
Storage Temp - 20°C - +60°C
Dimension 500mm x 163mm x 145mm
Weight 3KG



Dimension

                      1080P IP& USB Dual Voice Tracking Cameras With Image Flip 0



Interface



                    1080P IP& USB Dual Voice Tracking Cameras With Image Flip 1
