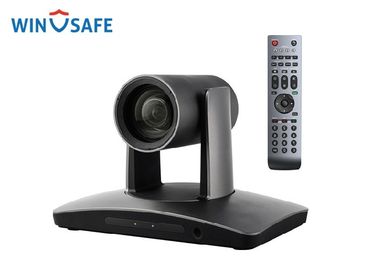

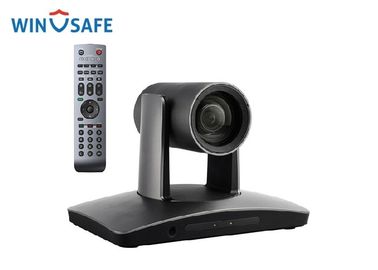

1080P IP 3G-SDI & DVI-D & USB Video Conference Camera For Huddld Room With Remote Controller And OSD Menu

China WINSAFE Technology Co.,LTD certification
China WINSAFE Technology Co.,LTD certification
Happy to meet you in Shenzhen office,Nancy.Thanks for your professional introduce of HD IP Lecturer Tracking PTZ Camera,I will test the sample soon.

—— Rainer Kreher

You did a great job delivery.I got those USB cameras in 5days after payment,that is amazing.

—— Idah Manaf

Engineer Mr wu is very nice and patient.He did a high efficient support when we got a connecting problem in office last week,that is very very importa

—— Jonathan

I'm Online Chat Now

1080P IP 3G-SDI & DVI-D & USB Video Conference Camera For Huddld Room With Remote Controller And OSD Menu

1080P IP 3G-SDI & DVI-D & USB Video Conference Camera For Huddld Room With Remote Controller And OSD Menu
1080P IP 3G-SDI & DVI-D & USB Video Conference Camera For Huddld Room With Remote Controller And OSD Menu 1080P IP 3G-SDI & DVI-D & USB Video Conference Camera For Huddld Room With Remote Controller And OSD Menu

Large Image :  1080P IP 3G-SDI & DVI-D & USB Video Conference Camera For Huddld Room With Remote Controller And OSD Menu

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE,FCC, Rohs
Model Number: AMC-E210NV2

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Packaging Details: Netural Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000PCS/Month
Detailed Product Description
Optical Zoom: 10X Min Illumination: 0.1Lux(B/W)
IRIS: F1.6-F3.5 Digital Zoom: 12X
Pan Angle: 340° Tilt Angle: 120°
Preset Number: 256 OSD: Yes
High Light:

full hd surveillance cameras

,

full hd security camera

1080P IP 3G-SDI & DVI-D & USB Video Conference Camera For Huddld Room With Remote Controller And OSD Menu



Feature



※ H.265 video compression,dual stream

※ Compatible with ONVIF,RTSP.RTMP protocols

※ 2.14MP,1/2.8" CMOS

※ With OSD menu,support image flip

※ Come with IR remote comtroller

※ Support standard VISCA & Pelco communication protocols

※ RS232IN/IR RS232OUT/RS485 control interface,support daisy chain,

※ Special mechanical PTZ driving system,ensure precise positioning



Specification



Model No. AMC-E210NV2
Image Sensor 1/2.8" Exmor CMOS, 2.14MP
Video Standard(HD) 1080p60,1080p50,1080p30,1080p25,1080i/60,1080i50,720p/60,720p50
Focal f = 4.7mm - 94mm
IRIS F1.6 - F3.5
Zoom Optical: 10X, Digital: 12X
Field of View 60.4°-6.43°
Focus Auto, Manual, PTZ Trigger AF, One push
Min.Illumination 0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed 1/1 - 1/10,000s
AGC Auto/Manual
White Balance Auto, Indoor, Outdoor, One push, Manual, Auto Track
AE Control Auto, Manual, Shutter Priority, Iris Priority, Intelligence
S/N Ratio Above 50dB
PTZ
Pan Range -170° - +170°
Tilt Range -30° - +90°
Pan Speed 0.1° - +120°/s
Tilt Speed 0.1° - +80°/s
Preset Number 256
OSD Yes
Image Flip Yes
Network
Max,Image Size 1920x1080
Frame Rate HD:50Hz:50fps(1920x1080) 60Hz:60fps(1920x1080)
Video Compression H.265,H.264
Audio Compression AAC
Protocol HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF
Dual Stream Support
Simultaneous Users up to 10 users
Interface
HD Video Output Interface DVI-D,3G-SDI
Control Interface RS-232IN/IR, RS-232OUT/RS-485
Ethernet RJ45,100M
USB USB2.0
Audio One line in; One line out
General
Control Protocol VISCA and Support Daisy Chain, PELCO-D, PELCO-P
Address 0 - 63
Power Supply DC12V
Working Temp 0°C - +40°C
Storage Temp -20°C - +60°C
Dimension 243mm x 145mm x 163mm
Weight 1.2KG
Color Grey



Dimension



1080P IP 3G-SDI & DVI-D & USB Video Conference Camera For Huddld Room With Remote Controller And OSD Menu 0
