10X Optical Zoom RS232 0.1Lux PTZ USB Camera Remote Controller

10X Optical Zoom RS232 0.1Lux PTZ USB Camera Remote Controller
10X Optical Zoom RS232 0.1Lux PTZ USB Camera Remote Controller 10X Optical Zoom RS232 0.1Lux PTZ USB Camera Remote Controller

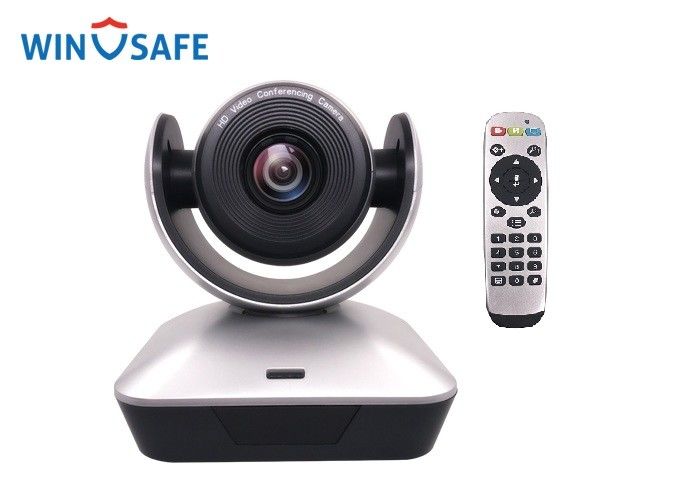

Large Image :  10X Optical Zoom RS232 0.1Lux PTZ USB Camera Remote Controller

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE, FCC
Model Number: UHV-10X-U3SS

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Neutral packaging
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Minimum Lux: 0.1Lux Max Resolution: 1080P60
View Angle: 62.5° Preset Via Controller: 10
Control Port: RS232 Video Port: USB3.0
Input Voltage: DV12V OSD Menu: English Etc
High Light:

0.1Lux PTZ USB Camera

,

RS232 PTZ USB Camera

,

10X Optical Zoom PTZ Camera

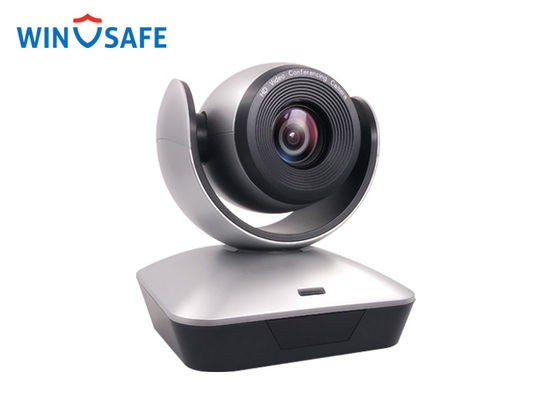

1080P 10X Optical Zoom PTZ USB Video Conference Camera With Remote Controller



UHV-10X-U3 is an excellent video conference PTZ camera for huddle medium conference room. With 10x lossless optical zoom to go with a 340° panning range and 90° tilting range and 1080P Full HD video makes sure human faces clear adn crisp.



UHV-10X-U3S is professional designed for video conferencing. Just connect it via a USB3.0 cable. And it is compatible with an extensive range of apps and clourd video services, including Zoom, Skype, Bluejeans, GoToMeeting, WebEx, etc.



Feature:



※ USB3.0, USB2.0 compatible

※ Support Sony Visca and Pelco-D/P protocol

※ Max resolution 1080P@60fps

※ 128 presets via RS232 control

※ Field of view 62.5 degree

※ Multiful language OSD menu: support English, Chinese, etc.

※ Remote controller

※ RS485 & RS232 control

※ Accurate PT Motor control



Camera Package Contents



※ Wall bracket

※ USB3.0 cable

※ AC adapter

※ Power cable

※ Remote control

※ Quick guide





Technical Specification



Model No. UHV-10X-U3SS
Sensor 1/2.8 inch high quality, SONY CMOS Sensor, 2.1MP
Video System 1920x1080p60/50/30/25,1280x720p60/50/30/25
Zoom 10x optical zoom + 12x digital zoom
View Angle 6.43°(wide) - 62.5°(tele)
SNR More than 50dB
Focal Length f=4.7(wide) - 47mm(tele)
Minimum Lux 0.1Lux
White Balance Auto/Manual
Focus Auto/Manual
Iris Auto/Manual
Black Light Compensation ON/OFF
Anti Flicker 50Hz/60Hz/OFF
Pan Rotation Angle - 170° - +170°
Tilt Roation Angle - 30° - + 90°
Pan Rotation Speed 0° - 120° /s
Tilt Rotation Speed 0° - 80° /s
Preset 128 via RS232 control; 10 via remote controller
Control Port RS232(Sony Visca), USB3.0(UVC1.5 protocol)
Video Port USB3.0(YUY2 format)
Input Voltage DC12V
OSD Menu English/Spanish/Russia/Chinese
Dimension(W x H x W) 148mm x 132mm x 161mm
Package 280mm x 240mm x 240mm



Input Interface



10X Optical Zoom RS232 0.1Lux PTZ USB Camera Remote Controller 0


Dimensional Drawing(mm)



10X Optical Zoom RS232 0.1Lux PTZ USB Camera Remote Controller 1
