Product Details:
Payment & Shipping Terms:
|
| Weight: | 1.25kg | Dimenstion: | 220mm X 173mm X 117mm |
|---|---|---|---|
| BLC: | Auto/Manual | IRIS: | Auto/Manual |
| Focus: | Auto / Manual | Power Supply: | DC12V |
| Optical Zoom: | 12X | Video Interface: | USB 3.0, DVI-I |
| High Light: | conference room video camera,meeting room camer |
||

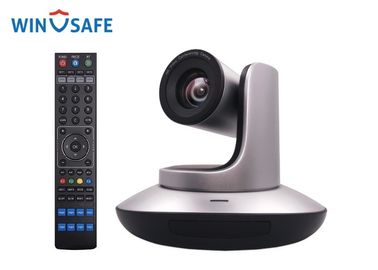

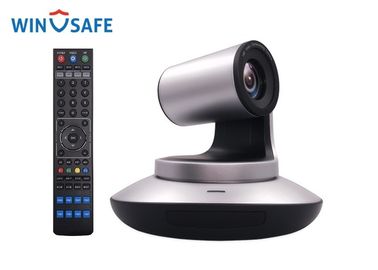

12MP Sensor USB 3.0 & DVI-I Video Inteface 1080P60 Full HD PTZ Video Conference Camera for telemedicine / UHV-12X-U3
Advantages
※ Super high video quality: with Ambarella A9 DSP 1/2.3" 12MP Sensor and high quality 12x lens
※ Fast switching between different video formats: only 3 senconds needed
※ Fast and accurate focus performance
※ Easy firmware upgrade: no need to open the camera housing
※ Daisy Chain function: with both Visca in and Visca out port
※ With powerful functional remote controller
※ Multi language OSD menu: support English, Chines, Russia, Spanish
※ 2 years warranty time
Features
※ 3G-SDI & DVI-I simultaneously output
※ Zoom: 12X optical Zoom +2X Digital Zoom
※ 1920x1080p 59.94fps high resolution
※ 72.5° ultra wide FOV
※ Ultra smooth PTZ mechanism
※ Accurate PT motro control
※ Up to 128 presets
※ Effective RS232/RS485 seria control
※ Effective 3D-noise reduction function
※ Image flip function support upside-down installation
※ Mounts: Wall mount & in-ceilling mount available
※ Sony Visca and Pelco D/P protocol controls
Technical Specification
| Model No. | UHV-12X-S | ||
| Sensor | 1/2.3 inch high quality, 12MP HD CMOS Sensor | ||
| Video System | DVI Port | 3G-SDI Port | CVBS port(optional) |
| 1080p59.94/50/29.97/25; 720p59.94/50/29.97/25 |
1080p59.94/50/29.97/25; 720p59.94/50/29.97/25 |
Analog Video | |
| Zoom | 12x optical zoom + 2x digital zoom | ||
| View Angle | 6.3°(wide) - 72.5°(tele) | ||
| Pan Rotation Angle | - 170° - +170° | ||
| Tilt Roation Angle | - 30° - + 90° | ||
| Pan Rotation Speed | 0° - 120° /s | ||
| Tilt Rotation Speed | 0° - 80° /s | ||
| Preset | 128 | ||
| Control Port | RS232/RS485 | ||
| Video Port | DVI-I, 3G-SDI, CVBS | ||
| SNR | More than 50dB | ||
| Focal Length | f=3.92(wide) - 47.32mm(tele) | ||
| Minimum Lux | 0.01Lux | ||
| White Balance | Auto/Manual | ||
| Focus | Auto/Manual | ||
| Iris | Auto/Manual | ||
| Electronic Shutter | Auto/Manual | ||
| BLC | Auto/Manual | ||
| Input Voltage | DC12V | ||
| Dimension(W x H x W) | 220mm x 173mm x 117mm | ||
| Net Weight | 1.25KG | ||
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
