Product Details:
Payment & Shipping Terms:
|
| Digital Zoom: | 12X | OSD: | Yes |
|---|---|---|---|
| Optical Zoom: | 12X | Image Flip: | Yes |
| RJ45: | Support | UVC Protocol: | Support |
| RS485: | Support | ||
| High Light: | conference room video camera,meeting room camer |
||

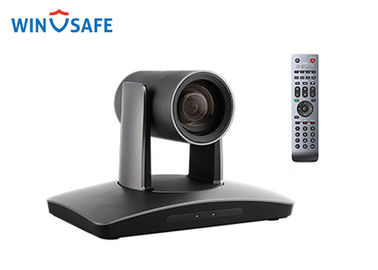

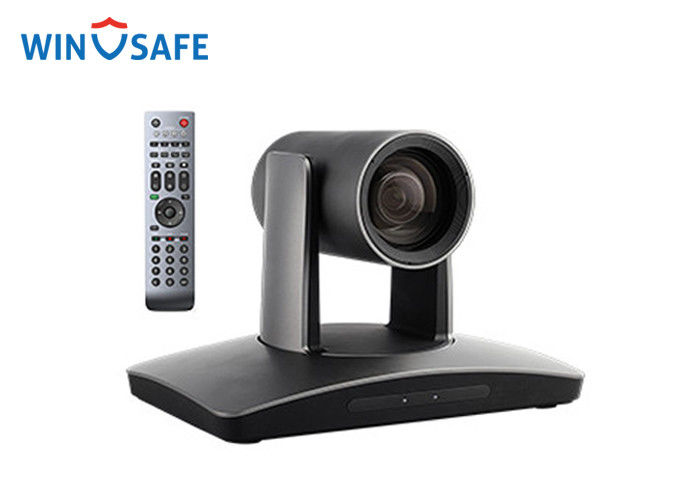

Grey 12X Optical Zoom SDI & DVI HD Video Conferencing Camera With Skype / Zoom / Bluejeans Supported
Features
※ H.265 video compression,dual stream
※ 3G-SDI / DVI-D / USB3.0 supported
※ Compatible with ONVIF,RTSP.RTMP protocols
※ 72.5°FOV,12X Optacal zoom,12X digital zoom
※ With OSD menu,support image flip
※ Come with IR remote comtroller
※ Support standard VISCA & Pelco communication protocols
※ RS232IN/IR RS232OUT/RS485 control interface,support daisy chain
※ Special mechanical PTZ driving system,ensure precise positioning
Technical Specification
| Model No. | AMC-E200TV2 |
| Tracking Camera | |
| Image Sensor | 1/2.8" Exmor CMOS, 2.14MP |
| Focal | 3.9mm - 46.8mm |
| IRIS | F1.6 - F2.8 |
| Zoom | Optical: 12X, Digital: 12X |
| Field of View | 72.5° - 6.3° |
| Focus | Auto, Manual, PTZ Trigger AF, One push |
| Min.Illumination | 0.5Lux(Color), 0.1Lux(B/W) |
| Shutter Speed | 1/1 - 1/10,000s |
| AGC | Auto/Manual |
| S/N Ratio | Above 50dB |
| White Balance | Auto, Indoor, Outdoor, One push, Manual, Auto Track |
| AE Control | Auto, Manual, Shutter Priority, Iris priority |
| Full View Camera | |
| Image Sensor | 1/2.8" CMOS |
| Effective Pixel | 2.14MP |
| White Balance | Auto |
| Exposure | Auto |
| Lens | Manual Fixed Focus |
| Field of View | Horizontal: 86°; Vertical: 52° |
| Focus | 2.4mm |
| Pan & Tilt | |
| Pan Range | -170° - +170° |
| Tilt Range | -30° - +90° |
| Pan Speed | 0.1° - +120°/s |
| Tilt Speed | 0.1° - +90°/s |
| Preset Number | 256 |
| Control Interface | RS-232/RS-485/USB3.0 |
| Ethernet | RJ45, 100M |
| Control Protocol | PELCO-D / VISCA / UVC |
| Network | |
| Image Resolution | 1920 x 1080 @ 60fps |
| Video Compression | H.264 |
| Audio Compression | AAC |
| Protocol | RTMP / RTSP / TCP / UDP / ONVIF |
| Dual stream | Support |
| Simultaneous Users | Up to 10 users |
| Video Interface | 3G-SDI / DVI-D / USB3.0 |
| Video Format | 1080p60/1080p50/1080p30/1080p25/1080i60/1080i50/720p60/720p50 |
| General | |
| Power Supply | DC12V |
| Working Temp | 0°C - +40°C |
| Storage Temp | -20°C - +60°C |
| Dimension | 243mm x 145mm x 263mm |
| Weight | 1.2KG |
| Color | Grey |
Dimensional Drawing
Video Link
Application
