Product Details:
Payment & Shipping Terms:
|
| Sensor: | Sony 1/2.8 5MP | Optical Zoom: | 20X |
|---|---|---|---|
| FOV: | 72.5° | Port: | USB 3.0 |
| Video System: | 192 X1080P60/50/30/25 | Preset: | 128 |
| Weight: | 1.25kg | ||
| High Light: | usb conference room camera,meeting room camer |
||

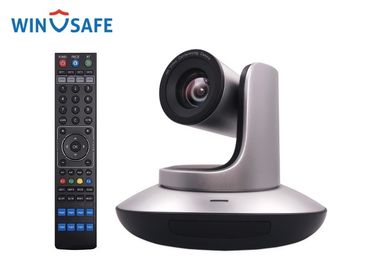

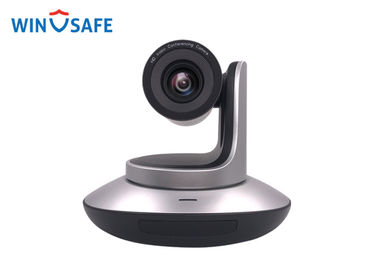

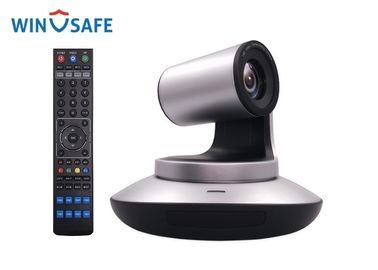

20X Optical Zoom USB3.0 PTZ Video Conference Camera WIth Remote Control
Feature
※ Captiure the action in high-def
UHV-20X-U3 is perfect for classroom, telemedicine cart, auditoriums, and large meeting rooms. A 20X optical zoom lens with field of view of 57.4 degree and 8 MP sensors delivers brilliant detail and clarity to remote participants and recording system.
※ Smooth Pan/ tilt /zoom mechanism
With viewing angle of 3.2° to 57.4°, the camera can see every details in the meeting room and focus on presents, panelists, and whiteboards with flexible pan and tilt controls.
※ Easy to set up and use
USB3.0 and USB2.0 make UHV-20X-U3 a breeze to deploy and use in simple working environment. Its USB connectivity easily applies to main applications in the market, like bluejeans, skype business, zoom, etc. Plus, the switch between DVI-I and HDMI meets different demands of customers.
※ Fast switch Speed
UHV-20X-U3 only needs 3 seconds to process switch between different video formats. You never wait too long to see the video.
Specification
| Model No. | UHV-20X-U3 | ||
| Sensor | 1/2.86 inch high quality, 8MP HD CMOS Sensor | ||
| Video System | DVI-I(HDMI) port | USB 3.0 port | USB 2.0 port |
| 1920x1080p60/50/30/25, 1920x1080i60/50, 1280x720p60/50/30/25 | 1920x1080p/60/50/30/25 1280x720p/60/50/30/25 |
1280x720p25 | |
| Zoom | 20x optical zoom + 12x digtial zoom | ||
| View Angle | 3.2°(wide) - 57.4°(tele) | ||
| SNR | Above 50dB | ||
| Focal Length | f=4.7(wide) - 94mm(tele) | ||
| Minimum Lux | 0.1 Lux | ||
| White Balance | Auto/Manual | ||
| Focus | Auto/Manual | ||
| Iris | Auto/Manual | ||
| Electronic Shutter | Auto/Manual | ||
| BLC | ON/OFF | ||
| Anti Flicker | 50Hz/60Hz/OFF | ||
| Pan Rotation Angle | - 170° - +170° | ||
| Tilt Rotation Angle | - 30° - + 90° | ||
| Pan Rotation Speed | 0° - 120° /s | ||
| Tilt Rotation Speed | 0° - 80° /s | ||
| Preset | 128 via RS232 control, 10 via remote controller | ||
| Control Port | RS232(Sony Visca), USB 3.0(UVC1.5 protocol) | ||
| Video Port | DVI-I, USB 3.0(YUY2 format) | ||
| Input Voltage | DC12V | ||
| OSD Menu | English/Spanish/Russia/Chinese | ||
| Dimension(W x H x W) | 220mm x 173mm x 117mm | ||
| Package | 320mm x 300mm x 310mm | ||
| Net Weight | 1.3kg | ||
Dimension
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
