| Pixel: | 2.14MP | Resolution: | 1080p60,1080p/30,1080i/60,720p/60,720p/30 |
|---|---|---|---|
| Lens: | F = 4.7mm - 94mm | Optical Zoom: | 20X |
| Digital Zoom: | 12X | Minimum Illumination: | 0.5Lux(Color), 0.1Lux(B/W) |
| Pan Range: | -170° - +170° | Tilt Range: | -30° - +90° |
| Highlight: | usb conference room camera,meeting room camer |
||

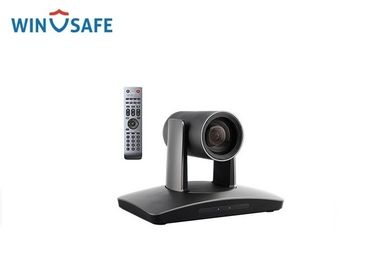

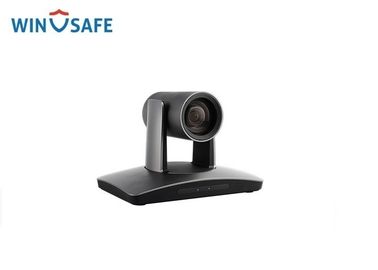

2.14MP 20X Optical Zoom 1080P DVI & SDI IP Video Conference PTZ Camera For Meeting Room
Feature
※ H.265 video compression,dual stream
※ Compatible with ONVIF,RTSP.RTMP protocols
※ 2.14MP,1/2.8" CMOS
※ With OSD menu,support image flip
※ Come with IR remote comtroller
※ Support standard VISCA & Pelco communication protocols
※ RS232IN/IR RS232OUT/RS485 control interface,support daisy chain,
※ Special mechanical PTZ driving system,ensure precise positioning
Specification
| Model No. | AMC-E220N |
| Image Sensor | 1/2.8" Exmor CMOS, 2.14MP |
| Video Standard(HD) | 1080p60,1080p/30,1080i/60,720p/60,720p/30 |
| Focal | f = 4.7mm - 94mm |
| IRIS | F1.6 - F3.5 |
| Zoom | Optical: 20X, Digital: 12X |
| Field of View | 59.5° - 2.9° |
| Focus | Auto, Manual, PTZ Trigger AF, One push |
| Min.Illumination | 0.5Lux(Color), 0.1Lux(B/W) |
| Shutter Speed | 1/1 - 1/10,000s |
| AGC | Auto/Manual |
| White Balance | Auto, Indoor, Outdoor, One push, Manual, Manual, Auto Track |
| AE Control | Auto, Manual, Shutter Priority, Iris Priority |
| S/N Ratio | Above 50dB |
| PTZ | |
| Pan Range | -170° - +170° |
| Tilt Range | -30° - +90° |
| Pan Speed | 0.1° - +120°/s |
| Tilt Speed | 0.1° - +80°/s |
| Preset Number | 256 |
| OSD | Yes |
| Image Flip | Yes |
| Network | |
| Max,Image Size | 1920x1080 |
| Frame Rate | HD:50Hz:50fps(1920x1080) 60Hz:60fps(1920x1080) |
| Video Compression | H.265,H.264 |
| Audio Compression | AAC |
| Protocol | HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF |
| Dual Stream | Support |
| Simultaneous Users | up to 10 users |
| Interface | |
| HD Video Output Interface | DVI-D,HD-SDI |
| Control Interface | RS-232IN/IR, RS-232OUT/RS-485 |
| Ethernet | RJ45,100M |
| General | |
| Control Protocol | VISCA and Support Daisy Chain, PELCO-D, PELCO-P |
| Address | 0 - 63 |
| Power Supply | DC12V |
| Working Temp | 0°C - +40°C |
| Storage Temp | -20°C - +60°C |
| Dimension | 243mm x 145mm x 163mm |
| Weight | 1.2KG |
| Color | Grey |
Demension drawing
Application
