Product Details:
Payment & Shipping Terms:
|
Effective Pixel: | 2.14MP | FOV: | 72.5°-6.3° |
---|---|---|---|
DVI Output: | Support | USB Output: | Support |
Digital Zoom: | 12X | Optical Zoom: | 12X |
Noise Redution: | 2D/3D | Resolution: | 1080P/720P |
High Light: | usb conference room camera,meeting room camer |

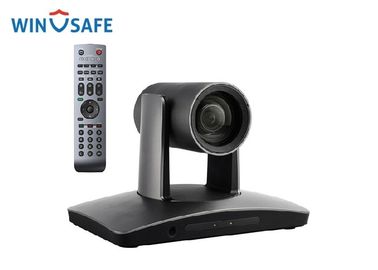

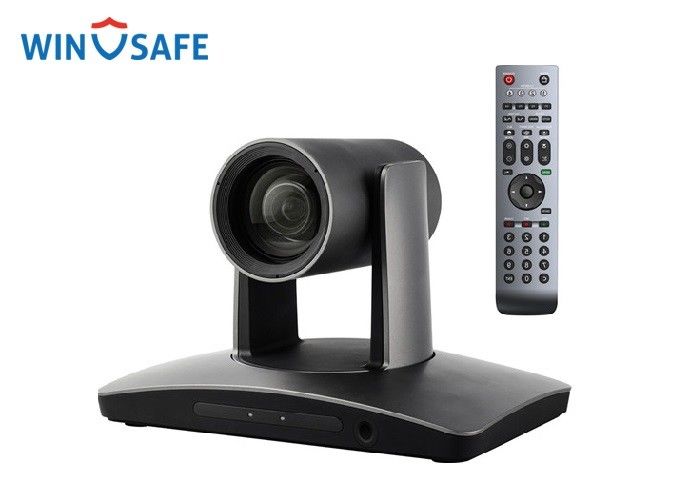

Professional 30fps HD DVI+USB Video Conferencing Equipment With Wall Mount For Conference Room
Features
※ UP to 72.5°FOV
※ USB 2.0 interface,MJPEG compressiom, RS232IN/IR RS232OUT/RS485 control interface,support daisy chain
※ Support standard UVC prorocol
※ With OSD menu,support image flip
※ Come with IR remote comtroller
※ Support standard VISCA & Pelco communication protocols
※ Special mechanical PTZ driving system,ensure precise positioning
※ Provide an extra DVI-D video interface
※ UP to 12X Optacal zoom,12X digital zoom
※ UP to 1080p30 HD video format, 2.14MP
Technical Specification
Model No. | AMC-E200U2 | AMC-E210U2 |
Image Sensor | 1/2.8" Exmor CMOS, 2.14MP | |
Video Standard(HD) | USB2.0 (MJPEG) 1080/30,720p/50,720p/30,640x480p/30 | |
Focal | f = 3.9mm -46.8mm | f=4.7mm-47mm |
IRIS | F1.6 - F2.8 | F1.6 - F3.0 |
Zoom | Optical: 12X, Digital: 12X | Optical: 10X |
Field of View | 72.5° - 6.3° | |
Focus | Auto, Manual, PTZ Trigger AF, One push | |
Min.Illumination | 0.5Lux(Color), 0.1Lux(B/W) | |
Shutter Speed | 1/1 - 1/10,000s | |
AGC | Auto/Manual | |
White Balance | Auto, Indoor, Outdoor, One push, Manual, Automatic Tracking,Sodium,Fluorescent | |
AE Control | Auto, Manual, Shutter Priority, Iris Priority,Intelligence | |
WDR | Yes | |
BLC | Yes | |
Noise reduction | 2D/3D | |
PTZ | ||
Pan Range | -170° - +170° | |
Tilt Range | -30° - +90° | |
Pan Speed | 0.1° - +120°/s | |
Tilt Speed | 0.1° - +80°/s | |
Preset Number | 256 | |
OSD | Yes | |
Image Flip | Yes | |
Interface | ||
Video Output | USB2.0,DVI-D | |
Control Interface | USB2.0,RS-232IN/IR, RS-232OUT/RS-485 | |
General | ||
Control Protocol | VISCA and Support Daisy Chain, PELCO-D, PELCO-P | |
Address | 0 - 63 | |
Power Supply | DC12V | |
Working Temp | 0°C - +40°C | |
Storage Temp | -20°C - +60°C | |
Dimension | 243mm x 145mm x 163mm | |
Weight | 1.2KG | |
Color | Grey |
Our services
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
