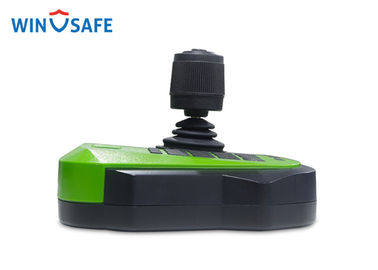

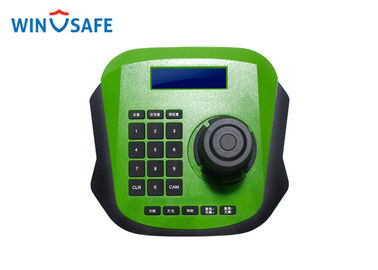

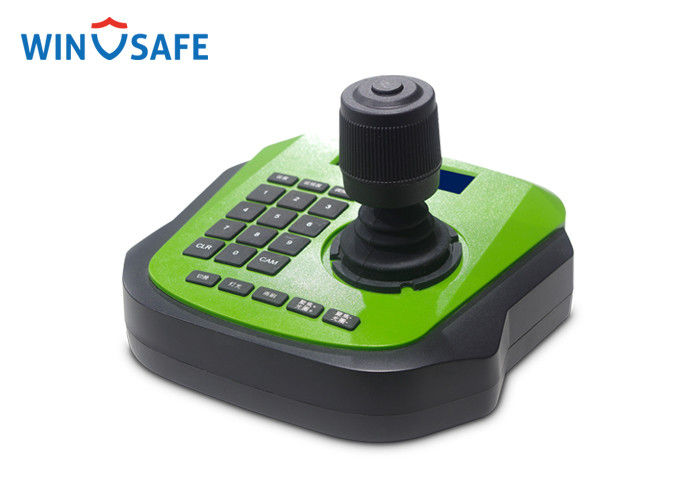

3 Axis Joystick PTZ Keyboard Controller

3 Axis Joystick PTZ Keyboard Controller
3 Axis Joystick PTZ Keyboard Controller 3 Axis Joystick PTZ Keyboard Controller 3 Axis Joystick PTZ Keyboard Controller

Large Image :  3 Axis Joystick PTZ Keyboard Controller

Product Details:

Place of Origin: CHINA
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: CKB-15IP

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: Neutral Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 8000pcs/month
Detailed Product Description
Model No.: CKB-15IP RS485: 1pc 3.81pin, TA,TB
RS232: 1pc DB9 Male Pin Protocols: Onvif 2.4
Dimension: 158mm X 150mm X 107mm Weight: 1.21kg
Certification: CE, RoHs Warranty Time: One Year
High Light:

ptz joystick controller


video camera controller


IP Network Mobile 3 Axis Joystick Vehicle PTZ Speed Dome Camera Keyboard Controller






IP Keyboard Controller can be applied to installed in Multi-IP PTZ camera places, such as school, hospital, hotel, factory, workshop, etc., realize the unified control of the Onvif protocol in the LAN



Product Introduction



It can effectively prevent from scratching. Using industrial-grade LCD, it can display excellent quality . Covered with a layer of rigid organic glass makes the characters more clearly. It supports Onvif protocol, high compatibility, extension IP keyboard controller adopt aluminum wire, high-end atmosphere, unique surface






※ Support Network control model, It has unique IP address.
※ Support ONVIF protocol, realize the control to PTZ.
※ Support Auto-search the ONVIF devices in LAN
※ Support Offline search & add devices.
※ Support Max 253pcs front-end equipments in one LAN.
※ Support many famous brand IP PTZ Coding, such as Hikvision, Dahua, TVT, Hanbang, XM, Jovision...etc
※ Support control IP PTZ to call and set Presets, zoom, focus, Iris, Tour etc.
※ Japan-Original 4D Joystick
※ LED displayer can display IP PTZ’s status info






Model No. CKB-15IP
Main Chip Grain GM8126
RS485 1pc 3.81pin, TA,TB
RS232 1pc DB9 male pin
Ethernet 1pc Ethernet, IEEE 802.11 b/g/n
Protocols Onvif 2.4
Power Supply DC12V ± 10%
Working Temperature 0°C - 55°C / 15°F - 131°F
Working Humidity 20% - 80%(frostless)
Storage Temperature -20°C - 70°C / 14°F - 140°F
Storage Humidity Below 90%RH(frostless)
Dimension 158 x 150 x 107(mm)
Weight 1.21kg
Certification CE, RoHs
Warranty Time One Year




Product Dimension(mm)



3 Axis Joystick PTZ Keyboard Controller 0



Our services
OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days

Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
