Product Details:
Payment & Shipping Terms:
|
| Comm. Interface: | RS - 232, RS - 485 | Baud Rate: | 2400bps, 4800bps, 9600bps,19200bps, 38400bps |
|---|---|---|---|
| Address: | 0 - 255 | Joystick: | 4 - Axis |
| Weight: | 0.5kg | Dimension: | 200mm X 120mm X 103mm |
| Display: | OLED | Protocol: | Pelco - D / P, VISCA |
| High Light: | ptz joystick controller,ptz ip camera controller |
||
Introduction

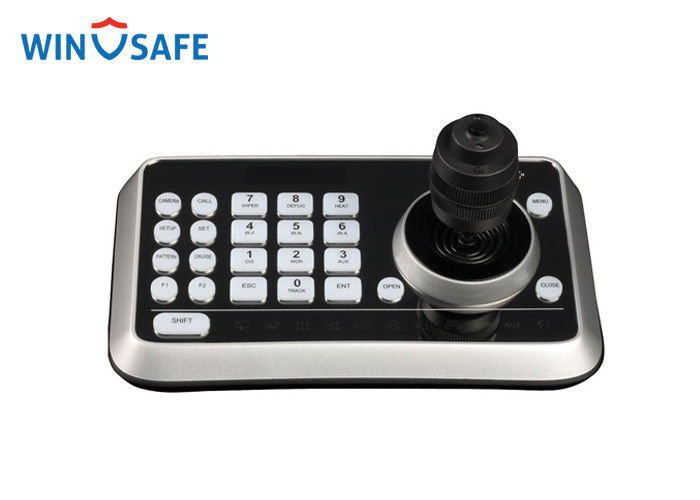

The mini keyboard controller is a full-function system keyboard,With features of ergonomic design, multi-function,high reliaility and easy operation, it is a perfect controller for vehicle speed PTZ cameras, video conference cameras, surveillance cameras and so on.
Feature
※ 4D joystick for pan/tilt/zoom/focus control,ergonomic design and excellent finishing
※ High brightness keys
※ Auto backlight keys
※ Shortcut keys customization
※ Sleep function
※ Batch program cameras in the systems
※ Multi-level password protection
※ Multi-baud rate and protocols
※ 256 address
※ Compact design with portable features
Specification
| Model No. | CKB02 |
| Comm.Interface | RS-485/RS232 |
| Protocol | Pelco-D,Pelco-P,VISCA |
| Baud Rate | 2400bps,4800bps,9600bps,19200bps,38400bps |
| Address | 0 ～255 |
| Joystick | 4-axis(Left/Right,Up/Down, Zoom in/Zoom out, Focus Near/Focus Far) |
| Display | OLED |
| Power | DC12V |
| Power Consumptin | <2W |
| Working Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C ~ +50°C |
| Relative Humidity | <90%(non-condensation) |
| Dimension | 200mm(L) x 120mm(W) x 103mm(H) |
| Net Weight | 0.5kg |
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days
Why choose us
Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
