The Max Resolution: | 3840x2106p30 | Min.Focus Distance: | Wide: 0.3m Tele: 1m |
---|---|---|---|
IP Protocol: | TCP/IP, HTTP,RTSP,RTMP, ONVIF, DHCP | POE: | Supported |
Dimension: | 220mm X 173mm X 190mm | Net Weight: | 1.25KGS ( 2.8LBS) |
Zoom: | 12x Optical Zoom + 2x Digital Zoom | Video Port: | HDMI / RJ45 / SDI / USB3.0 / USB2.0 |
High Light: | conference room video camera,usb conference room camera |

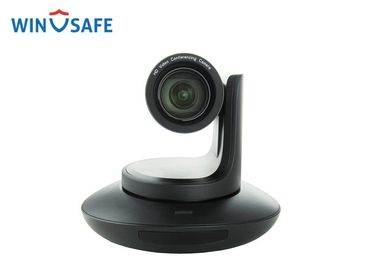

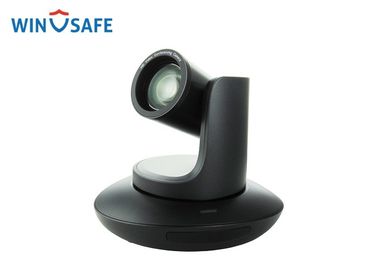

POE Supported 4K Ultra HD USB Video Conference Camera For Live Broadcast / Telehealth
As a professional 4K Ultra HD video camera, UHV -400H with IP / HDMI / SDI / USB3.0 can achieve the max definition of 3840 x 2160, ensuring it can realize excellent capacity of video conferencing and video security. It is a good idea to choose it as broadcast AV solution.
Advantages:
※ 1/2.5" 12MP Sensor, 12X optical zoom, FOV of 72.5°,4K wide angle optical lens
※ H.264, H.265 encoding supported, 4K video over IP
※ Variable output is covered, including IP, HDMI, SDI, USB, fitting for different demands
※ POE equipped, getting video, controlling and power supply with RJ 45 cable connected to POE
※ Support three protocols: Standard Sony Visca, Pelco-P, Pleco-D
※ Perfect tracking and focusing performance when zooming or moving
※ IR controller: IP address and potion can be set via OSD menu
Features:
※ 3840 x 2160 p30 Ultra HD video resolution,
※ wide angle range of PAN/Tilt, smooth PTZ mechanical design ,fluent pan/ tilt motor control
※ 128 presets and RS232 / 485 control as well as daisy chain supported
※ Sony Visca and Pelco P/D protocol
※ Image flip function, variable installation ways
※ Automally match the IP address, and can be modified by the controller
※ 2D / 3D noise reduction, WDR
※ BLC / Eletric shutter / Focus / Iris support two choice: auto / manual
※ Video interface: HDMI / IP / SDI / USB3.0
※ 12X optical zoom + 2X digital zoom
Technical Specification
Model No. | UHV-400-H | |||
Sensor | 1/2.5" inch, 12MP High Quality CMOS Sensor | |||
Video Format | HDMI | IP | SDI | USB3.0 |
3840X2160P30/25 1080p50/50/30/25 720p60/50/30/25 1080i60/50 |
Main Stream: 3840x21060p30 1920x1080p60 Sub Steam: 1280x720, 704x576 640x480, 352x288 |
1080p60/50/30/25 720p60/50/30/25 1080i60/50 |
1080p60/50/30/25 720p/60/50/30/25 |
|
USB 3.0 & USB 2.0 | ||||
1024X576p30 960x540p30 640x360p30 352x288p30 |
||||
Zoom | 12x optical zoom + 2x digital zoom | |||
View Angle | 6.3°(near) - 72.5°(far) | |||
F.No. | Wide: 1.84 Tele: 2.81 | |||
Min.Focus Distance | Wide: 0.3m Tele: 1m | |||
Preset | 10 via remote controller, 128 via serial port, preset precision:0.1° | |||
Rotation Angle | Pan: - 170° - +170°; Tilt: - 35° - + 90° | |||
Roation Angle | Pan: 0° - 120°/s; Tilt: 0° - 80 °/s | |||
Control Port | RS232/RS485/RJ45 | |||
Video Port | HDMI / RJ45 / SDI / USB3.0 / USB2.0 | |||
Network Speed | 1000M | |||
Noise Reduction | 2D & 3D | |||
SNR | More than 50dB | |||
Focal Length | f=3.92(near) - 47.32mm(far) | |||
Minimum Lux | 0.01Lux | |||
White Balance | Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor | |||
Anti Flicker | 50Hz/60Hz/OFF | |||
D/N Mode | Supported | |||
Gamma | Supported | |||
Mirror Image | Supported | |||
Pan Tilt Flip | Supported | |||
Iris | Auto/Manual | |||
Electric Shutter | Auto/Manual | |||
BLC | Auto/Manual | |||
Focus | Auto/Manual | |||
Video Encoding | H.264 / H.265 | |||
Bit Rate Control | Variable Bit Rate, Constant Bit Rate | |||
Video Bit Rate | 1024Kbps - 30720Kbps | |||
Frames | 50HZ: 1fps - 50fps 60HZ: 1fps - 60fps (3840x2160 max. 30f[s) | |||
IP Protocol | TCP/IP, HTTP,RTSP,RTMP, ONVIF, DHCP | |||
POE | Supported | |||
Input Voltage | DC12V, 2A | |||
Dimension | 220mm x 173mm x 190mm | |||
Net Weight | 1.25KGS ( 2.8LBS) |
Input/Output Interface
Dimensional Drawing(mm)
