Product Details:
Payment & Shipping Terms:
|
| LCD Screen: | 7" Inch TFT | Display Resolution: | 1024 X 600 |
|---|---|---|---|
| Joystick: | 4 Axis | Max. Video Display: | 4 Channel |
| Ethernet: | RJ45 100M/1000M Adaptive | Power Supply: | DC12V/2A |
| Certification: | CE,FCC, Rohs | Warranty Time: | 1 Year |
| High Light: | RS232 PTZ Camera Controller,RS485 PTZ Camera Controller,rs485 ptz controller |
||

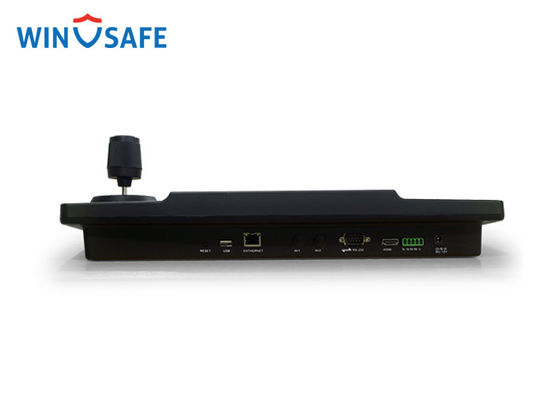

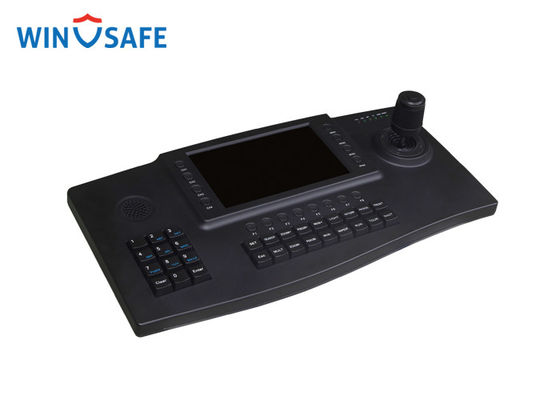

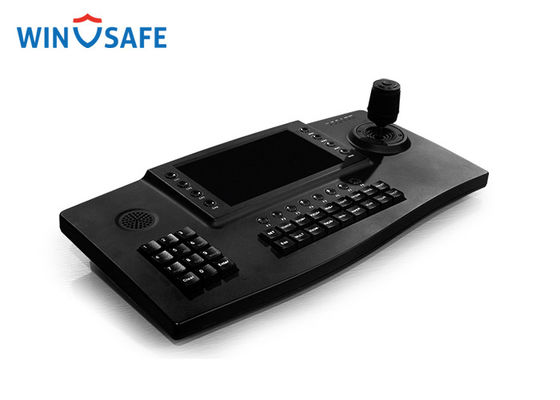

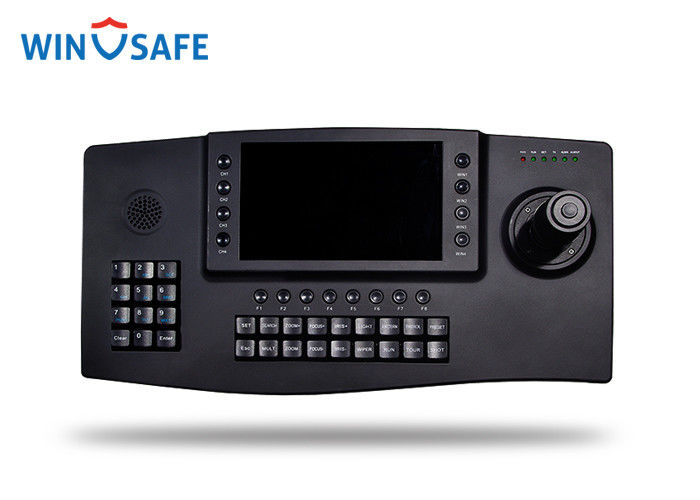

4X Axis ONVIF RS232 PTZ Camera Controller With 7 Inch Display
CKB-20IP is a network control keyboard work on platform, completely out of PC. Have a very strong control,which effectively fix the problem of current mouse click accurate, inconvenient . The network uses a 7 inch TFT LCD screen, 4 Axis joystick control, support network access IP PTZ, simple operation.
Features
※ Support Onvif protocol,support multi-factory IP ptz.
※ 7 inch TFT LCD, resolution 1024*600.
※ Support 4CH video display.
※ upport 1CH 1080p video image decoding.
※ Support HDMI output.
※ Support PTZ operation, support preset,patrol,pattern setting and calling.
※ Imported 4Axis vector transmission joystick.
※ The protocol can be customized.
Technical Specification
| Model No. | CKB-20IP |
| RS485 | 1pcs 3.81 terminal spacing, TA. TB(not enabled) |
| RS232 | DB9 mail head |
| Ethernet | 1pcs Ethernet port RJ45 100M/1000M adaptive |
| USB Port | 1pcs USB2.0 |
| Display | 7 inch TFT LCD, resolution 1024*600 |
| Protocol | Onvif, others can be customized |
| Joystick | 4 Axis |
| LCD Screen | 7 inch TFT |
| Working Temperature | 0°C - 55°C / 14°F - 131°F |
| Working Humidity | 20% - 80% frostless |
| Storage Temperature | -10°C - 60°C / 14°F - 131°F |
| Storage Humidity | 0 - 90% frostless |
| Dimension | 490 x 265 x 170(mm) |
| Power Supply | DC12V/2A |
| Weight | 2.1kg |
| Certification | CE, FCC, RoHs |
| Warranty Time | One Year |
Application
It can be used to someplace which install network dome camera, such as: schools, hospitals, hotels, residential areas, factories, workshops, etc., to achieve a unified LAN onvif control device.
Product Dimension(mm)
Q&A
1. Q: Can this IP PTZ keyboard controller control IP camera?
A: Yes, it can control IP PTZ dome camera, not to control fixed camera.
2. Q: How long could I receive IP joystick keyborad controller?
A: It depends on storage and shipping express company. Sometimes the controller is not in stock, it needs about seven work days to make. As for shipping time, we can't control the express company, this is their job.
3. Q: How large is this Network keyboard controller's display screen?
A: It's 7 inch.
4. Q: How about its display screen's resolution?
A: 1024*600.
