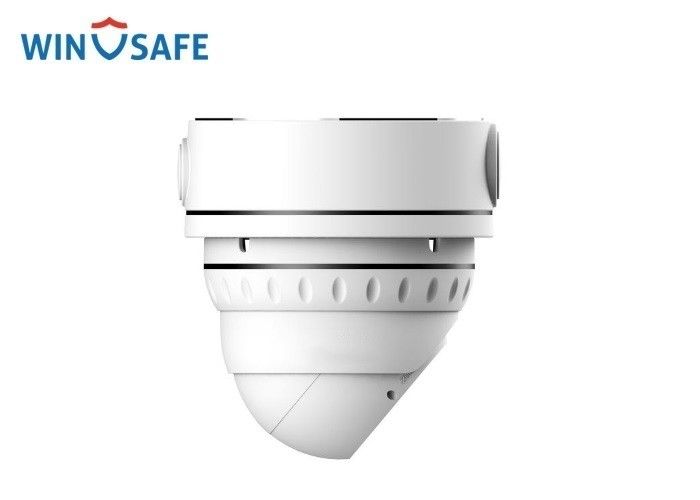

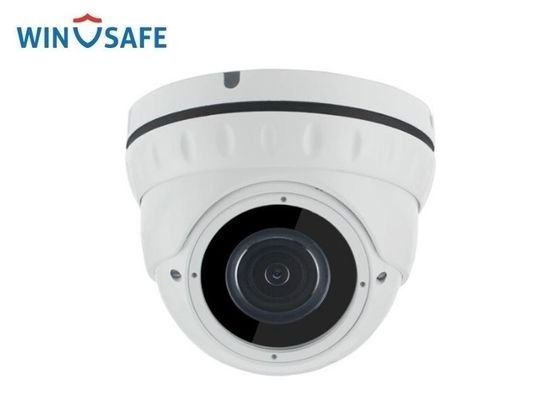

5MP Waterproof Full HD IP Camera , Varifocal Dome Camera For Office / Building

5MP Waterproof Full HD IP Camera , Varifocal Dome Camera For Office / Building
5MP Waterproof Full HD IP Camera , Varifocal Dome Camera For Office / Building 5MP Waterproof Full HD IP Camera , Varifocal Dome Camera For Office / Building

Large Image :  5MP Waterproof Full HD IP Camera , Varifocal Dome Camera For Office / Building

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE, FCC
Model Number: WS-IRDNTSV500

Payment & Shipping Terms:

Minimum Order Quantity: 1piece
Packaging Details: Neutral packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Resolution: 1080P Pixel: 5MP
Image Sensor: OV CMOS Sensor Focus Length: 2.8-12mm
Lens Type: Fixed IR Distance: 30 Meters
Infrared LED: 14µ X 24PCS Onvif 2.4: Support
High Light:

hd ip security camera

,

ir ip camera

5MP Outdoor Varifocal Dome Camera IP IR 30m Waterproof and Vandalproof IP66 for Office / House / Building



Feature



※ 1/2.7"OV High-resolution CMOS Sensor
※ H.264/H.264+/H.265/H.265+ Compression Method
※ 2.8-12mm Varifocal Lens
※ IP66 Outdoor Metal Case
※ 2.0MP, 1080P, PAL/NTSC
※ Support internal POE, WDR, IR Distance 30m Max.
※ Remote control and viewing by Android, iPhone, iPad
※ Onvif 2.4 support, variable network protocol compatiable



Specification



Model No. WS-IRDNTSV500
Camera
Image Sensor 1/2.7" OV High-resolution CMOS Sensor
Resolution 5MP 1080P
Effective Pixels 2688(H)*1944(V)
Compression H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
TV System PAL/NTSC
Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
S/N Ratio ≥52dB
Scanning System Progressive
Video Output Network
Reset Button Optional
Day/Night Color/ B&W (IR-CUT )
Image Config Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)
Starlight /
Corridor Pattern Support
Defog Mode Support
ROI /
BLC Support
HDR /
WDR Support
Motion Detection Support
Privacy Masking 3 Rectangular Zone
Recording Mode NVR/NAS/CMS/Web
Lens
Pixels 5MP
Focus Length 2.8-12mm
Focus Control Varifocal
Lens Type Fixed
Night Vision
Infrared LED 14µ x 24PCS
Infrared Distance 30M
IR Status Auto Control
IR Power On Auto Control
Network
Ethernet RJ-45 (10/100Base-T)
Protocol TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
ONVIF Support ONVIF 2.4
P2P YES, Support QR Code
POE Optional, Support IEEE 802.3af
Video Delay 0.3S (Within the Lan)
Main Stream 1 2592*1944@20fp 2560*1920@20fp
Main Stream 2 2560*1440@25fp
Main Stream 3 1920*1080@30fps 1280*720@30fps
Sub Stream 1 720*480@15fps 720*480@30fps
Sub Stream 2 /
Sub Stream 3 /
Tri Stream 352*288@20fps
IE Brower IE8-11, Google Chrome, Firefox, Safari, Mac Safari
Smart Phone iPhone, iPad, Android, Android Pad
Interface
Audio Optional
Alarm /
SD Card Slot Optional, Support Max 128GB
RS485 /
General
Housing Metal , IP66
Anti-cut Bracket NO
IR Cut Filter YES
Operation Temperature -20℃ ~ +60℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
Language Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean,
Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands
Power Source DC12V±10%, 850mA
Dimension φ131 x 93(H)mm
Weight 800g



Dimension drawing



5MP Waterproof Full HD IP Camera , Varifocal Dome Camera For Office / Building 0
