60° 30X SDI DVI-I Video Conferencing Camera For AV Solution

60° 30X SDI DVI-I Video Conferencing Camera For AV Solution
60° 30X SDI DVI-I Video Conferencing Camera For AV Solution 60° 30X SDI DVI-I Video Conferencing Camera For AV Solution 60° 30X SDI DVI-I Video Conferencing Camera For AV Solution 60° 30X SDI DVI-I Video Conferencing Camera For AV Solution

Large Image :  60° 30X SDI DVI-I Video Conferencing Camera For AV Solution

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE, FCC
Model Number: UHV-30X-S-R

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Neutral packaging
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Optical Zoom: 30X DVI-I Video: Support
HDMI Video: Support 3G-SDI Video: Support
View Angle: 60° Min. Lux: 0.005 Lux
Remote Controller: Support Input Voltage: DV12V
High Light:

30X Video Conferencing Camera

,

SDI DVI-I Video Conferencing Camera

,

60° Ptz Conference Camera

Black 1080P@59.94 30X SDI & DVI-I Video Conferencing Camera For Live Streaming Solution / AV Solution

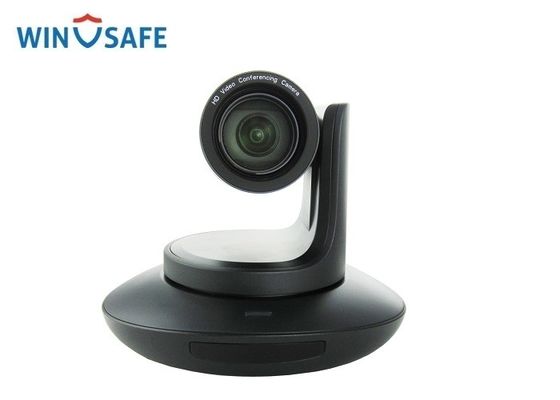

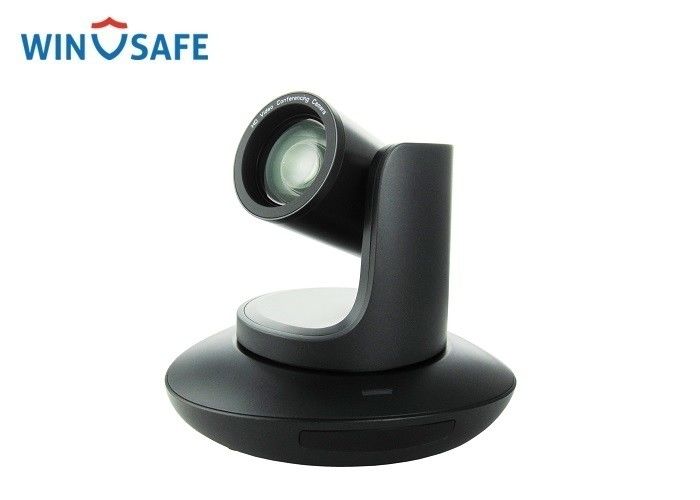

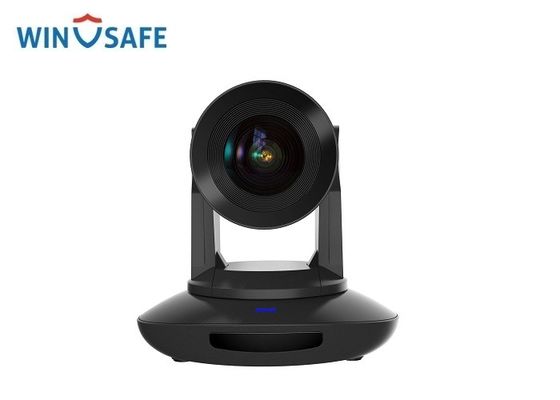

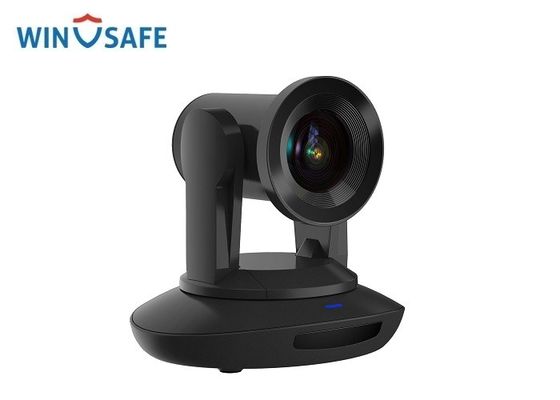

WINSAFE UHV-30X-S-R is a real broadcast level 30x zoom 3G-SDI&HDMI full HD PTZ Video Camera, very sensitive to low lux, particularly used for large space A/V system, such as auditorium, parliament, house of worship, court room, legislative space and broadcast video prodution etc.



Feature



※ Adopt advanced broadcast level ISP, Sony 1/1.8" 12MP sensor, to provide crystal clear, noiseless and realistic color with full details even at completely low lux
condition
※ Broadcast level video steaming 1080p59.94/50, 1080i/50 via 3G-SDI and DVI-I(HDMI) synchronously
※ 30x wide range optical zoom, with 60 degree FOV.
※ Smart and compact mechanism, smooth and silent PTZ movement
※ RS232, RS485 control and field firmware update
※ Precise and fast focus, support 128 presets
※ 7 cameras daisy chain supported
※ Available to install on desk, monitor, tripod or up-side down in-ceiling
※ Multi language available: Chinese, English, Spanish, Russia



Technical Specification



Model No. UHV-30X-S-R
Camera
Sensor 1/1.8" inch high quality 12MP HD CMOS sensor
Frame Rate DVI-I(HDMI) port 3G-SDI port
1080p59.94/50;1080p29.97/25
1080i59.94/50
720p29.97/25
1080p59.94/50;1080p29.97/25
1080i59.94/50
720p59.94/50
720p29.97/25
Video Format YUV
Lens Zoom 30X optical zoom
Focal Length f=4.7(wide) - 135mm(tele)
View Angle 3°(wide) - 60°(tele)
Noise Reduction 2D/3D
Minimum Lux 0.005Lux(DDS ON)
White Balance Auto/Manual
Focus Auto/Manual
Iris Auto/Manual
Electronic Shutter Auto/Manual
BLC Auto/Manual
Mechanism 0.2Lux(Day), 0.1Lux(Night), 0.005Lux(DSS on)
Pan Rotation Angle -170° - + 170°
Tilt Rotation Angle -35° - +90°
Pan Rotation Speed 0° - 120°/s
Tilt Rotation Speed 0 - 80°/s
Preset 128 presets via RS232, 10 presets via remote controller
Control RS232/RS485/Remote Controller
Video Port DVI-I, 3G-SDI
Input voltage DC12V
Camera Dimension 220mm x 173mm x 117mm
Package Dimention 32cm x 30cm x 31cm
Package Content Camera, Remote Controller, RS232 cable, Power Supply
