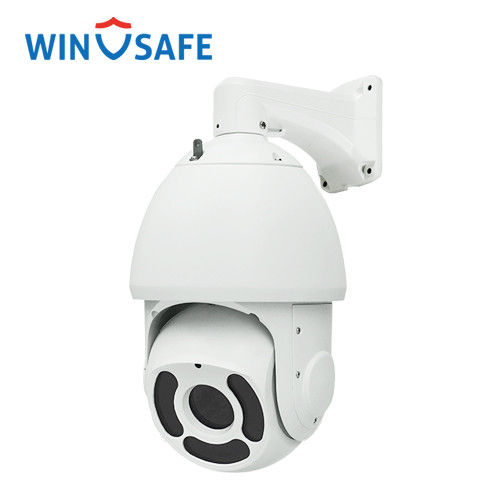

CMOS Sensor Pan Tilt Zoom Security Camera Systems Support Dual Stream

CMOS Sensor Pan Tilt Zoom Security Camera Systems Support Dual Stream
CMOS Sensor Pan Tilt Zoom Security Camera Systems Support Dual Stream

Large Image :  CMOS Sensor Pan Tilt Zoom Security Camera Systems Support Dual Stream

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: WS-63BIRW/P-200

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Neutral Packing
Delivery Time: 3-7work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000/month
Detailed Product Description
Image Sensor: 1/2.7" 2.0M Pixel CMOS OV2715 Optical Zoom: 4.7 - 84.6mm
F-Number: F1.2 - F2.8 Power Supply: DC 12V/2A
Snow Shutter: Support Dual Stream: Support
Max.image Size: 1920 X 1080 Lead Time: 3-7work Days
High Light:

analog dome camera


analog surveillance camera

CMOS Sensor Pan Tilt Zoom Security Camera Systems Support Dual Stream


1. IR Function
1) 9PCS high-power infrared light, turn divided into two groups , no flashlight effect , IR distance 100-120m.
2) Adopt the function of matching the IR to optical zoom of the module, make the image more clear.
3) Adopt constant current drive for the IR light, extend the lift of the IR light.


2. System Function
1) Adopt high-performance 1/2.7" 2.0M Pixel CMOS OV2715 sensor,2.0MegaPixels,resolution achieve 1920x1080.
2)Precision motor-driven,keen responsive,smoothly operation,the precision deviation less than 0.1 degree, the image does not have any vibration under any speed.
3) Support Hikvision 3D intelligent positioning function, can realize tracking and zooming out function when work with DVR.
4) Support data not lost when power off.
5) Support graphic menu, operation prompt facility, PTZ position display.
6) Adopt advanced Heating equipment.
7) Support Protocol automatically diagnosis(Pelco-D, Pelco-P, Hikvision, Dahua), Baud rate automatically adjust 2400bps,4800bps,9600bps.
8) Support lightning protection, anti-surge, anti-surge function, IP66.

3. Zoom module function
1) 18X optical zoom, out-band auto focus performance,F1.6--F2.8 Iris.
2) Support auto iris,electronic shutter,auto white balance and black compensation
3) Support low illumination,0.05Lux/F1.4(color),0.01Lux/F1.4(white),0 Lux with IR
4) Support 3D digital noise reduction,digital WDR function.
5) Effective pixels 2.0 million pixels (1080P)


4. Network function
1) Adopt high-performance Hisilicon platform, stable and reliable performance.
2) Via IE browser and client software to view the image and control it.
3) Support dual-stream, H.264/MJPEG, multi-level video quality configuration, and real-time vide output 1080P.
4) Support self-adaptive 10/100m and multi-protocols:


5. PTZ control
1) 220°endless pan range and 75°tilt range, support auto-flip, non-surveillance blind area
2) Pan control speed 0.6°~220°/s, tilt control speed 0.8~75°/s
3) Support 220 preset, 8 patrols, each patrol can contain up to 32 presets
4) 4 patterns, can totally record up to 10 minus.


Model No. WS-63BIRW/P-200
Zoom Module Image Sensor 1/2.7" 2.0M Pixel CMOS OV2715
Effective Pixel 2.0 Megapixel
Frame Rate 50HZ: 25fps(1280 x 720);60Hz: 30fps(1920 x 1080)
Minimum illumination Color: 0.0.5Lux @ (F1.6, AGC ON), B/W: 0.0005Lux @ (F1.6, AGC ON), 0 Lux with IR
Horizontal Resolution Above 1800TVL
White Balance Auto / Mnual / Auto-Tracking / Outdoor / Indoor / fluorescent lamp / sodium lamp
Gain Control Auto / Manual
Image Overturn / Mirror
Snow Shutter Support
Snow exposal Support
Exposure Mode Auto / Manual
S/N Above 50dB (AGC OFF, Weight ON)
Noise Grade 0/1/2/3/4/5
Iris Control Manual / Auto
Electronic Shutter 1/1 - 1/30,000s
Scan system Progressive Scanning
Synchronization Inner-synchronization
Day/Night Mode Support Auto ICR color to black
Focus Mode Auto/Manual/One time auto focus
Focus Control Auto/Manual
Focus Speed 3S(optical, wide-tele)
Lens Intiaiztion Built - in
Optical Zoom 4.7 - 84.6mm, 18x optical
Min Focus distance 100mm - 1000mm
Horizontal Range 68.5 ° - 4.2°
F-Number F1.2 - F2.8
Function IR Distance 100-120M
IR Angle Three group angle adjustable to zoom module
Pan Speed 0.6° - 120°/s
Tilt Speed 0.8° - 75°/s
Tilt Range 0 - 90°, auto - flip 180°
Manual Speed High, Medium, low(adjustable)
Proportional Zoom Support
Number of Preset 220
Partrol 8, each patrol can add 32 preset
Track Scan 4 group, each group can record 100 action
Scan between two presets Support
Park Action Support
Area - Limit Support
Network Max.image size 1920 x 1080
Video Compression H.264/MJPEG
Network Protocol IPv4 / IPv6 / HTTP / HTTPS / 802.1 / Qos / FTP / SMTP /UPnP / SNMP / DNS / DDNS / NTP / RTSP / RTP / TCP/IP / DHCP / PPPoE
Dual Stream Supoprt
User Premission Max.32 users(3 level: administrator, operator, only browser)
Safe mode Authorized ID and Password
Network Interface Built - in RJ45 port, Support 10M/100M
Mobile Support Android, IOS smart phone
Client HCMS
Business Function Support WEB configure, support OSB, support real-time video transfer, consinuous motion, support JEPG screen-shot, support remote access platform by clent software
Input/Output Menu English
Others PTZ Control Protocol IP Protocol
Power Supply DC12V/4A
Power Consumption MAX.10W(Day) ; MAX.30W(Night)
Working Temperature/Humidity -20°C - +60°C, Below 90%RH(frostless)
Protection Grade TVS3000V Lightning Protection, Surge Protection and Voltage Transient Protection, Weather Proof IP66
Package Size(mm) 300mm x 300mm x 470mm
Weight(kg) 6.5kg
