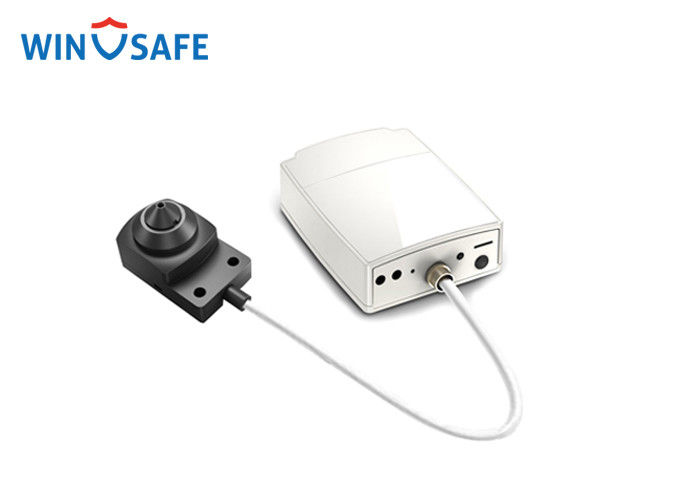

DC12 Volt 1080P 1.4MP Tiny Hidden Cameras For Home Wireless / Car

DC12 Volt 1080P 1.4MP Tiny Hidden Cameras For Home Wireless / Car
DC12 Volt 1080P 1.4MP Tiny Hidden Cameras For Home Wireless / Car

Large Image :  DC12 Volt 1080P 1.4MP Tiny Hidden Cameras For Home Wireless / Car

Product Details:

Place of Origin: SHENZHEN
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: WS-IP315

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: Neutral Packaging
Delivery Time: 3-7work
Payment Terms: L/C, T/T
Detailed Product Description
Pinwhole: 3.7mm/4.5mm Effective Pixel: 1280(H) X 1024(V)
Two Way Audio: Support PC: IE 6.0 Above, Firefox, Google Chrome
Mobile Phone: Support Windows Mobile, Symbian, IPhone, Android System Lead Time: 3-7work Days
Max.User Access: 5 Users Power Supplier: DC12V
POE: Can Choice Use: Indoor
High Light:

hidden surveillance camera


secret security camera


DC12 Volt 1080P 1.4MP Tiny Hidden Cameras For Home Wireless / Car





※ 1/3" SONY Exmor Sensor Progressive Scan,1.3MP;
※ Support static IP(IP address,subnet mask,gateway and DNS setting available);
※ Streaming switchable(Audio streaming or video streaming);
※ Support Image adjustable(Brightness, contrast, hue, saturation);
※ Support VBR nad CBR, VBR setting;
※ 3D DNR, D-WDR, Antifog, Antistemble;
※ PoE optional;
※ 5 user IE viewing in the same time,4 mask zone;
※ 4CH multiscreen play back in the same time.






Model WS-IP315
SOC Hi3518A
Pick-up Device 1/3" Sony progressive scan EXMOR CMOS,1.3Megapixel
Effective Pixel 1280(H) x 1024(V)
Optical Lens Interfaces Pinwhole 3.7mm/4.5mm
Iris N/A
Focal Length N/A
Audio Talkback 1 CH 3.5mm AV interface
Audio Output 1 CH 3.5mm AV interface
Network Interface Lan 10/100M BASE-TX, RJ-45 connector
RS485 RS485 port optional
Alarm I/O 1ch Alarm input or 1ch alarm output
Memory Slot Micro SD Card slot, Max 32GB
Audio & Video encoding
Video Compression H.264 Main Profile; MJPEG Baseline
Resolution Main Stream 1280*1024/1280*960/1280*720; 1-25fps(Adjust)
Mub Stream 720*576/640*480/640*352/352*288/320*240;1-25fps(Adjust)
Video Bitrate 30Kbps -- 16Mbps, Supports CBR/VBR
Title OSD Settings Support channel name, date, and video stream information overlay
OSD location is adjustable
Privacy Mask 4 configurable regions
Image Orientation Image Flip and Mirror
Auto Image Control Functions Auto Exposure Control(AEC); Auto White Balance(AWB);Auto Gain Control(AGC)
Manual Image Controls Color saturation, hue, gamma, sharpness(edge enhancement)
Others Anti Fogging/Anti Trembling/IR Detection/IRIS
Audio Compression G.711A/G.711I/G.726
Two Way Audio Support
Date Transmission and Storage
Date Storage Video and Image
Recording Recording set up to record by Auto or manual(motion and alarm trigger, schedule)
Alarm Output FTP, E-Mail
Network Protocol



Wireless product(-W) N/A
ONVIF protocol Support 2.2 version
Remote View PC IE 6.0 Above, firefox, google chrome
Mobile Phone Support Windows Mobile, Symbian, iPhone, Android system
Max.User Access 5 users
General Parameters
Environmental Casing Aluminum alloy housing, Indoor Use
Installation Different bracket optional
Operation Temp. - 10 °C -- 50°C
Operation Humidity 0% -- 85%RH
Power Supplier DC12V
POE Optional
Power Consumption
Dimension L3.8mm x W2.3mm x H2.3mm(Camera) & L90mm x L110mm x H30mm(function box)
Weight 350g



Our services
OEM service : we can offer OEM and ODM services for our clients
Delivery lead time : sample order in 3-5 working days, bulk order in 7-15 working days

Quality warranty

2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea


MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
