Product Details:
Payment & Shipping Terms:
|
| Pick-Up Device: | 1/3" Sony Double Scanning CCD | Scanning Area: | 4.9mm(H) X 3.7mm(V) |
|---|---|---|---|
| TV System: | PAL/NTSC | Min.illumination: | 0.01Lux |
| S/N Ratio: | More Than 50dB | BLC: | OFF/HLC |
| Lens Mount: | 3.7mm | Weight: | 50g |
| High Light: | hidden surveillance camera,secret security camera |
||

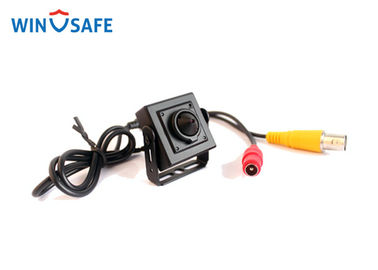

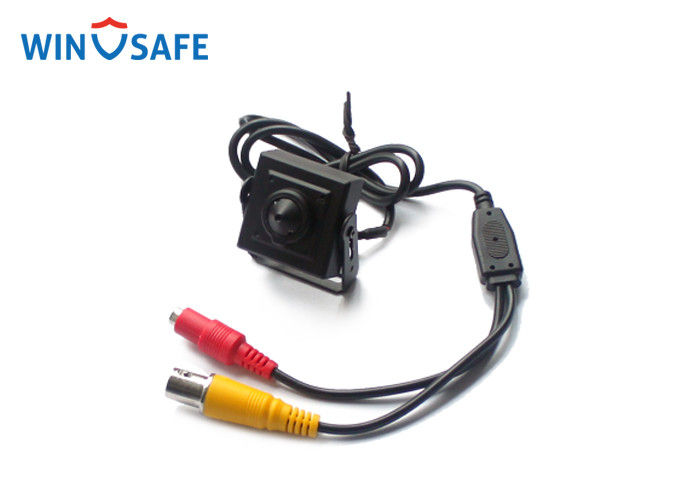

Digital Low Lux Mini Hidden Camera With 1/3" SONY Double Scanning CCD
Features
※ 1/3" SONY Double Scanning CCD
※ 700TVL, Min.illumination 0.01Lux
※ Digital Time Lapse
※ 3.7mm lens, MIC
※ DC 12V ± 10%
Technical Specification
| Model No. | WS-HD009 |
| Pick-up Device | 1/3" SONY Double Scanning CCD |
| Scanning Area | 4.9mm(H) x 3.7mm(V) |
| Picture Element | PAL: 976(H) x 582(V); NTSC: 976(H) x 484(V) |
| TV System | PAL/NTSC |
| Horizontal Resolution | 700TVL |
| Min.illumination | 0.01Lux |
| S/N ratio | More than 50dB |
| Electronics Shutter | PAL: 1/50s - 1/10,000s; NTSC:1/60s - 1/10,000s |
| BLC | OFF/HLC |
| Synchronous Sytem | INT |
| Video Output | 1.0Vp-p, 75Ω, BNC Connector |
| Lens Mount | 3.7mm |
| Day/Night | Color to B&W |
| Operating Temperature | - 10°C - +50°C |
| Voltage | DC12V ± 10% |
| Power Consumption | 110mA |
| Measure | L37.4 x W31.02 x H19mm |
| Weight | 50g |
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
Why choose us
Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
Contact Person: Nancy
