Product Details:
Payment & Shipping Terms:
|
| Video Inferface: | USB 3.0 / DVI-I / USB 3.0 | Dual Stream: | Support |
|---|---|---|---|
| Video Compression: | H.264 | Audio Compression: | AAC |
| Tracking Camera Lens: | F=3.9mm - 46.8mm | Optical Zoom: | 20X |
| Digital Zoom: | 2.4mm | Field Of Full View Camera: | Horizontal:86°; Vertical:52° |
| High Light: | conference room video camera,meeting room camer |
||

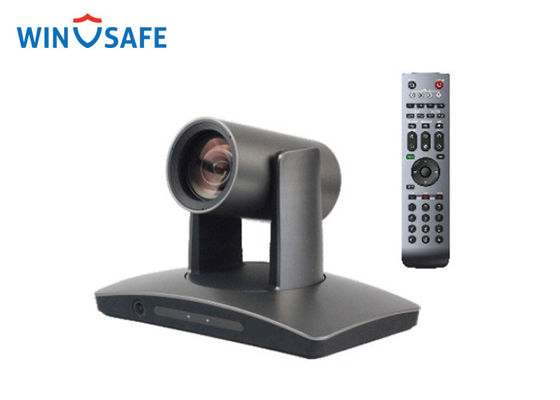

SDI & DVI-I USB Video Conference PTZ Camera With Lecturer Tracking Function & TF Card Storage
The system supports to manage its tracking and other features through ethernet, connection,configuration and communication have never been so easy. It supports standard VISCA & Pelco D protocols to coummunicate eamlessly with your control device.
This smart lecturer tracking and board writing detection system consists of a USB HD lecturer tracking camera(USB3.0, DVI, SDI supported) and an IP board writing detecting sensor, configuration and installation of the system has never been so easy and effective; unique performance of the system is that, after the board writing detecting sensor detects writing actions on the board, it triggers the lecturer tracking camera to automatically move to the pre-defined board position and start tracking lecturer there. If undetected, the lecturer tracking camera can either keep tracking lecturer to return to pre-defined position and start tracking there.
USB 3.0
The lecturer tracking camera comes with USB3.0 and many other video interfaces. Giving it more flexibility to work with different recording solutions.
Precise lock and track capability
Tracking is based on both face detection and motion detection technology, whith ensures smooth and precise lock & track performance even in comprehensive scenarios.
Unmanned and standalone tracking
Tracking performance is realized by the system itself, both its two lens manage the tracking algorithm, there is no need to have manual operation or have extra devices / sensors to assist tracking
Smart tracking performance
The system does not track on minor movements, it have tilt motion and auto zoom function to keep tracking lecturer properly once lecturer moves closer / farther, once object is lost, the system moves back to pre-defined position and keeps tracking at the position.
Board Writing triggers tracking
When board writing detecting camera detects sensor actions, it triggers the lecturer tracking camera to automatically move to pre-defined board position and start tracking lecturer there. If undetected, tracking camera can either stay or return to pre-defined position
Easy connection, configuration and communication
LTC2-A1201/USB 3.0 Lecturer Tracking PTZ Camera Specification
| Model No. | LTC2-A1202NV2 |
| Tracking Camera | |
| Image Sensor | 1/2.8" Exmor CMOS, 2.14MP |
| Lens | f=3.9mm-46.8mm; F1.6-F2.8 |
| Zoom | Optical:20X, Digital:12X |
| Field of View | 72.5° - 6.3° |
| Focus | Auto, Manual, PTZ Trigger AF, One Push |
| Mini.illumination | 0.5Lux(Color), 0.1Lux(B/W) |
| Shutter Speed | 1/1 - 1/10,000s |
| Gain | Auto / Manual |
| White Balance | Auto,Indoor, Outdoor, One Push, Manual, Automatic Tracking |
| AE Control | Auto, Manual, Shutter Priority, Iris Priority |
| S/N Ratio | Above 50dB |
| Full View Camera | |
| Image Sensor | 1/2.8" Exmor CMOS |
| Effective Pixel | 2.15MP |
| White Balance | Auto |
| Exposure | Auto |
| Field of View | Horizontal:86°; Vertical"52° |
| Lens | 2.4mm |
| PTZ | |
| Pan/Tilt Angle Range | Pan: -170° - +170° ; Tilt: -30° - +90° |
| Pan/Tilt Speed | Pan: 0.1° - +120°/s ; Tilt: 0.1° - +90°/s |
| Preset Number | 256 |
| Control Interface | RS232/RS485/USB3.0 |
| Ethernet | RJ45,100M |
| Control Protocol | PELCO-D / VISCA / UVC |
| Network | |
| Image Resolution | 1920x1080 @ 60fps |
| Frame Rate | 1080P60/1080P50/1080P30/108025 1080I60/1080I50/720P60/720P50 |
| Video Compression | H.264 |
| Audio Compression | AAC |
| Protocol | ONVIF / RTSP / RTMP / TCP / UDP |
| Dual Stream | Support |
| Video Interface | 3G-SDI / DVI-I / USB3.0 |
| General | |
| Power Supply | DC12V |
| Power Consumption | ＜20W |
| Working Temp | 0°C - +40°C |
| Storage Temp | -20°C - +60°C |
| Dimension | 243mm(L) x 245mm(W) x 163mm(H) |
| Weight | 1.2KG |
| Color | Grey |
Board Writing Detecting System/BLS-200
| Model No. | BLS-200 |
| Image Sensor | 1/3" Exmor CMOS |
| Effective Pixel | 4.0MP(2560x1440) |
| Min.illumination | 1Lux @ F2.0 |
| S/N Ratio | Above 50dB |
| Gain | Auto/Manual |
| Shutter Speed | 1/30 - 1/10,000s |
| White Balance | Auto/Manual |
| Focal | 2.4mm |
| View Angle | 90°(wide) - 50°(tele) |
| Aperture | F2.0 |
| Video Compression | H.264 |
| Kbps | 32Kbps-8Mbps |
| Video Frame Rate | 720p30, 1080p30 |
| Ethenet | 10-100M, Support POE |
| Power Supply | DC12V, POE |
| Power Consumption | Below5W |
| Working Temp | 0°C - +40°C |
| Humidity | Below 90%(No condensation) |
| Dimension | φ93mm * 81mm |
| Weight | 0.33kg |
LTC-A1202 Dimension
LTC-A1202 Bracket
