Product Details:
Payment & Shipping Terms:
|
| Field Of View: | 35 Degree | Distance: | 30-50cm |
|---|---|---|---|
| Accuracy: | ±0.2°C ~ ±0.5°C | Operation Temperature: | 15 To 30°C |
| Storage Temperature: | -20 To 70°C | Detection Speed: | 20ms |
| Tracking Speed: | 5ms | Face Database Size: | Up To 20,000 |
| High Light: | 50cm Face Recognition Terminal Camera,20ms Face Recognition Terminal Camera,Dynamic Thermometry Terminal Camera |
||

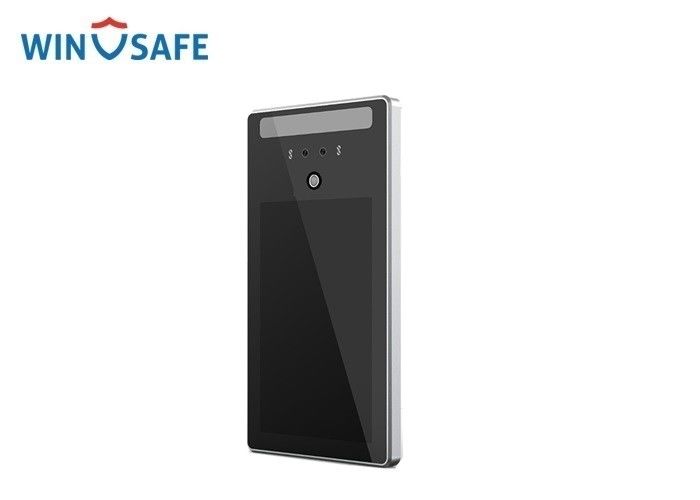

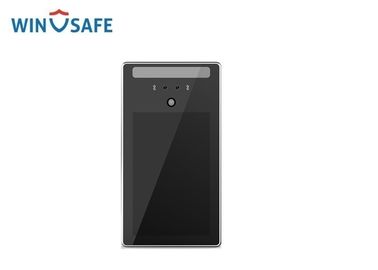

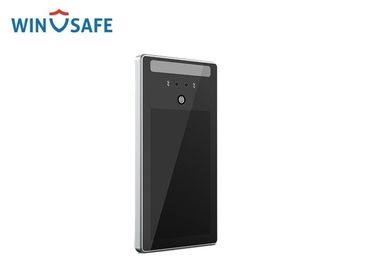

Dynamic Face Recognition and Thermometry Terminal Camera For School
Body Temperature Measurement Features
Using 8x8 Thermopile to capture the temperature of human body
Using 23Bit Cortex M0+48Mhz for main processor
Themopile Specification
FOV: 35 degree
Distance: 30-50cm(The error will be relative to distance)
Temperature range of human being: 32 - 41° in 0.2 - 0.5° accuracy
MCU Specification
NXP KL03 serial MCU
Cortex M0 + 32Bit/48Mhz
Support IO Interface: I2C, UART, SPI, GPIO
Support 12 bit ADC
Build-in RTC/PWM
Temperature Detection Specification
Distance: 30-50cm, Accuracy ±0.2°C ~ ±0.5°C
Detect the temperature of forehead
Auto-search the temperature of forehead in 2 seconds
Operation temperature(Room temperature): 15 - 30°C
Physical & Environment
Operation Temperature: 15 to 30°C
Storage Temperature: -20 to 70°C
Power Consumption: Max: 45mA@5V(Under indicator LED ON and RF transmission.)
Normal: 12mA@5V (Normal mode)
Face Recognition Feature
Recognizable Face Angle: yaw: yaw ≤ ±45°,pitch ≤ ±90°
Detection Speed: 20ms
Tracking Speed: 5ms
Comparing Accuracy: Extracting feature 150ms, Comparing < 1ms
Technical Specification
| Model No. | WS-W2000 |
| PHYSICAL | |
| Dimensions | 257mm x 138mm x 26.5mm |
| Package Dimensions | 365mm x 230mm x 80mm |
| Weight | 1.35kg |
| Package Weight | 1.8kg |
| Appearance Material | 6061 Aluminum Alloy |
| CONFIGURATIONS | |
| Body Temp Measurement | 8 x 8 Thermopile, Distance: 30-50cm, Accuracy ±0.2°C ~ ±0.5°C |
| CPU | ARM 4 Cores, Cortex-A17, 1.8GHz |
| RAM | 2GB |
| Camera | RGM & AI Dual WDR Camera, Micron AR0230 sensors |
| Sockets | RS485,RS232,Wiegand26/34, TTL, On-off signal(D1, D0) |
| FUNCTIONS | |
| Facial Recognition | 1:1, 1:N |
| Face Database Size | Up to 20,000 |
| OPERATION | |
| Operating Temperatures | Face Recognition: -15 - 60°C Body Temperature Measurement: 15-30°C |
| Operating Humidity | Below:90% |
| Rated Voltage & Current | DC12-16V, 2A |
| Camera | RGM & AI Dual WDR Camera, Micron AR0230 sensors |
| Warranty | 1 Year |
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
