Product Details:
Payment & Shipping Terms:
|
| Effective Pixel: | 2.14MP | Video Output: | HD-SDI ( 2 Channels ) |
|---|---|---|---|
| Protocol: | Pelco-D, VISCA | Power Supply: | DC12V |
| Dimension: | 226mm X 212mm X 163mm | Weight: | 1.96 |
| Color: | Grey | Zoom: | 20X |
| High Light: | usb conference room camera,meeting room camer |
||

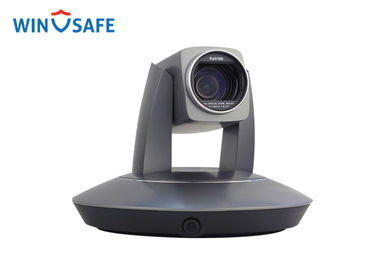

Full HD 1080P HD-SDI Presenter Tracking Camera For Lecturer Capture, With 20X Optical Zoom
LTC Series 2nd Generation HD-SDI Lecturer Tracking System is a standalone tracking device,there is no need to have extra devices/sensors to assist tracking.
It adopts the most state-of-the art face and motion detection technology to precisely lock and track lecturer.Both its two lens can output HD 1080p60 image
through HD-SDI interfaces,the full view lens addressed geometric distortion problem.Connectopn and configuration of the syetem has never been so easy.
Unmanned and standalone tracking
Tracking performance is realized by the system itself, both its two lens manage the tracking algorithm, there is no need to have manual operation or have extra devices/sensors to assistant tracking.
Precise lock and track capability
Tracking is based on both face detection and motion detection technology,which ensures smooth and precise lock & track performance even in comprehensive scenarios
Smart tracking performance
The system does not trac on minor movements,it has tilt motion and auto zoom function to keep tracking lecturer properly once lecturer moves closer/farther,once object is lost,the system moves back to pre-defined position and keeps tracking at that position
Priority tracking zone and blocking zones
The system provides one configurabke priority tracking zone where the tracked lecturer is picked up,there are also eight blocking zones used to block interference sources like projectors,windows,fans and etc.
No fish-eye" at full view lens
The small ful view lens of the tracking system addressed geometric distortion problem,It can be used as a standard image to short lecturer area.
Easy connection,configuration and communication
The system comes only with HD-SDI video interfaces,poewr and control interfaces,it is east to connect your system.The system provides a free PC based control software to manage tracking and other configuration.It support standard VISCA & Pelco D protocols to communicate seamlessly with your control device
Technical Specification
| Model No. | LTC-A2001 | |
| Image Sensor | 1/2.8" Exmor CMOS, 2.14MP | |
| Lens | f = 4.7mm - 94mm | |
| Zoom | Optical : 20X, Digital : 12X | |
| Field of View | 59.5° - 2.9° | |
| Focus | Auto, Manual,One push | |
| Min.Illumination | 0.5Lux(Color), 0.1Lux(B/W) | |
| Shutter Speed | 1/1 - 1/10,000s | |
| Gain | Auto/Manual | |
| White Balance | Auto, Indoor, Outdoor, One push, Manual | |
| Exposure | Auto, Manual,Shutter Pri,Iris Pri | |
| S/N Ratio | Above 50dB | |
| Full view camera | ||
| Image Sensor | 1/2.8" Exmor CMOS | |
| Effective Pixel | 2.14mp | |
| White Balance | Auto | |
| Exposure | Auto | |
| Field of View | Horizontal:92°;Vertical:50°(before geometric distortion correction | |
| Lens | 3.73mm | |
| PTZ | ||
| Pan/Tilt Angle | Pan:-170° - +170°/s; Tilt:-30° - +90°/s | |
| Pan/Tilt Speed | Pan:0.1° - +120°/s; Tilt: 0.1° - +90°/s | |
| Preset Number | 256 | |
| Comm Interface | RS232/RS485 | |
| Ethernet | RJ45,100M(for upgrading firmware use only) | |
| Protocol | PELCO-D,VISCA | |
| Video | ||
| Video Output | HD-SDI(2 channels) | |
| Video Format | HD:1080P/60,1080P/50,1080P/30,1080P/25,1080i/60,1080i/50,720P/60,720P/50 | |
| General | ||
| Power Consumption | Below 20W | |
| Power supply | DC12V | |
| Working Temp | 0°C - +40°C | |
| Storage Temp | -20°C - +60°C | |
| Dimension | 226mm x 212mm x 163mm | |
| Weight | 1.96KG | |
| Color | Grey | |
Smart Tracking : Locks the moving person in the center of the image. Tracks even if subject turns around or stands still. Camera is not impacted by small motions like hand gestures.
No Interference : No impact from moving objects, lights or projectors. Tracks even if someone else walks in front of the subject.
Smooth Operation : Camera is quiet as it pans, tilts and zooms with no jitters or shutters. Pan/tilt speed can be customized.
