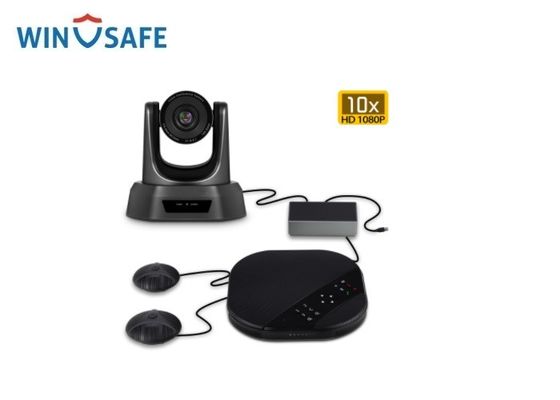

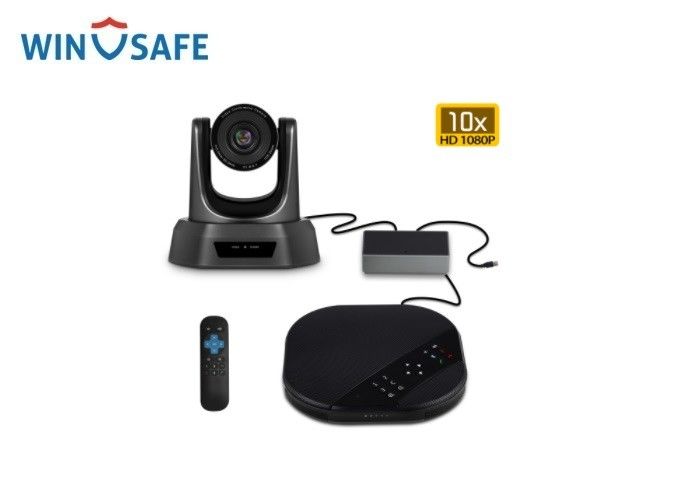

H.264 10X PTZ Video Conference Camera With Hub Microphone Speaker

H.264 10X PTZ Video Conference Camera With Hub Microphone Speaker



Feature:



* Easier Video Conferencing





WINSAFE Video Conference Units solution for groups up to 25 people, delivers high quality HD video and crystal clear audio, allowing any meeting place to be a video collaboration sapce. With acoustic echo cancelation, noise reduction, and intuitive controls now it's easier than ever to include everyont in the conversation.



* Simple Video Collaboration



USB plug-and-play connectivity makes UNITS easy to use. Simply connect a laptop to conduct life-like your own familiar computing enviroment for use with any video conferencing software application. And use the speakerphone with a Bluetooth enabled mobile device for professional quality audio calls.



* 10X OPTICAL ZOOM



Zero in on close-ups of objects and whiteboard connect with outstanding detail and clarity



* HD 1080P Video quality at 30/fps



HD 1080P Video quality at 30/fps Brings life-like full HD video to conference calls, enabling expressions, non-verbal cues and movements to be seen clearly.



* Far-end camera control



Controlled PTZ by IR remote controller or arrow keys on the microphone



* Noise reduction technology



Ambient noises and other distracting tones are suppressed to support comfortable, natural-sounding conversation on both ends of the call.



Specification



CAMERA



* Smooth motorized pan, tilt and zoom, controller from remote or console

* 350° pan, 90° tilt

* 10x optical zoom

* 51.3° field of veiw

* Full HD 1080p 30fps

* H.264/YUV/MJPG video compression

* Autofocus

* 9 camera presets

* Far-end control(PTZ) of conferenceCam

* 1/3 inch HD Color CMOS

* 2.1 Megapixel

* 2D & 3D DNR

* IR Remote Controller

* f = 5.0mm - 50.0mm F1.8(W) - 2.1(T)

* 10m/33 ft range



SPEAKERPHONE



* Full-duplex performance

* Acoustic echo cancellation

* Noise reduction technology

* Ultra-wideband audio

* Bluetooth wireless technology

* Touch controls for call answer/end, volume and mute, bluetooth wireless enabled - plus camer PTZ, "home" preset and far-end control microphones

* 4 omni-directional microphones supporting 6m diameter range

* Expansion microphones support 10m diameter range * Frequency response: 120Hz - 22KHz

* Acoustic Echo cancellation(AEC)>65dB

* Echo length cancellation>400ms

* Bidirectional noise compression<25dB



Speaker



* Frequency response: 100Hz - 22KHz

* Max output: 95dBSPL

* Distortion: <5% from 200Hz



HUB / CABLE



* Central mountable hub for connection of all components

* Included adhesive solution for under-table mounting

* Two cables for connection between hub and camera/speakerphone(Length: 5m/16 ft)

* One USB cable for connection to PC/ac(Length:3m/9.9ft)

* AC power adapter(Length: 3m/9.9ft)

* Dual purpose mount for wall placement or for elevating thecamera on a tableCOMPLIANCE AND TOOLS

* USB 2.0 compliant* UVC-compliant video and audio for broad applicationcompatibility



System Requirements



* Windwos 7,8.1 or 10, Mac OS X 10.7 or higher,Andriod, Linux.Note: For full HD support, please check with yoursoftware application provider for system reuirements



Dimension



Camera:151mm x 131mm x 154mm(L x W x H)

Speakerphone:200mm x 200mm x 52mm(L x W x H)

Hub:100mm x 62mm x 27mm (L x W x H)

Units:430mm x 260mm x 170mm

Weight: 3KG
