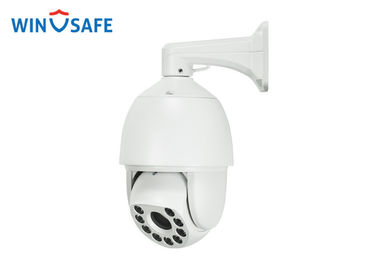

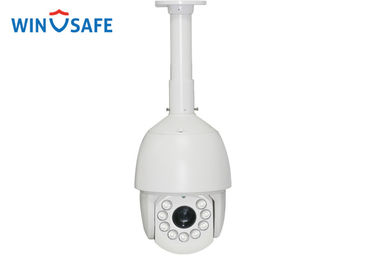

HD 1.3 Megapixel Network IP PTZ Camera Auto Tracking Speed Dome Camera

HD 1.3 Megapixel Network IP PTZ Camera Auto Tracking Speed Dome Camera
HD 1.3 Megapixel Network IP PTZ Camera Auto Tracking Speed Dome Camera HD 1.3 Megapixel Network IP PTZ Camera Auto Tracking Speed Dome Camera

Large Image :  HD 1.3 Megapixel Network IP PTZ Camera Auto Tracking Speed Dome Camera

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: WS-6TFAT-W/P-130

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Netural Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000pcs/month
Detailed Product Description
Color: White Weight: 6.5kg
Effective Pixel: 1.3 Megapixel Mount Option: Wall Mount / Ceiling Mount
Opitcal Zoom: 20X Power: DC12V/4A
Auto Tracking Function: Yes IR Distance: 100M
High Light:

pan tilt security camera


ip pan tilt zoom camera

IP HD 1.3 Megapixel Network IR PTZ Auto Tracking Speed Dome Camera


Product Overview


System Function:


1. Adopt high-performance sensor, resolution achieve 1920x1280.
2. Precision motor-driven,keen responsive,smoothly operation,the precision deviation less than 0.6 degree, the image does not have any vibration under any speed.
3. Support API interface , Hikvision SDK ONVIF , PSIA, CGI protocol.
4. Support English IE interface and operation tips function, user friendly interface.
5. Support system dual backup function to ensure that the data not lost.
6. Support pack function, when the camera in a certain period of time no operation,camera will automatically turn to the guard position monitoring.
7. support for lightning protection, anti surge, anti surge.
8. Protection grade: IP66.


Network function


1. Adopt high-performance Hisilicon platform, stable and reliable performance.
2. Support Ethernet control
3. Can view and control the image via IE browser and CMS software
4. Support NAS video storage, video can be broken network downloads, maximum 8 NAS disk support.
5. Support two levels of user rights management, support for authorized users and passwords, support HTTPS encryption and 802.1x IEEE network access control.
6. Adopt H.264 high profile/M-JPEG dual encoding, video output 1080P+D1 ;



IR Function:


1. Minimum Illumination:0 Lux
2. 9pcs Array Led,IR Distance 120M
3. Infrared light with a magnification distance matching algorithm.
4. The constant current circuit design,Infrared ages can be reach 30 thousand hours.


Zoom module function


1. Support auto iris,auto focus, AWB and BLC.
2. Support low illumination,0.05Lux/F1.4(color),0.01Lux/F1.4(white)
3. Support 3D digital noise reduction,digital WDR function.
4. Effective pixels 2.0 million pixels (1080P).
5. 20x optical zoom




It can be widely used in wide range environments which required monitoring, e.g. river, forest, highroad, railway, airport, port, oil field, sentry, piazza, park, scenic zone, street, station, venue, parcel surrounding, and etc.



Technical Specification



Model No. WS-67FAT-W/P-200
Camera Sensor 1/2.8" Progressive Scan CMOS
Effective Pixels 2.0MP Pixels
Illumination Color:0.05Lux@(F1.6, AGC ON), B/W:0.01Lux@(F1.6, AGC ON)
White Balance Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC Auto/Manual
S/N Ratio Above 52dB
Day & Night IR Cut Filter
Digital Noise 3D/2D
Back light compensation support
Wide Dynamic Range Support, on/off, 4 class for adjustable
Shutter Speed 1/10s - 1/10,000s
Focus Mode Auto/Manual/ONEAF
Lens Focal Length 4.7 - 94mm, 20X
Zoom Speed Approx.2.7s(Optical Wide - Tele)
Angle of View 61.4 - 2.9 degree(Wide - Tele)
Min.Working Distance 10mm - 1,500mm(Wide-Tele)
Aperture Range F1.6 - F3.5
Pan/Tilt Pan/Tilt Range Pan: 360° endless; Tilt: 0° - 90°(Auto Flip_
Pan/Tilt Speed Pan Speed: 0.6° - 220°/s, Tilt Speed:6° - 30°/s
Proportional Zoom support
Number of Preset 220
Patrol 8 patrols, up to 32 presets per patrol
Park Action Pattern / Pan Scan / Tilt Scan / Random Scan / Frame Scan
Network Ethernet 10Base - T/100Base-TX, RJ45 connector
Max.Image Resolution 1920 x 1080
Frame Rate 50HZ:25fps(1920x1080) ; 60HZ:30fps(1920x1080)
Image Compression H.264/MJPEG
Same time Preview Video Max 6 channel
Dual Rate 1080P + D1
User/Host Level Up to 32 users, 3 levels: Administrator,Camera Control, Live viewonly
Security Measures User authentication(ID and PW); Host authentication(MAC address)
Client Support Hikvision Ivms-4200, PCNVR
Net Interface Built in RJ45, Support 10M/100M
Integration Application programming Open-ended API, support ONVIF, PSIA and CGI
Web Browser IE7, IE8, IE9, Chrome 8+, Firefox 3.5+, Safari 5+
General IR Distance 100M - 120M
RS-485 Protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive
Working Temerature - 20°C - 60°C
Humidity 90% or less
Protection Level TVS3000V lightning protection, surge protection and voltage transient protectioin, weather proof IP66
Package Dimension 300 x 300 x 470
Weight(approx) 6.5kg
Mount Option Wall mount, Ceiling Mount






HD 1.3 Megapixel Network IP PTZ Camera Auto Tracking Speed Dome Camera 0
