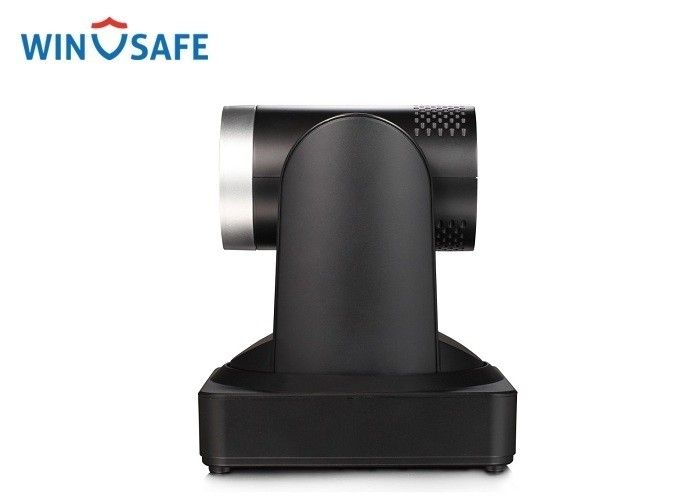

HD 20X Conference Room Video Camera IP ONVIF Broadcasting SDI & HDMI

HD 20X Conference Room Video Camera IP ONVIF Broadcasting SDI & HDMI
HD 20X Conference Room Video Camera IP ONVIF Broadcasting SDI & HDMI HD 20X Conference Room Video Camera IP ONVIF Broadcasting SDI & HDMI

Large Image :  HD 20X Conference Room Video Camera IP ONVIF Broadcasting SDI & HDMI

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: UHV-600A-20-SD

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Netural Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10,000PCS/Month
Detailed Product Description
Weight: 1.4kg Color: Grey & Black Optional
Video Interface: 3G-SDI, HDMI & Lan Optical Zoom: 20X
Digital Zoom: 10X BLC: ON/OFF
Focus: Auto/Manual DNR: 2D & 3D DNR
High Light:

conference room video camera


usb conference room camera

IP ONVIF Broadcasting SDI & HDMI HD 20X Optical Zoom PTZ Video Camera/UHV-600A-20-SD
Leading Auto Focus Technology
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
Multiple Network Protocol
Support ONVIF,RTSP,RTMP protocols and support RTMP push mode,easy to link streaming media server (Wowza,FMS)
Audio Input Interface (for future development)
Support 16000,32000,44100,48000 sampling frequency and AAC,MP3,PCM audio coding.
Wide-range, Quiet and Quick Pan/Tilt Mechanism
By adopting step driving motor mechanism,UHV600A camera works extremely quiet and moves smoothly.
Multiple Audio/Video compression
Support H.264/H.265 video compression;AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.
Superb High-definition Image
UHV600A employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video.Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
Wide Application
Tele-education,lecture capture,Webcasting, Videoconferencing,Tele-training,Tele-medicine, Interrogation and Emergency command systems.
Low-power sleep function
Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode.

Model No.UHV-600-5XUHV600A-10XUHV600A-12XUHV600A-20
Camera Parameter
Optical Zoom5X, f =3.6-18mm10X, f = 4.7 - 47mm12X, f = 3.9 - 46.1mm20X, f = 5.2-98mm
Sensor1/2.8" high quality HD CMOS Sensor
Effective Pixesl16:9, 2.07 Megapixel
Video Format

DVI(HDMI)/SDI video format
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94;720P60/50/30/25/59.94/29.97
USB3.0 interface video format
1. USB 3.0: 1920x1080P60/50/30/25; 1280x720P60/50/30/25; 960x540P30;640x360P30;

    640x480P30; 352x288P30; 960x540P30
2. USB3.0 Compatible with USB 960x540P30;640x360P30,1280X720P10/15;720x576P50,720x480P60,640x480P30,352x288P30
USB2.0 interface video format:176×144/320×240/320×180/352×288/640×480/720×480

1920X1080 P30/25/20/15/10/5

View Angle6.3°(tele) - 80.9°(wide)6.43°(tele) - 60.9°(wide)6.3°(tele) - 72.5°(wide)3.3°(tele) - 54.7°(wide)
AVF1.6 - F3.0F1.6 - F3.0F1.8 - F2.4F1.6 - F3.5
Digital Zoom10X
Min.Illumination0.5Lux(F1.8, AGC ON)
White BalanceAuto / Manual / One Push / 3000K / 4000K / 5000K / 6500K
FocusAuto / Manual
ApertureAuto / Manual
Electronic ShutterAuto / Manual
WDROFF / Dynamic Level adjustment
Video AdjustmentBrightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNRAbove 55dB

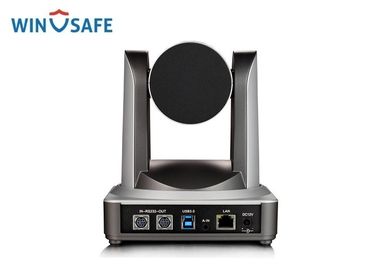

Input/Outpur Interface
Video InterfacesUV600A-05/10/12/20-SD Model:HDMI,3G –SDI,LAN, RS232(Ring through RS232 output),RS485,A-IN,5G WiFi
UV600A-05/10/12/20-U2 Model:U2,LAN,RS232(Ring through RS232 output),A-IN
UV600A-05/10/12/20-U3 Model:U3,LAN,RS232(Ring through RS232 output),A-IN
UV600A-05/10/12/20-HD Model:HDBaseT,LAN ,A-IN
UV600A-05/10/12/20-HDMI Model:HDMI,LAN,RS232(input)
Image Code StreamDual steam output
Video Compression FormatH.265 , H.264
Control Signal InterfaceRS232 Ring through RS232 output
Control ProtocolVISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
Audio Input InterfaceDouble track 3.5mm linear input
Audio Compression FormatAAC/MP3/PCM Audio compression
HD IP interface100M IP port(100BASE-TX); 5G WiFi(Optional),Support Visca protocol control through IP port
Network PrococolRTSP/RTMP/ONVIF, GB/T23181
Powr InterfaceHEC3800 outlet(DC12V)
PTZ Parameter
Pan/Tilt Rotation±170°,-30°~+90°
Pan Control Speed0.1 - 60°/sec
Tilt Control Speed0.1 - 30°/sec
Preset SpeedPan: 60°/sec , Tilt: 30°/sec
Preset Number255 presets(10 presets by remote controller
Other Parameter
Supply AdapterAC110V-AC220V to DC12V/1.5A
Dimension150mm x 150mm x 167.5mm
Romote Operation(IP)Remote Upgrade, Reboot and Reset

Dimensional Drawing
HD 20X Conference Room Video Camera IP ONVIF Broadcasting SDI & HDMI 0
