Product Details:
Payment & Shipping Terms:
|
| Model No.: | CKB-12IP-V | Protocol: | VISCA |
|---|---|---|---|
| Baud Rate: | 9600bps | Communication Range: | RS485,RS422: 1200m; RS232: 10m |
| Joystick: | 3D | Power Supply: | DC12V |
| Weight: | 2.8kg | Dimension: | 320mm X 179.3mm X 109.9mm |
| High Light: | ptz joystick controller,video camera controller |
||

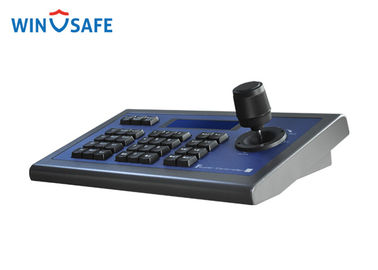

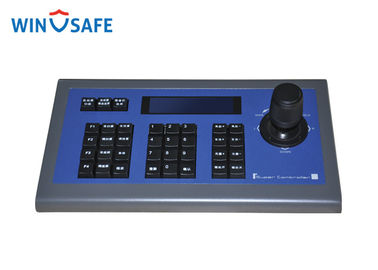

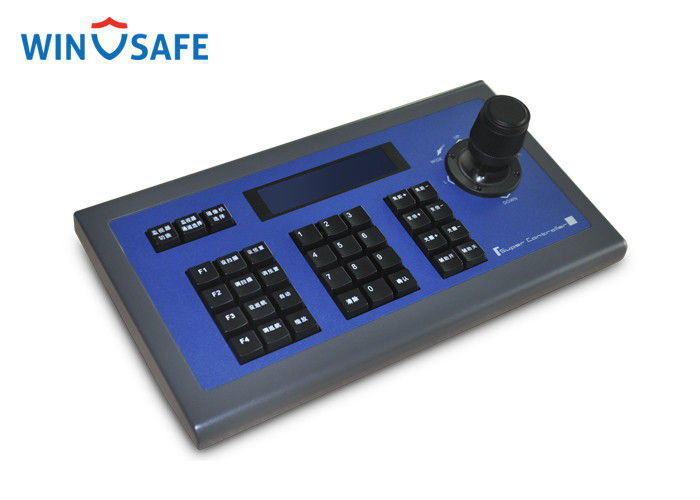

HD Video Conference PTZ Camera Controller , Sony Visca Controller 2.8kg Weight
Application
Control SONY video conference cameras
Product Introduction
※ Specially design for SONY video conference camera, completely compatible with VISCA protocol
※ Can set the address code of SONY video conference camera independently
※ Refurbish the program on line, compile corresponding promotion program according to the protocol
and command provided by customer, customer connectkeyboard controller through RS485 interface
on the computer to update firmware
※ Unique control code learning function, customer can revise the control code command voluntarily
※ Multifold communication mode: RS485, RS422, RS232.
※ All parameters are set by key-press operation procedure, it is convenient and fast
※ Control the rotation of speed dome camera and swinging angle of joystick with nonpolar variable
speed control to embody speed dome camera’s rotating speed real-time
Feature
※ RS485 control bus, can control 7pcs SONY video conference cameras Max.
※ Can set and call 1-46 preset position of SONY video conference camera
※ All input and output communication port use anti-radar design,powerful anti-jamming performance, the standard transmitting distance is 1200 meters
※ Maximum sub-control keyboard:16
※ Keyboard operation password on/off/lock function
※ Key-press warning on/off function
※ LCD display
Specification
| Model No. | CKB-12IP-V | |
| Protocol | VISCA | |
| Baud Rate(bps) | 9600bps | |
| Control Address | Control 7pcs SONY camera at the most, address code: 0-6 | |
| Communication Mode | RS485 half-duplex, RS422 full-duplex, RS232 serial port, 10M internet(select to order), USB(select order) | |
| Communication Range | RS485, RS422: 1200m, RS232:10m | |
| Cascade Connection Mumber | 16 sub-control at most, controllerID:0 -15 | |
| Joystick | 3D(up, down, left,right, zoom) | |

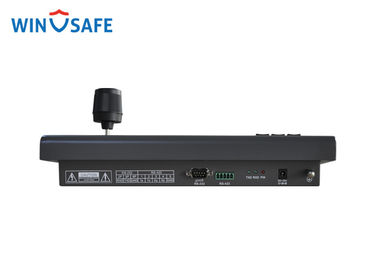

| Interface Mode | 10PIN pressing line port, DB9 connector | |
| Display | Blue LCD Screen | |
| Warning Tone | Key - touch keep on/off | |
| Power Supply | DC12V ± 10% | |
| Power Consumption | 6W MAX | |
| Working Temperature | 0°C - 50°C | |
| Storage Temperature | -20°C - 70°C | |
| Dimension | 320 x 179.3 x 109.9(mm) | |
| Weight | 2.8kg | |
| Certification | CE, FCC, RoHs | |
| Warranty Time | One Year | |
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
