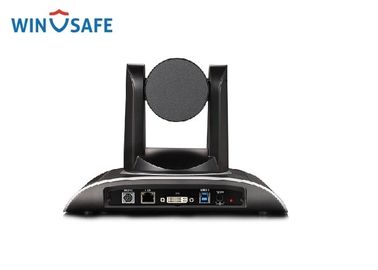

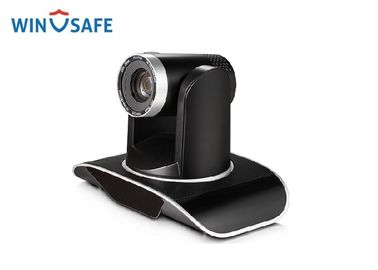

HD Wide Angle Webcasting USB Video Conference Camera UHA800A-12-U3

HD Wide Angle Webcasting USB Video Conference Camera UHA800A-12-U3
HD Wide Angle Webcasting USB Video Conference Camera UHA800A-12-U3 HD Wide Angle Webcasting USB Video Conference Camera UHA800A-12-U3

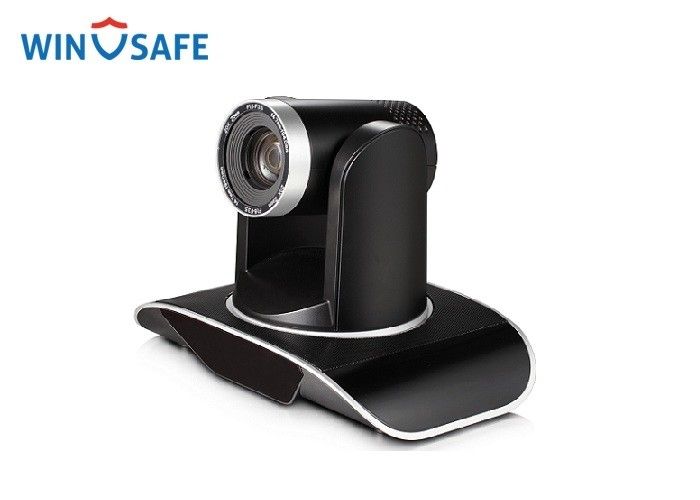

Large Image :  HD Wide Angle Webcasting USB Video Conference Camera UHA800A-12-U3

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: UHA800A-12-U3

Payment & Shipping Terms:

Minimum Order Quantity: 10
Packaging Details: Netural Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Camera Color: Black & White Optional Weight: 1.54kg
Dimension: 258mm X 172mm X 268mm Power: DC12V
Optical Zoom: 12X Digital Zoom: 10X
Pan/Tilt Rotation: Pan: + 170° - +170°; Tilt: - 30° - +90° Preset Number: 256
High Light:

conference room video camera

,

usb conference room camera


HD Wide Angle Webcasting PTZ Video Conference Camera with HMDI & USB 3.0 Interface/UHA800A-12-U3



Leading Auto Focus Technology
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.



Wide Application
Tele-education,lecture capture,Webcasting, Videoconferencing,Tele-training,Tele-medicine, Interrogation and Emergency command systems.


Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video.Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.

Low-power sleep function
Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode.

Various Optical Zoom Lens
UHV800A has 12X/20X optical zoom lens for options. 12x zoom lens is with 72.5 ° wide view angle without distortion.

Wide-range, Quiet and Quick Pan/Tilt Mechanism
By adopting step driving motor mechanism,UHV800A camera works extremely quiet and moves smoothly.

Superb High-definition Image
UHV-800A employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.

Audio Input Interface (for future development)
Support 16000,32000,44100,48000 sampling frequency and AAC,MP3,PCM audio coding.

Multiple Audio/Video compression
Support H.264/H.265 video compression;AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.

Multiple Network Protocol
Support ONVIF,RTSP,RTMP protocols and support RTMP push mode,easy to link streaming media server (Wowza,FMS)



Technical Specification



Model No. UHV800A-12 UHV800A-20
Camera Parameter
Optical Zoom 12X, f = 3.9 - 46.1mm 20X, f = 557. -110mm
Sensor 1/2.8" high quality HD CMOS Sensor
Effective Pixesl 16:9, 2.07 Megapixel f = 3.9mm - 46.8mm
Video Format DVI(HDMI), SDI video format
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94;720P60/50/30/25/59.94/29.97
USB3.0 interface video format
1. USB 3.0: 1920x1080P60/50/30/25; 1280x720P60/50/30/25; 960x540P30;640x360P30; 640x480P30; 352x288P30; 960x540P30
2. USB3.0 Compatible with USB 2.0: 960x540P30;640x360P30,1280X720P10/15;720x576P50,720x480P60,640x480P30,352x288P30
View Angle 6.3°(tele) - 72.8°(wide) 3.3°(tele) - 54.7°(wide)
AV F1.8 - F2.4
Digital Zoom 10X
Min.Illumination 0.5Lux(F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto / Manual / One Push / 3000K / 4000K / 5000K / 6500K
Focus Auto / Manual
Aperture Auto / Manual
Electronic Shutter Auto / Manual
BLC ON / OFF
WDR OFF / Dynamic Level adjustment
Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR Above 55dB
Input/Outpur Interface
Video Interfaces UHV800A-12/20-SD Model: 3G-SDI, DVI(HDMI), LAN, RS232(IN/OUT), RS485, A-IN, 5GWifi(Optional)
UHV800A-12/20-U3 Model: USB3.0, DVI(HDMI), LAN, RS232(IN)
Image Code Stream Dual steam output
Video Compression Format H.265 , H.264
Control Signal Interface RS232 Ring through RS232 output
Control Protocol VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
Audio Compression Format AAC/MP3/PCM Audio compression
HD IP interface 100M IP port(100BASE-TX); 5G WiFi(Optional);Support Visca protocol control through IP port
Network Prococol RTSP/RTMP/ONVIF, GB/T23181
Powr Interface HEC3800 outlet(DC12V)
PTZ Parameter
Pan/Tilt Rotation ±170°,-30°~+90°
Pan Control Speed 0.1 - 60°/sec
Tilt Control Speed 0.1 - 30°/sec
Preset Speed Pan: 60°/sec , Tilt: 30°/sec
Preset Number 255 presets(10 presets by remote controller
Other Parameter
Supply Adapter AC110V-AC220V to DC12V/1.5A
Input Voltage DC12V±10%
Input Current 1A(Max)
Consumption 12W(Max)
Working Temp -10°C - +50°C
Working Humidity 20% - 80%
Storage Temp -10°C - +50°C
Storage Humidity 20% - 95%
Dimension 258mm x 172mm x 268mm
Weight 1.54KG
Romote Operation(IP) Remote Upgrade, Reboot and Reset
Accessory Power Supply, RS232 control cable, remoter, manual, warranty car, bracket(optional)


Dimensional Drawing(mm)
