| Max Resolution: | 1080P60 | Pixel: | 5MP |
|---|---|---|---|
| Pan Angle: | 340° | Tilt Angle: | 120° |
| RS232 Control: | Support | RS485 Control: | Support |
| USB Output: | Support | 3G-SDI: | Support |
| High Light: | 1080P NDI POE Camera,Image Flip NDI POE Camera,NDI Video Conference Camera |
||

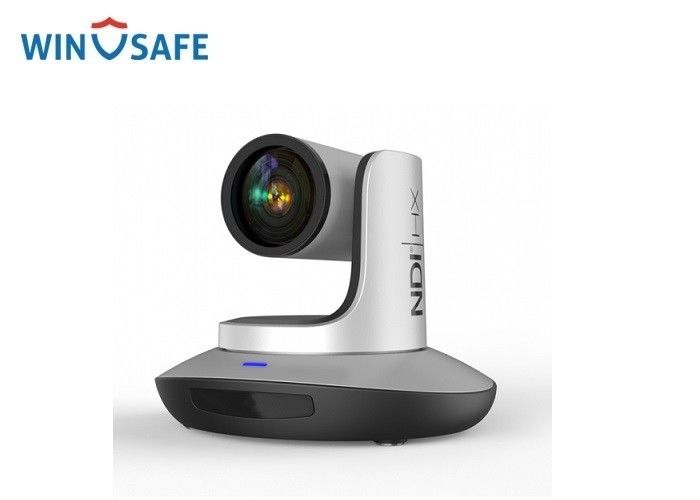

12X FHD 1080P NDI POE Video Conferencing PTZ Camera With Image Flip Function
UHV-12X-IP-S3(NDI) compatible with built-in NDI, supports power, control, audio and video all over a single Ethernet cable simplifying installation and setup for live streaming systems. With support for HDMI, 3G-SDI and RTSP/ RTMP streaming(H.264, H.265& MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast or video conferencing applications.
Feature
Video Connection
HDMI, 3G-SDI, NDI & USB3.0 streaming meet the demands of customers which transfer the video in different video format.
Wide Field of view
12x optical zoom camera offers a wide field of view with the ability to zoom into 72.5°
Power Over Ethernet
The Ethernet port can be used for power, control and video streaming
Full HD Video
1080P@60fps captures clear and crisp video to the attendees.
Technical Specification
| Model No. | UHV-12X-IP-S(NDI) | |||
| Camera | ||||
| Sensor | 1/2.8" 5MegapixelCMOS Sensor | |||
| Video System | HDMI | NDI|HX | 3G-SDI | USB |
| 1920x10800p60/50/30/25 1280x720p60/50/30/25 1920x1080i60/50 |
Main Steam: 1920x1080p30 1280x720p30 Sub Steam: 1280x720@30 1024x576@30 640x360@30 |
1920x1080p60/50/30/25 1280x720p60/50/30/25 1920x1080i60/50 |
USB 3.0: 1920x1080p60/50/30/25 1280x720p60/50/30/25 1024x576p30 USB 2.0: 1024x576p30,960x540p30 640x360p30,352x288p30 |
|
| Zoom | 12x optical zoom + 2x digital zoom | |||
| View Angle | 6.3°(wide) - 72.5°(Tele) | |||
| Focal Length | f=3.92(wide) - 47.32mm(Tele) | |||
| Preset | 10 via remote controller; 128 via serial port; preset precision:0.1° | |||
| Pan Rotation Angle | - 170° - +170° | |||
| Tilt Roation Angle | - 30° - + 90° | |||
| Pan Rotation Speed | 0° - 120° /s | |||
| Tilt Rotation Speed | 0° - 80° /s | |||
| Control Port | NDI|HX RS232 / RS485 | |||
| Video Port | NDI|HX/3G-SDI/HDMI/USB3.0 | |||
| Network Speed | 1000M | |||
| Noise Reduction | 2D & 3D | |||
| SNR | Above 50dB | |||
| Minimum Lux | 0.01Lux | |||
| White Balance | Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor | |||
| Anti Flicker | 50Hz/60Hz/OFF | |||
| D/N Mode | Supported | |||
| Gamma | Supported | |||
| Mirror Image | Supported | |||
| Image Flip | Supported | |||
| Iris | Auto/Manual | |||
| Electric Shutter | Auto/Manual | |||
| BLC | Atuo/Manual | |||
| Focus | Auto/Manual | |||
| Video Encoding | H.264/H.265 | |||
| Bit Rate Control | Variable BitRate, Constant Bit Rate | |||
| Video Bit Rate | 1024Kbps - 20480Kbps | |||
| Frames | 50HZ: 1fps - 30fps; 60HZ: 1fps - 30fps | |||
| IP Protocol | TCP/IP, HTTP,RTSP, RTMP, Onvif, DHCP,VISCA over IP(TCP&UDP),HTML5 | |||
| POE | Supported | |||
| Power | DC12V,2A | |||
| Dimension | 220mm x 173mm x 190mm | |||
| Net Weight | 1.25KGS(2.8LBS) | |||
Output Interface
