Product Details:
Payment & Shipping Terms:
|
| Image Sensor: | 1/2.8" Exmor CMOS | Resolution: | 2.14MP |
|---|---|---|---|
| Focal: | F=3.9mm-46.8mm | IRIS: | F1.6-F2.8 |
| Optical Zoom: | 12X | Digital Zoom: | 12X |
| BLC: | Yes | WDR: | Yes |
| Highlight: | conference room video camera,usb conference room camera |
||

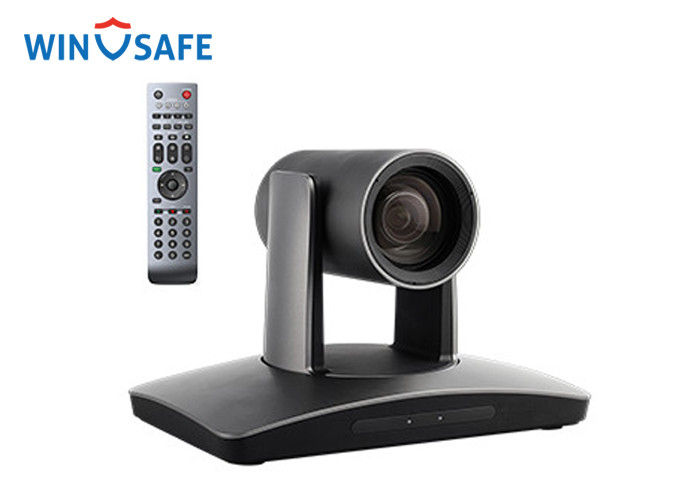

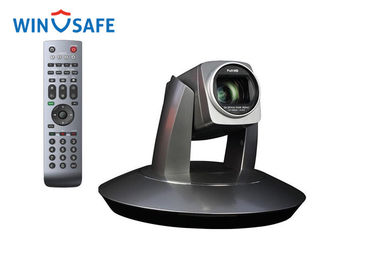

IP HD SDI 1080P 20X Optical Zoom DVI-I PTZ Video Conference Equipment
Features
※ H.265 video compression,dual stream
※ Compatible with ONVIF,RTSP.RTMP protocols
※ 72.5°FOV,12X Optacal zoom,12X digital zoom
※ With OSD menu,support image flip
※ Come with IR remote comtroller
※ Support standard VISCA & Pelco communication protocols
※ RS232IN/IR RS232OUT/RS485 control interface,support daisy chain,
※ Special mechanical PTZ driving system,ensure precise positioning
Technical Specification
| Model No. | AMC-E200N |
| Image Sensor | 1/2.8" Exmor CMOS, 2.14MP |
| Video Standard(HD) |
1080p/60,1080/30,1080i/60,720p/60,720p/30,1080p/50,1080p/25,1080i/50,720p/50, 720p/25 |
| Focal | f = .3.9mm -46.8mm |
| IRIS | F1.6 - F2.8 |
| Zoom | Optical: 12X, Digital: 12X |
| Field of View | 72.5° - 6.3° |
| Focus | Auto, Manual, PTZ Trigger AF, One push |
| Min.Illumination | 0.5Lux(Color), 0.1Lux(B/W) |
| Shutter Speed | 1/1 - 1/10,000s |
| AGC | Auto/Manual |
| White Balance | Auto, Indoor, Outdoor, One push, Manual, Automatic tracking, Sodium, Fluorescent |
| AE Control | Auto, Manual, Shutter Priority, Iris Priority,Intelligence |
| BLC | Yes |
| WDR | Yes |
| Noise Reduction | 2D/3D |
| PTZ | |
| Pan Range | -170° - +170° |
| Tilt Range | -30° - +90° |
| Pan Speed | 0.1° - +120°/s |
| Tilt Speed | 0.1° - +80°/s |
| Preset Number | 256 |
| OSD | Yes |
| Image Flip | Yes |
| Network | |
| Max,Image Size | 1920x1080 @60fps |
| Frame Rate | HD: 50Hz: 50fps(1920x1080) 60Hz:60fps(1920x1080) |
| Video Compression | H.265,H.264 |
| Audio Compression | AAC |
| Protocol | HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF |
| Dual Stream | Support |
| Simultaneous Users | up to 10 users |
| Interface | |
| HD Video Output Interface | DVI-D,HD-SDI |
| Control Interface | RS-232IN/IR, RS-232OUT/RS-485 |
| Ethernet | RJ45,100M |
| General | |
| Control Protocol | VISCA and Support Daisy Chain, PELCO-D, PELCO-P |
| Address | 0 - 63 |
| Power Supply | DC12V |
| Working Temp | 0°C - +40°C |
| Storage Temp | -20°C - +60°C |
| Dimension | 243mm x 145mm x 163mm |
| Weight | 1.2KG |
| Color | Grey |
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
