Product Details:
Payment & Shipping Terms:
|
| Ingress Protection: | IP66 | Pan Range: | 0°~360° |
|---|---|---|---|
| Tilt Range: | 0°~93° | D/N: | IR-CUT |
| Software Control: | IE, CMS, Management Platform | Quick Command: | PELCO Instruction Set |
| Audio Compression: | G711,PCM | IR Distance: | 60 Meters |
| High Light: | pan tilt security camera,ip pan tilt zoom camera |
||

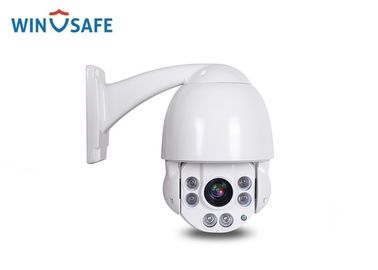

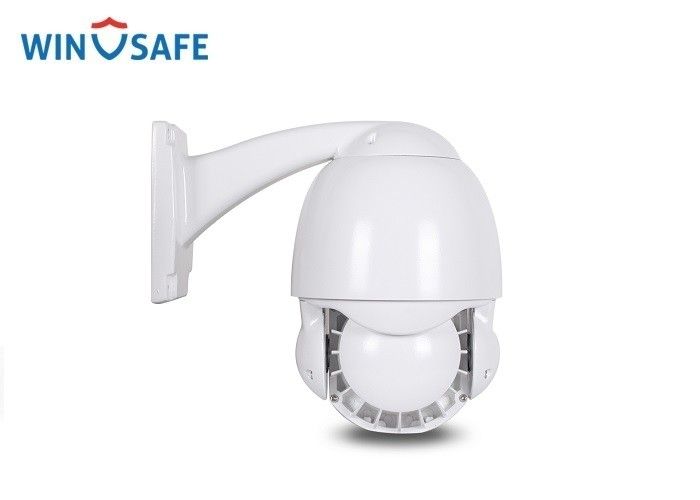

Waterproof IP66 Outdoor IP HD IR Distance 60 Meters Medium Speed Dome PTZ Camera with POE
Feature
※ 4.5" double layer mental body construction, medium speed dome with OSD
※ 1/3" CMOS, 2.0/5.0 Megapixels, 10x optical zoom(5.1mm-51mm)
※ HD-IP digital interface output, 1080P high definition image
※ PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor
※ IR distance 60M
※ Support P2P function
※ OSD menu is available
※ ONVIF2.2 compatible
※ Compatible with DAHUA , HIKVISION , XM and so on
※ Compatible with AXXON , Milstone , NUUO
※ Support OSD menu with multi-languages, UTC
Specification
| Model No. | WS-BT51F-N | |
| DSP | HI3516C | HI3516D |
| Sensor | 1/3" Sony IMX323 | 1/3" AR0521 |
| Pixel | 200W | 500W |
| Resolution Ratio | 1920*1080@25fps / 1920*1080@30fps | 2592*1944@15fps / 2592*1944@22fps |
| Lens | f=5.1mm-51mm | |
| Optical Zoom | 10X | |
| Digital Zoom | 10X | |
| Min. illumination | Color: 0.1Lux B/W: 0.01Lux / IR ON:0 Lux | |
| D/N | IR-CUT | |
| AGC | Auto/manual | |
| WB | Auto/manual/indoor/outdoor | |
| S/N Ratio | ≥50dB(AGC OFF) | |
| Rotation Range | Pan: 0°~360° Tilt: 0°~93° | |
| Horizontal Rotation Speed | 0.02°/s-45°/s | |
| Tilt Rotation Speed | 0.02°/s-30°/s | |
| Auto Flip | Horizontal 180°, Vertical 93° | |
| A-B Scan | User programmable | |
| A-B Scan Speed | 1-9 levels setting available | |
| Communications Protocol | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P | |
| Software Control | IE, CMS, Management Platform | |
| Network Security | HTTPS,802.1X,IP ADDRESS FILTERING | |
| Quick Command | PELCO instruction set | |
| Mobile View(optional) | Support android/ios smart phone | |
| APP | Hisee | |
| Video Compression | H.264/H.265/M-JPEG | |
| Audio compression | G711,PCM | |
| Audio Frequency | Optional | |
| Dwell Preset | 1-60s interval available | |
| Preset Points | 220 | |
| Go to Preset Speed | 1-64 levels available | |
| PWR On Action | Memory/Tour 1/360° scan/A-B scan/Preset 1-8/None | |
| Park Time | 1-60mins available | |
| Guard Tours | 3 groups | |
| Guard Points | Max.16 points, dwell time user selectable | |
| Operation menu | English etc | |
| Pan and Tilt position display | Support | |
| Auto Control IR LED | PWM | |
| LEDs | Array 42Mil, 6 pieces IR LED | |
| Lightning Protection | Transient voltage 6000V | |
| IR distance | Up to 60 meters | |
| Support ambient light detection | IR illumination on 1-9 grades selectable; | |
| Operating temperature | Outdoor: -40°~ +60° | |
| Operating Humidity | ≤95% Non Condensing | |
| Power | DC12V 3A | |
| Consumption | ≤15W | |
| Ingress Protection | IP66 (Outdoor) | |
| Packing Case Size | 30.5cm x 28cm x 20.5cm/PCS(L*W*H) / 60cm x 34cm x 43cm/4PCS (L*W*H) | |
| Weight | N.W 2.51KG/G.W 4.5KG | |
Demension drawing
