Product Details:
Payment & Shipping Terms:
|
Model No.: | CKB06 | Communication Interface: | RS485 |
---|---|---|---|
Protocol: | Pelco - D / Pelco - P / HCDVR /DH | Operation Consumption: | 150mA |
Dimension: | 168mm X 136mm X 104mm | Weight: | 845g |
Material: | ABS Plastic Cover | Voltage: | DC12V |
Highlight: | ptz joystick controller,ptz ip camera controller |

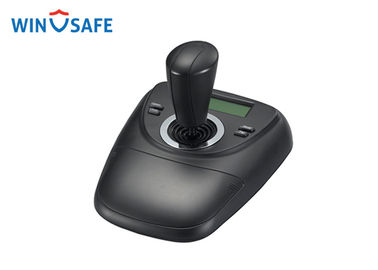

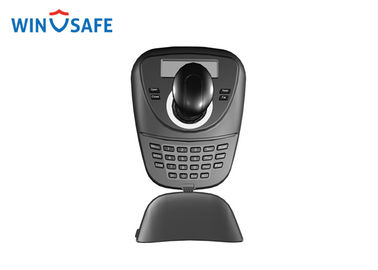

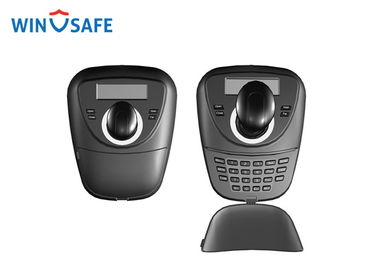

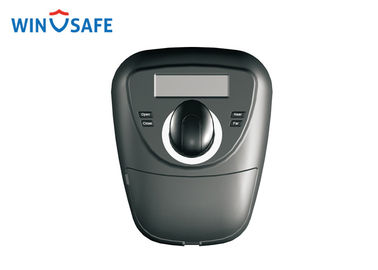

3 -Axis Joystick RS485 Mini Size PTZ Speed Dome Keyboard Controller
Feature
※ RS485 Bus line,and a keyboard can connect 31 domes at most in the direct control mode
※ Can be compatible with all kinds of protocols
※ Can control the Iris, Focus and Zoom
※ Can set and call the preset, run the scanning the pattern and the tour
※ Can control the matrix and through which can control the dome indirectly
※ Equipped with 3D Joystick and a LCD screen
Specification
Model No. | CKB-06 | |
Communication Interface | RS485 X 1, IR X 1 | |
Communication Frequence | 2400, 4800, 9600,19200bps | |
Communication Mode | RS485 | |
Protocol | Pelco-D/Pelco-P/HCDVR/DH | |
Humidities | Less than 90% | |
Operation Temperature | -10°C - 50°C | |
Operation Voltage | DC 12V±10% | |
Operation Consumption | 150mA | |
Dimension | 168mm(L) x 136mm(W) x 104mm(H) | |
Weight | 845g | |
Material | ABS Plastic Cover |
Introduction
The mini keyboard controller is a full-function system keyboard,With features of ergonomic design, multi-function,high reliaility and easy operation, it is a perfect controller for vehicle speed PTZ cameras, video conference cameras, surveillance cameras and so on.
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
