| Sensor: | 1/1.8" SONY CMOS | Optial Zoom: | 12X |
|---|---|---|---|
| Lens: | 4.2mm - 50.4mm | FOV: | 82° |
| HD Base T Outputs: | Optional | Housing Color: | Black |
| Size: | 251mm X 159mm X 195mm | Power: | DC12V |
| High Light: | Live Streaming NDI PTZ Camera,HDMI NDI PTZ Camera,12X Optical Zoom NDI Camera |
||

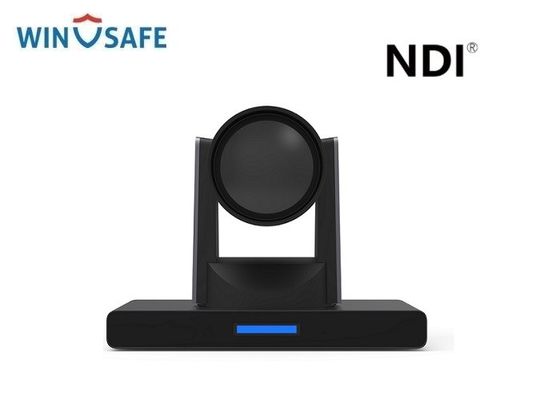

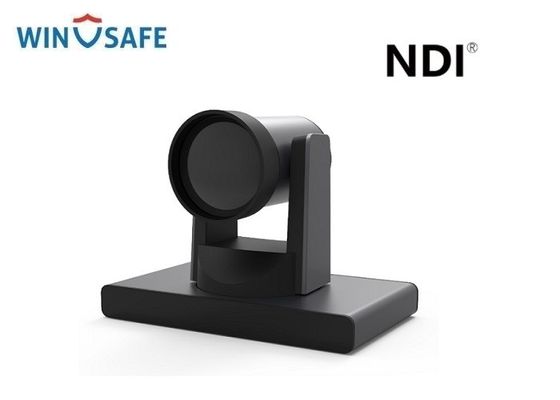

NDI 12X Wide View 4K Ultra PTZ Video Camera with HD-SDI & DVI-I Output
AMC-H1202 adopts 4K sensor and 12x optical zoom to capture UHD video. With NDI technology to support camera's low latency during live broacasting and easy set up & use, it can work under ordinary network, no need for special video quality network equipments.
Feature
※ 1/1.8" high quality CMOS sensor, up to 4K @ 30fps rsolution
※ Support NDI®|HX output
※ 4K wide angle lens, 12x optical zoom, maximum 82° FOV
※ H.265, H.264 video compression, output 4K compressed digital video
※ Outputs 4K uncompressed digital video
※ HDMI, 3G-SDI, USB3.0,Ethernet and optional HD Base T outputs
※ Dual stream, supports multi-level image quality configuration
※ 1 audio input
※ TF card supports maximum 64G storage
※ VISCA in and out, Daisy Chain, PELCO-P, PELCO-D
※ OLED screen to display necessary information
※ Desktop and wall mounting options
Technical Specification
| Model No. | AMC-NH1202 |
| Camera | |
| Image Sensor | 1/1.8" CMOS 8.41MP |
| Lens | f=4.2mm-50.4mm, F1.8-F2.8 |
| Optical Zoom | 12X |
| Digital Zoom | 12X |
| Field of View | 82.6° - 8° |
| Focus | Auto, Manual, PTZ Push, One Push |
| Shutter Speed | 1/25 - 1/10,000s |
| AGC | Auto/Manual |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual, Auto Track |
| AE Control | Auto, Manual,Shutter Priority, Iris Priority |
| S/N Ratio | Above 50dB |
| DNR | 2D / 3D |
| BLC | Yes |
| WDR | Yes |
| PTZ | |
| Pan Rotation Angle | - 170° - +170° |
| Tilt Roation Angle | - 30° - + 90° |
| Pan Rotation Speed | 0° - 120° /s |
| Tilt Rotation Speed | 0.1° - 80° /s |
| Preset Number | 255 |
| OSD Menu | Yes |
| Image Flip | Yes |
| Video Format | |
| Video Output | 4K@30fps, 4K@25fps, 1080P60,1080P50, 1080I60,1080I50. 1080P30,1080P25, 720P60,720P50 |
| Network | |
| Max. Image Size | 4K@30fps |
| Video Compression | H.264/H.265 |
| Audio Compression | AAC |
| Protocol | HTTP, RTSP, RTMP, RTP, TCP,UDP, ONVIF |
| Dual Stream | Support |
| USB | |
| Max. Image Size | 3840*2160 @ 30fps |
| Video Compression | H.264,H.265, MJPEG |
| USB Audio | Support |
| UVC Protocol | UVC1.0 - UVC1.5 |
| UVC PTZ | Support |
| Interface | |
| Video Output Interface | HDMI, SDI, HDBaseT(optional) |
| Audio Input Interface | Line in |
| Audio Output Interface | Line out |
| Ethernet Interface | 10/100/1000M(NDI | HX), POE(optional) |
| USB Interface | USB3.0 |
| Control Interface | RS-RS232IN, RS-232OUT, RS-485 |
| TF Card | Max. 64G |
| General | |
| Power Supply | DC12V |
| Power Consumption | Below 20W |
| Working Temperature | -10°C - +40°C |
| Storage Temperature | -20°C - +60°C |
| Dimension(W x H x L) | 251mm x 159mm x 195mm |
| Net Weight | 1.5kg |
| Color | Grey |
Dimension
Accessories
Application
AMC-H1202 are good used on the workship, enterprise, telemedicine, chruch etc. online broadcasting and other professional AV solution place.
