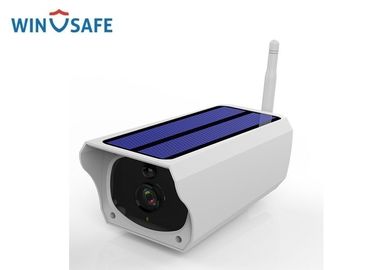

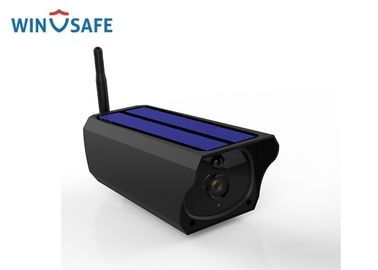

Outdoor Waterproof Full HD IP Camera Solar Panel Powered 2MP 1080P Pixel

Outdoor Waterproof Full HD IP Camera Solar Panel Powered 2MP 1080P Pixel
Outdoor Waterproof Full HD IP Camera Solar Panel Powered 2MP 1080P Pixel Outdoor Waterproof Full HD IP Camera Solar Panel Powered 2MP 1080P Pixel

Large Image :  Outdoor Waterproof Full HD IP Camera Solar Panel Powered 2MP 1080P Pixel

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: WS-S200

Payment & Shipping Terms:

Minimum Order Quantity: 1piece
Packaging Details: Neutral packing
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Pixel: 2MP 1080P Battery Power: 2 Section 18650 Rechargeable Battery
Standby: Always Life TF Card: Max 64GB
WiFi: Support Wifi Distance: More Than 50 Meters
Night Vision Distance: 8 Meters View Angle: 105 Degree
High Light:

high resolution ip camera


hd ip security camera

Outdoor Wifi waterproof Security Battery Solar panel Powered IP Camera


Technical Specification

Model No. WS-S200 IP Camera
Main Function
Battery Power 2 section 18650 rechargeable lithium battery power supply, easy to disassemble, replaceable battery
Battery recharge 1.Solar panel charging 2.USB interface charging3.Use the charger to charge the battery.
Standby Always life
Free Install Battery supply,no power line,Install at will.
Outdoor Used for outdoor mobile video photography etc. (Notes: This product could match with IP66 anti-water shelf.)
Wake up Camera could be wake up remotely, running APP and check Video timely.
PIR Night Vision Built-in PIR, see clearly in darkness.
Snapshot and Video Support snapshot and record when trigger alarm.
TF Card Insert TF card to support snapshot,video recording. Max 64GB.
PIRDetection On/Off PIR Detection,When someone invade the detection field,alarm notification will be push to Smart phone.
Notification Device romote call,Image,Voice detection notification supported.
WIFI Built-in WIFI module,WIFI distance50M+
Replay User could check Snapshot,video and voice message to replay in APP.
Connection AP mode,wireless WIFI,Sound Wave,LAN search and RQ code scanning connection.
User An APP could add more than one cameras,Also support one camera monitoring by more users.
Low battery Automatic battery data collection,When battery too low,charging notification push to smart phone.
OS Linux
Resolution 1080P
Main Chipset T20-Z
Image sensor PS5250
Video code H.264; Duel video stream,Max 960P,(ROI),GOP,I/P/B Supported
CBR/VBR Supported
Default main stream 15 frames 1Mbps subcode stream 10 frames 512Kbps.
Voice code G726 ,G711,AAC,MP3,8K sampling rate,Support echo offset function
Video Support OSD image addition
Peripheral interface 32.768K RTC,internalintegration10M/100M Ethernet PHY
Standby Built-in MCU, Standby, PIR,Button,GPIO alarm wake up system supported;Standby average consumption 900uA
Key Internal Integration 128KB Efuse;DES/3DES/AES Supported;Custom Key boot supported.
Lens Type Glass Lens
Lens 3.6MM/F2.2
View Angle 105°
Night 8meters
Day/Night Dual IR-Cut filter auto switch
Wireless 2.4GHzIEEE 802.11b/g/n
Speed 150Mbps(Max)
Wireless connection Smartlink
Sound wave Yes
P2P Yes
Onvif NO
Software Funtion
Compression way H.264
Resolution 1080P:1920*1080
FPS 25fps,15fps
Video Stream Dual
Multimedia Yes
PIR Detection Yes
E-mail/FTP alarm notification No
SD card record No
SD card Vedio record Yes
Cloud storage Yes
UPnP Yes
Storage TF card slot,Max 64GB
System security
User Level Admin
ID Antitheft Yes
PIR Detection Yes, Three sensitivity Level( High Medium Low
Low power Detection Yes
Linkgae Alarm NO
I/O Alarm NO
433 Linkgae Alarm No
PIR 6 PIR,Wave Lenghth 850nm, Effective Range 10M
IR-CUT Dual IR-Cut filter auto switch
Illuminance 3 Lux
Battery Model 2PCS 18650
Standby Always life(In the case of sunlight)
Consumption 0.95W(work) 0.0035W(standby)
Box size(mm) 180x110x90(H)mm
Humidity 20%~85%
Temperature –10°C~60°C
Stock Humidity 0%-90%
Color Black/White

iphone,Android,Android2.3 and above;IOS7.0 and above;
