Product Details:
Payment & Shipping Terms:
|
| IR Range: | 60m(850nm) / 30m(940nm) | IR Wave Leng: | 850nm / 940nm |
|---|---|---|---|
| Voltage: | DC10.8-28V | IP Code: | IP66 |
| Weight: | 1.6kg | Image Sensor: | 1/2.8" Exmor CMOS |
| Color: | Black/White | White Balance: | Auto |
| High Light: | rugged surveillance camera,rugged security camera |
||

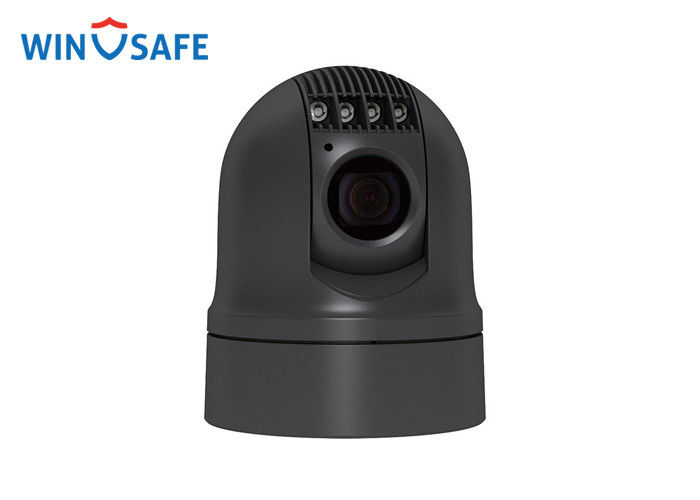

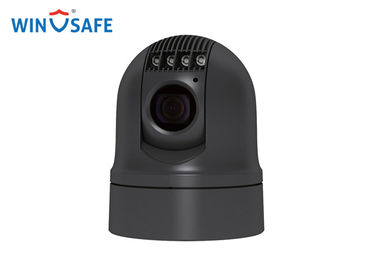

Portable Black Analog Waterproof IP66 SDI Rugged PTZ Camera
CAHC-A2001-IR is suitable for police car / event survellance rapid deployment / defense robot / patrol ships and boats/ Emergency vehicle etc. With 20X optical zoom lens and excellent night vision function, it offers brightly sharpness in video. Make surveilance safer.
Features
※ 2.14MP, 1080p@30fps max resolution
※ Support HD-SDI & CVBS output
※ IR distance: 60 meters
※ Easy to install and carry, multiple installation
※ Optional damping system
※ WDR supported
※ Built-in defogger
※ Self-adaption of Protocol & Baud rate
※ Wide range of voltage input(10.8-28V)
※ Auto power-off which low power supply
Technical Specification
| Model No. | CAHC-A2001-IR |
| Camera | |
| Image Sensor | 1/2.8" Exmor CMOS |
| Effective Pixel | 2.14MP |
| Video Output | HD:1080p30 / 1080p25 / 1080i60/ 1080i50 / 720p60 / 720p50 / 720p30 / 720p25 |
| Min.Illumination | Color: 0.5Lux; B/W: 0.1Lux |
| White Balance | Auto |
| Focus | Auto / Manual / PTZ Trigger |
| Exposure | Auto / Shutter priority |
| S/N Ratio | 50 Db |
| BLC | On / Off |
| WDR | On / Off |
| Digital Noise Reduction | 1 - 5 Steps / OFF |
| Day/Night | Auto / Manual |
| Lens | |
| Optical Zoom | 20X |
| Digital Zoom | 12X |
| Focal | f = 4.7 - 94mm |
| IRIS | F 1.6 - F3.5 |
| Angle Field of View | 59.4° - 2.9° |
| PTZ | |
| Pan Range | 360° Continuous |
| Pan Speed | Control speed: 0.3° - 80°/s, adjustable; Preset speed:80°/s |
| Tilt Range | - 15 ° - 90°( Auto Flip) |
| Tilt Speed | Control speed: 0.3° - 35°/s, adjustable; Preset speed: 35°/s |
| Preset Number | 256 |
| Preset Precision | ±0.2° |
| IR Light | |
| IR Wave Length | 850nm / 940nm |
| Range | 60m(850nm) / 30m(940nm) |
| Switch | Auto / Manual |
| General | |
| OSD Lanuage | English |
| Comm. Interface | RS-485 |
| Video Interface | HD: HD-SDI |
| Protocol | 2400bps, 4800bps,9600pbs,19200bps(self-adaptive) |
| Address | 0-255 |
| Voltage | DC10.8-28V |
| Power | 8W(Standby); 25W(Aux lights ON, defogger ON, and P/T runing continuously) |
| Working Temperature | -30°C - +65°C |
| IP Code | Magnet / Fixed / Fixed with Damper |
| Dimensions | Φ130(mm) x 163(mm) w/o damper; Φ140z(mm) x 199(mm) with damper |
| Weight |
Fixed Mount: 1.7kg; Magnet Mount: 1.6kg; Fixed with damper: 2.1kg |
Dimensional Drawing
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
Why choose us
Winsafe Technology Co Ltd is a HD PTZ video conference camera manufacturer
We will try our best to find the products you need, we will provide you with the most satisfactory service
Contact us to learn more
Welcomes you to visit our factory
