Professional 2.14MP Video Camera For Conference Room , Video Conference Web Camera

China WINSAFE Technology Co.,LTD certification
China WINSAFE Technology Co.,LTD certification
Happy to meet you in Shenzhen office,Nancy.Thanks for your professional introduce of HD IP Lecturer Tracking PTZ Camera,I will test the sample soon.

—— Rainer Kreher

You did a great job delivery.I got those USB cameras in 5days after payment,that is amazing.

—— Idah Manaf

Engineer Mr wu is very nice and patient.He did a high efficient support when we got a connecting problem in office last week,that is very very importa

—— Jonathan

I'm Online Chat Now

Professional 2.14MP Video Camera For Conference Room , Video Conference Web Camera

Professional 2.14MP Video Camera For Conference Room , Video Conference Web Camera
Professional 2.14MP Video Camera For Conference Room , Video Conference Web Camera Professional 2.14MP Video Camera For Conference Room , Video Conference Web Camera

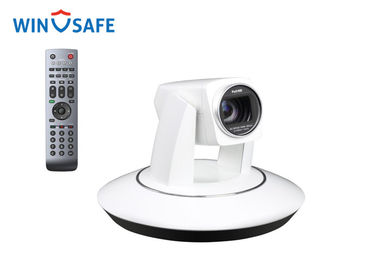

Large Image :  Professional 2.14MP Video Camera For Conference Room , Video Conference Web Camera

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE,FCC
Model Number: AMC-A2001N

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Neutral Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000pcs/month
Detailed Product Description
Image Sensor: 1/2.8" Exmor CMOS, 2.14MP Optical Zoom: 20X
Digital Zoom: 12X AGC: Auto / Manual
OSD: Yes Image Flip: Yes
HD Video Interface: DVI, HD-SDI Power Supply: DC12V
High Light:

conference room video camera

,

meeting room camer

Professional 2.14MP Video Camera For Conference Room , Video Conference Web Camera







A high quality HD-SDI PTZ cameras that can output up to 1080p60. Ideal for any event where one camera needs to capture several locations. Can be controlled with pre-sets and included remote control or via an optional joystick controller. IP control available.



Easy to Set Up, Operate and Control

Simple pan, tilt, zoom functions and one touch presets.

Easy to Mount: Comes with a standard mounting hole. Use with tripod, ceiling or wall mount. All 1 Beyond PTZ cameras have image flip and can be mounted upside down if needed.

Standard Controls: Remote control with included handheld IR remote, joystick or Crestron/Extron control system over RS-232/485. PTZ-IP cameras are controllable with software over IP using HTTP, RTP, TCP, UDP, or ONVIF.

Over 265 Presets: Instead of manually operating the camera, you can have set combinations of pan, tilt, zoom (presets) and call them with different buttons on your control. The camera will automatically move to the pre-set point.





Features





※ H.265 video compression, dual stream
※ Compatible with ONVIF, RTSP, RTMP protocols
※ 2.14MP, 1/2.8" CMOS
※ Support up to 1080p60 and other video formats via SDI interface
※ With OSD menu
※ With HD-SDI interface
※ 1 audio input and 1 audio output
※ New design of PTZ mechanism with higher precision and reliability, presetting precision up to ± 0.01°
※ Support standard VISCA & Pelco communication prococls
※ With IR remote controller
※ Has image flip function for stand and suspended installation
※ Desktop, ceiling, wall and pendant mounting options





Technical Specification





Model No. AMC-A2001N AMC-A1202N
Image Sensor 1/2.8" Exmor CMOS, 2.14MP
HD Signal Format 1080p/60,1080p/30,1080i/60,720p/60,720p/30
Focal f =4.7mm - 94mm f = 3.9mm - 46.8mm
IRIS F1.6 - F3.5 F1.6 - F2.8
Zoom Optical: 20X, Digital: 12X Optical: 12X, Digital: 12X
Field of View 59.5° - 2.9°
Shortest Focus Distance 10mm -1,000mm
Focus Auto, Manual, PTZ Trigger AF, One push
Min.Illumination 0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed 1/1 - 1/10,000s
AGC Auto/Manual
White Balance Auto, Indoor, Outdoor, One push, Manual, Auto Track
AE Control Auto, Manual, Shutter Priority, Iris priority
S/N Ratio Above 50dB
PTZ
Pan Range -170° - +170°
Tilt Range -30° - +90°
Pan Speed 0.1° - +120°/s
Tilt Speed 0.1° - +90°/s
Preset Number 256
OSD Yes
Image Flip Yes
Network
Max.Image Size 1920x1080
Frame Rate HD: 50Hz:50fps(1920x1080) ; 60Hz: 60fps(1920x1080)
Video Compression H.265 , H.264
Audio Compression AAC
Protocol HTTP, RTP, TCP,UDP, RTSP, RTMP, ONVIF
Dual stream Support
Simultaneous Users Up to 10 users
Interface
Ethernet RJ45, 100M
Video Output(HD) HD-SDI
Control Interface RS232IN, RS232OUT/RS-485
General
Protocol VISCA and Support Daisy Chain, PELCO-D, PELCO-P
Spectra Address 0 - 63
Power Consumption Below 15W
Working Temp 0°C - +40°C
Storage Temp -20°C - +60°C
Dimension 226mm x 159mm x 206mm
Weight 1.7KG
Color Grey



A high quality HD-SDI PTZ cameras that can output up to 1080p60. Ideal for l
Dimensional Drawing





Professional 2.14MP Video Camera For Conference Room , Video Conference Web Camera 0
