Product Details:
Payment & Shipping Terms:
|
| Color: | Sliver & White | Field Of View: | 59.5° - 2.9° |
|---|---|---|---|
| Pan Range: | - 170° - + 170° | Tilt Range: | - 30° - +90° |
| Video Interface: | DVI, HD SDI, CVBS | Protocal: | Pelco D, Pelco P, VISCA |
| Power Supply: | DC 12V | Weight: | 1.7kg |
| High Light: | conference room video camera,meeting room camer |
||

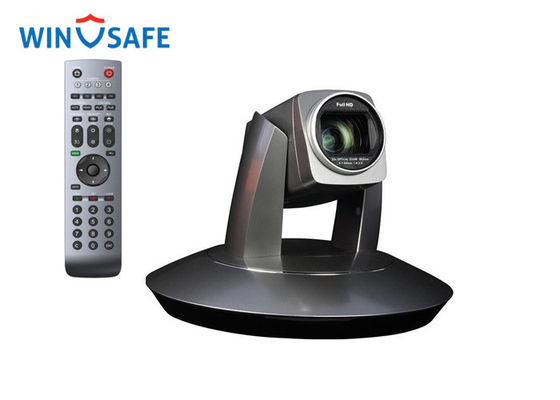

Remote Controller PTZ Video Conference Camera With Image Flip For Meeting Room
Outputs up to 1080p60: All cameras output up to 1080p 60 via HD-SDI. Excellent image quality with 1/2.8” Sony Exmor CMOS sensor. Adapters available to convert to HDMI or USB.
PTZ cameras are perfect for any application that requires a high-quality video camera with the flexibility of remote PTZ operation such as education/training, videoconferencing, houses of worship and more.
Features
※ 1/2.8" EXMOR CMOS image sensor, up to 2.14MP
※ 20X optical,12X digital zoom, up to 72.5° FOV
※ Videoformat,1080p/60,1080p/50,1080p/30,1080p/25,1080i/60,1080i/50,720p/60,720p/50,720p/30,
720p/25
※ Simultaneously output of HD and SD videos
※ Video interface:DVI-I(for DVI-D, HDMI,YPbPr, VGA,5-BNC ect),HD-SDI
※ Control: RS-223IN, RS-232OUT, RS-422/RS-485 etc.
※ On-screen display menu with simple program
※ Has image flip function for stand and suspended installations
※ Support VISCA protocol, daisy chain
※ Come with IR remote controller
※ New design of PTZ mechanism with higher precision and reliability
Technical Specification
| Model No. | AMC-A2001 | AMC-A1202 |
| Image Sensor | 1/2.8" Exmor CMOS, 2.14MP | |
| HD Signal Format |
1080p/60,1080p/50,1080/30,1080p/25,1080i/60,1080i/50,720p/60,720p/50,720p/30, 720p/25 |
|
| SD Signal Format | NTSC,PAL | |
| Focal | f = 4.7mm - 94mm | f = 3.9mm - 46.8mm |
| IRIS | F1.6 - F3.5 | F1.6 - F2.8 |
| Zoom | Optical: 20X, Digital: 12X | Optical: 12X, Digital: 12X |
| Field of View | 59.5° - 2.9° | |
| Focus | Auto, Manual, PTZ Trigger AF, One push | |
| Min.Illumination | 0.5Lux(Color), 0.1Lux(B/W) | |
| Shutter Speed | 1/1 - 1/10,000s | |
| AGC | Auto/Manual | |
| BLC | Auto, Indoor, Outdoor, One push, Manual, Auto Track | |
| AE Control | Auto, Manual, Shutter Priority, Aperture priority | |
| S/N Ratio | Above 50dB | |
| PTZ | ||
| Pan Range | -170° - +170° | |
| Tilt Range | -30° - +90° | |
| Pan Speed | 0.1° - +120°/s | |
| Tilt Speed | 0.1° - +90°/s | |
| Preset Number | 256 | |
| OSD | Yes | |
| Image Flip | Yes | |
| Interface | ||
| HD Video Output Interface | DVI-I(for DVI-D,HDMI, YPbPr, VGA,5-BNC),HD-SDI | |
| SD Video Output Interface | CVBS | |
| Control Interface | RS-232IN, RS232-OUT, RS422/RS485 | |
| General | ||
| Protocol | VISCA and Support Daisy Chain, PELCO-D, PELCO-P | |
| Power Supply | DC12V | |
| Spectra Address | 0 - 63 | |
| Power Consumption | Below 15W | |
| Working Temp | 0°C - +40°C | |
| Storage Temp | -20°C - +60°C | |
| Dimension | 226mm x 159mm x 206mm | |
| Weight | 1.7KG | |
| Color | Grey | |
