System: | Linux | Output: | RS-232, RS452, RJ45 |
---|---|---|---|
Chips: | His3536DV100 | Screen: | TFT LCD 320*240 |
Shortcut Keys: | 7 | Packing Size: | 340*268*140mm |
Camera: | CCTV / Conferencing PTZ Camera | ||
High Light: | 4D PTZ Camera Controller |
RJ45 OLED Display 4D PTZ Camera Controller For Public Security

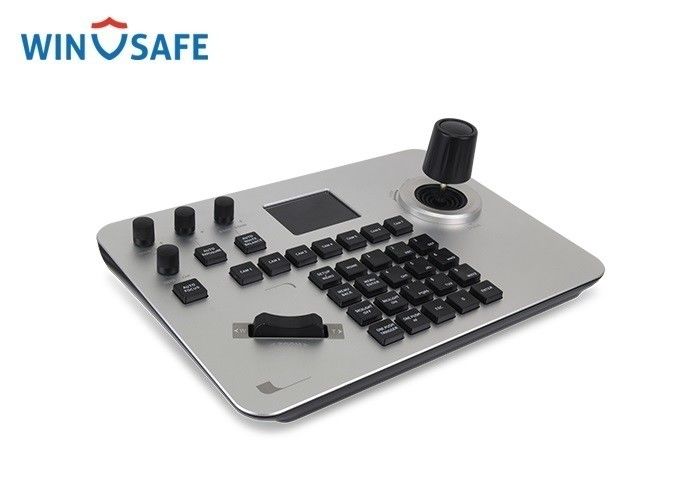

CKB-U2IP over adopts CNC aluminum panel, and the new design of the lower cover aluminum die-casting bottom shell has strong maneuverability, which effectively solves the problem that the current webpage operation video conference camera is inconvenient. The high-end atmosphere, unique surface oxidation treatment, the appearance is simple and beautiful; the industrial-grade LCD screen module has excellent display effect and the characters are delicate and clear. The U2 video conferencing keyboard supports VISCA and ONVIF protocols, and VISCA is fully compatible and extensible. The built-in web server makes the configuration interface simple and clear, and it is easy to operate. It only takes a few steps to achieve perfect control of the video conferencing camera.
Features
※ Support IP version and Analog version at same time.
※ Support full VISCA,ONVIF,PELCO-P,PELCO-D protocol.
※ Support control the software function of the conference camera.
※ Support 4D joystick control ptz function.
※ Seesaw switch control zoom speed.
※ Support IE web setting.
※ Support 7 buttons for CAM1 to CAM7 ,fast switch easily.
Technical Specification
Model No. | CKB-U2IP |
chip | His3536DV100 |
system | Linux |
protocol | Full VISCA,PELCO-D/P,ONVIF |

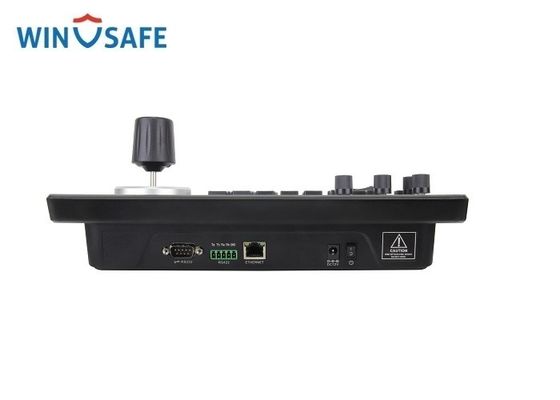

Output | RS422, RS232, RJ45 |
accessories | Seesaw switch, knob , mechanical button, 4D joystick |
Beep | On/off |
screen | TFT LCD 320*240 |
Power consumption | ≤5W |
power | DC12V-2A |
Work temperature | -10℃~55℃ / 14°F~131°F |
Work humidity | 20%~80% frostless |
Storage temperature | -10℃~60℃ / 14°F~140°F |
Storage humidity | 0~90% frostless |
Packing size | 340*268*140mm |
Outer box size and specifications | 553*460*350mm / 6 sets |
weight | 1.9KG |
Application
CKB-U2IP The video conferencing keyboard can be used in various important conference venues, such as government and telecommunications departments, public security, procuratorates, courts, banks, securities, insurance, education, taxation, etc.Easy use to control video conference ptz camera.
Product Dimension(mm)
