Product Details:
Payment & Shipping Terms:
|
| Resolution: | 3840x2160P@30fps | Pixel: | 8.5 Megapixel |
|---|---|---|---|
| Optical Zoom: | 5X | RS485 Control: | Support |
| IP: | Support | POE: | Support |
| SNR: | ＞50dB | USB3.0: | Support |
| High Light: | RS485 Control PTZ USB Camera,8.5 Megapixel PTZ USB Camera,5X Zoom Video Conference Camera |
||

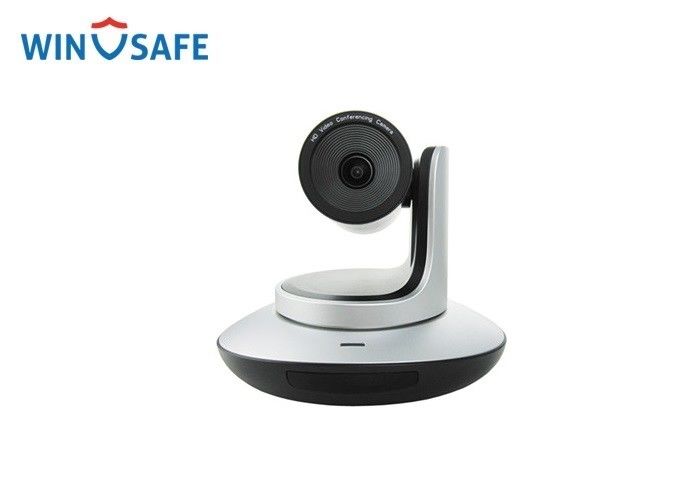

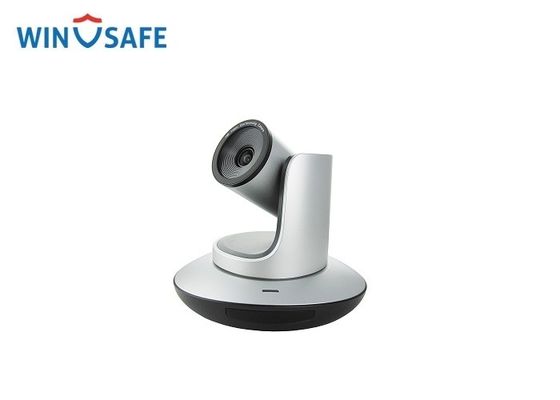

4K UHD USB3.0 5X Optical Zoom Video Conferencing PTZ Camera
Advantages
※ Adopts most advanced DSP,1/2.5 inch 8.5MP sensor
※ Class leading optical lens: 15xlossless HD zooom, 85 degree wide FOV
※ Ultra crystal 4K video via USB 3.0 port
※ Special Focus Algorithm: fast and precise focusing performance when zooming or moving
※ Standard Sony Visca, Visca Over IP, UVC control protocol
※ Supplied with function IR remote controller, can set IP address vis OSD menu
※ HTML5 supported multi-browser: IE,360, Chrome, Firefox, Safari, Opera etc.
※ Compatible with almost popular VC application
Feature
※ IP and USB 3.0 outputs simultaneously
※ 3840x2160p30 Ultra HD video resolution
※ Automatic access to the IP address
※ Smooth PTZ mechanical design, accurate pan tilt motor control
※ WDR, 3D Noise Reduction feature
※ 128 presets
※ Image flip function, support upside-down installation
※ RJ45 support RTSP/RTMP video protocol, H.264,H.265 encoding
※ RJ45 support standard ONVIF protocol, can control by ONVIF keyboard
※ RJ45 support standard Visca over IP control
※ Support POE: easy to use one RJ45 cable to get video, control and power supply
※ Sony Visca and Pelco P/D protocol
Technical Specification
| Model No. | UHV-300H-5 | ||
| Sensor | 1/2.5" 8.5Megapixel high quality CMOS Sensor | ||
| Video System | USB3.0 | USB2.0 | IP |
| MJPG: 3840x2160p30 1920x1080p30 1280x720p30 1024x576, 960x540 800x600; 640x480 640x360; 512x288 YUY2 1080p60/50/30/25 720p60/50/30/25 1024x576p30, 960x540p30 800x600p30, 640x480p30 640x360p30, 512x288p30 |
MJPG: 3840x2160p30 1920x1080p30 1280x720p30 1024x576, 960x540 800x600; 640x480 640x360; 512x288 YUY2 960x540p30 800x600p30 640x480p30 640x260p30 512x288p30 |
Main Stream: 1920x1080p30 1280x720p30 Sub Stream: 1280x720p30 1024x576p30 640x360p30 |
|
| Zoom | 5X(4K), 15Xlossless HD zoom(1080p and lower) | ||
| FOV | 26.5°(near) - 85°(far) | ||
| F.no. | Wide: 2 Tele: 2.8 | ||
| Focal Length | f=2.8(tele) - 14mm(far) | ||
| Preset | 10 via remote controller; 128 via serial port; preset precision: 0.1° | ||
| Pan Rotation Angle | - 170° - +170° | ||
| Tilt Roation Angle | - 30° - + 90° | ||
| Pan Rotation Speed | 0° - 120° /s | ||
| Tilt Rotation Speed | 0° - 80° /s | ||
| Control Port | RS232/RS485/RJ45/UVC | ||
| Video Port | RJ45/USB3.0/USB2.0 | ||
| Network Speed | 1000M | ||
| Noise Reduction | 2D & 3D | ||
| SNR | Above 50dB | ||
| Minimum Lux | 0.01Lux | ||
| White Balance | Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor/Indoor | ||
| Anti Flicker | 50Hz/60Hz/OFF | ||
| D/N Mode | Supported | ||
| Gamma | Supported | ||
| Mirror Image | Supported | ||
| PanTilt Flip | Supported | ||
| Iris | Auto/Manual | ||
| Electric Shutter | Auto/Manual | ||
| BLC | Auto/Manual | ||
| Focus | Auto/Manual | ||
| Video Encoding | H.264/H.265 | ||
| Bit Rate Control | Variable Bit Rate, Constant Bit Rate | ||
| Video Bit Rate | 1024Kbps - 30720Kbps | ||
| IP Protocol | TCP/IP, HTTP,RTSP, RTMP, Onvif, DHCP,VISCA over IP | ||
| POE | Supported | ||
| Input Voltage | DC12V, 2A | ||
| Dimension | 220mm x 173mm x 190mm | ||
| Net Weight | 1.25KGS(2.8LBS) | ||
Dimensional Drawing(mm)
