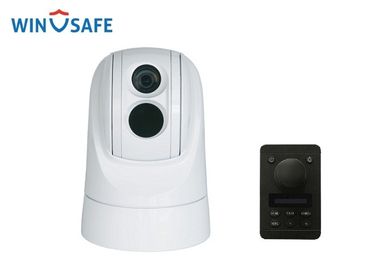

Rugged High Speed PTZ Dome Camera With Maritime OEM 3D Keyboard Controller

Large Image : Rugged High Speed PTZ Dome Camera With Maritime OEM 3D Keyboard Controller

Product Details:

Place of Origin:	China
Brand Name:	WINSAFE
Certification:	CE,FCC
Model Number:	MKB01

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	Netural Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	5000pcs/month

Contact Now

Detailed Product Description

Waterproof:	IP66	Comm.Interface:	RS485/Ethernet
Weight:	0.8kg	Dimension:	141mm(L) X 90mm(W) X 117MM(H)
Display:	OLED	Address:	255
Protocol:	Pelco D/P	Power Consumption:	Below 1.6W
High Light:	ptz joystick controller , ptz ip camera controller

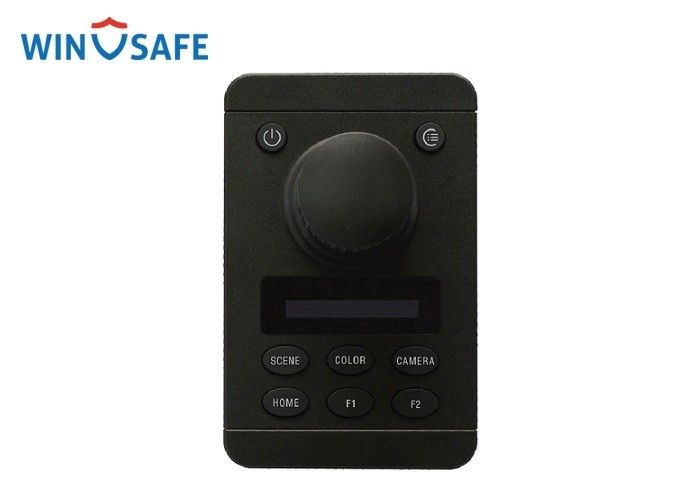

Maritime OEM 3D Keyboard Controller for Rugged High Speed Dome PTZ Cameras/MKB01

Features

※ IP66 Waterproof
※ Control basic features of PATC series thermal cameras
※ 3 axis joystick, OLED display
※ Two colors backlights
※ Support to customize keys
※ Control through both RS485 and Ethernet

Specification

Model No.	MKB-01
Comm.Interface	RS485/Ethernet
Protocol	Pelco-D,Pelco-P
Baud Rate	2400bps,4800bps,9600bps,19200bps
Address	0 ～255
Joystick	3-axis, speed adjustable
Display	OLED
Power Consumption	<1.6W
Humidity	≤90%(no condensation)
Power	<2W
Working Temp	0°C - +40°C
Storage Temp	-20°C - +50°C
Dimension	141mm(L) x 90mm(W) x 117mm(H)
Weight	0.8KG
