Product Details:
Payment & Shipping Terms:
|
Sensor: | 1/2.8" Inch High Quality | WDR: | Support |
---|---|---|---|
Field Of View: | 82.5° | Video Format: | MJPG/H.264 |
Electronic Shutter: | Auto/Manual | Video Port: | USB2.0 |
FECC: | Support | UVC 1.5 Protocol: | Support |
High Light: | usb conference room camera,meeting room camer |

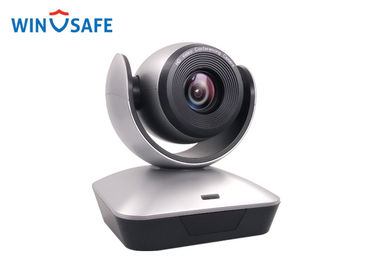

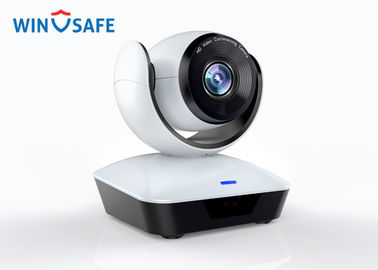

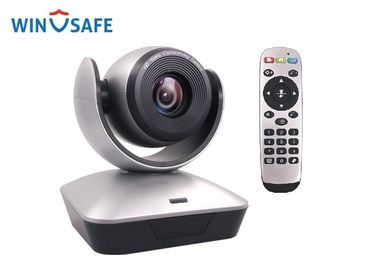

Sony Module 4K Lens USB2.0 1080P HD Video Conference Camera For Skype Buiness / Zoom / Cisco
UHV-4XD-U2S can meet the demands of easy installnation at home or in the office. 4X digital zoom, 82.5 degree FOV and high video definition enables it to be a good webcam in the meeting room.
Feature
Pro-level HD Video Quality
※ Advanced industrial level ISP, SONY 1/2.8" 5MP image sensor, 4K optical lens with 4x digital zoom, to provide ultra crystal and smooth video experience
※ 1920x1080p 30fps full HD resolution
※ 82.5 degree wide angle of viewing
Smooth & Accurate PTZ Movement
※ Compact & stable mechanical design, to ensure the quite, smooth, accurate pan tilt movement
Plug & Play Design
※ USB 2.0 output, single USB cable connection, can start quick video call with any video conference software
※ Support FECC(Far End Camera Control)
Easy Control
※ Standard Sony Visca and UVC 1.5 protocol, RS232/RS485 control
※ Upgradable firmware
※ Image flip function support upside-down installation
Technical Specification
Model No. | UHV-4XD-U2S |
Camera | |
Sensor | 1/2.8" inch high quality, SONY CMOS sensor, 5MP |
Video System | 1920x1080p30/25/20/15/10/5 1280x720p30/25/20/15/10/5 720x576p30/25/20/15/10/5 640x480p30/25/20/15/10/5 320x240p30/25/20/15/10/5 |
Video Format | MJPG/H.264 |
Zoom | 4x digital zoom |
View Angle | 82.5° |
Focal Length | F=2.7mm |
Minimum Lux | 0.1Lux |
S/N Rate | Above 50dB |
Focus | Fixed Focus |
Iris | Fixed Iris |
White Balance | Auto/Manual/Indor/Outdoor/Push/Sodium/Fluorescent |
Electronic Shutter | Auto/Manual |
BLC | Auto/Manual |
Mechanism | |
Pan Rotation Angle | - 170° - +170° |
Tilt Roation Angle | - 30° - + 90° |
Pan Rotation Speed | 0° - 30° /s |
Tilt Rotation Speed | Tilt Rotation Speed |
Preset | 128 via RS232 contorl, 10 via remote controller |
Control | RS232/RS485/USB/Remote |
Video Port | USB2.0 |
Input Voltage | DC12V, 1A |
Camera Size | 148mm x 132mm x 161mm |
Package | 280mm x 240mm x 240mm |
Pacage content | Camera, Romote, RS232 cable, USB2.0 cable, Power adapter |
Dimensional Drawing(mm)
Application
Quality warranty
2 years for free repair
Lifetime service for continued cooperating customers
Price term: EXW factory
Delivery terms: by express (DHL/FedEx/TNT/UPS/EMS/China post), by air or by sea
FAQ
MOQ : 1pc for sample, at least 10pcs after sample order
Delivery lead time :sample order in 3-5 working days, bulk order in 7-15 working days
