Thermal 12Mp Optical Bi Spectrum Network Bullet Camera

Thermal 12Mp Optical Bi Spectrum Network Bullet Camera
Thermal 12Mp Optical Bi Spectrum Network Bullet Camera Thermal 12Mp Optical Bi Spectrum Network Bullet Camera Thermal 12Mp Optical Bi Spectrum Network Bullet Camera Thermal 12Mp Optical Bi Spectrum Network Bullet Camera

Large Image :  Thermal 12Mp Optical Bi Spectrum Network Bullet Camera

Product Details:

Place of Origin: China
Brand Name: WINSAFE
Certification: CE, FCC, RoHs
Model Number: FTMC-9288

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Neutral packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, Paypal
Detailed Product Description
Image Sensor: Vox Uncooled Focal Plane Arrays Thermal Resolution: 256x192
Pixel Interval: 12Mp Daynight Resolution: 1920x1080P
Onvif: Support Video Compression: H.264/H.265
Protection Ingress: IP66 Weight: IP66
High Light:

12Mp Network Bullet Camera


Bi Spectrum Network Bullet Camera


1920x1080P Bi Spectrum Network Camera


Fever Measurement Thermal & Optical Bi-spectrum Network Camera With Black Body For Airport / Railway / Subway / School

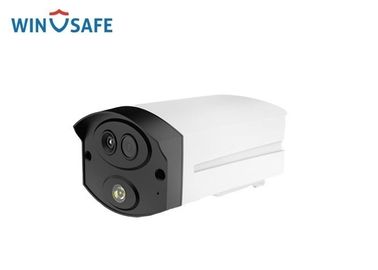

FTMC-9288 Thermal & Optical Bi-spectrum Network Camera, which is capable of highly accurate body temperature measurement, to within ±0.3°C. The camera feature a built-in AI algorithm for multi-person measurements up to 3m distance, enabling fast and non-contact access. Perfect for adjunct use in hospitals, sub-acute health settings, public area(i.e.airports), and more. Also can be widely used in close-range scene monitoring, such as indoor fire prevention, warehouse fire prevention, charging pile temperature monitoring and other fields.


During the epidemic, entrances and exits in public places basically use manual close-inquiries, manual body temperature measurement, manual registration, and personal mobile phone declarations as methods to prevent and control the epidemic. This management method requires a large number of staffs, plus, staffs’s self-protection standards are not uniform, which iseasy to cause cross-infection. In addition, the information of thetested personnel is not comprehensive, and in the event of anew epidemic, there is no good traceability mechanism.




  • High sensitivity thermal module with 256 x 192 resolution
  • NETD is less than 60mk(@ 25°C, F#=1.0)
  • Support contrast adjustment
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Up to 15 palettes of adjustable color
  • Reliable temperature-anomaly alarm
  • Temperature Range from -15°C to +150°C
  • High quality optical module with 2MP resolution, Bi-spectrum image fusion, picture-in-picture preview
  • Support for capture and save in PC of personnel in and out

Technical Specification


Model No. FTMC-9288
Image Sensor Vox Uncooled Focal Plane Arrays
Resolution 256x192
Pixel Interval 12pm
NETD Less than 60 Mk(@25°C. F#=1.1)
Aperture F1.0
Field of View 1/1 – 1/10,000S
SN Ration 35° x 27°(H x V)
Image Sensor 1/2.8” 2.0MP Pixel CMOS
Resolution 1920x1080P
Min. Illumination Color: 0.005Lux @ (F1.2, AGC ON), B/W 0.001皿@ (F1.2, AGC ON)
Field of View 84° x 45°(H x V)
Focal Length 4mm
Shutter Speed 1s to 1/100,000s
White Balance Auto/Manual/ATW(Auto-tracking White Balance)/Indoor/Outdoor/Daylight/Lamp/Sodium Lamp
Day & Night ModeiR cut filter with auto switch
WDR 80 dB
Bi-spectrum Image Fusion Fusion view of thermal view and overlaid details of the optical channel
Picture in Picture Combines details of thermal and optical image PIP, overlay thermal image on optical image
Smart Function
Face snapping Built-in deep learning AI algorithm, supports simultaneous detection of 20-30 faces
Temperature Measurement Support global and local temperature
Temperature Range From – 15°C to +150°C
Temperature Accuracy

Target temperature 35°C A 38°C ±0.3 °C

Target temperature 20°C A 33°C ±0.6 °C

Target temperature 38°C A 50°C ±0.6 °C

Main Steam Thermal: 25fps(1920x1080,1280x720)
Sub Steam Thermal: 25fps(704x576, 352x288)
Video Compression H.264(Baselin/Main/High Profile)MJPEG/H.265
Audio Compression G.711u/G711a/G.7221/MP2L2/G.726/PCM
API ONVIF(Profile S, Profile G, Profile T), SDK
Web Client Language English, Chinese
Power DC12V, 0.65A
Working Temperature/Humidity From -20°C - 55°C,Humidity:95% or less
Dimensions 246mm x 101mm x 81mm(with bracket)
Weight 1KG
Protection Level IP66
