| Sensor: | 1/2.8" High Quality HD CMOS Sensor | Opitcal Zoom: | 20X, F = 55.7 -110mm |
|---|---|---|---|
| Video Interface: | USB 3.0 | Digital Zoom: | 10X |
| View Angle: | 3.3°(tele) - 54.7°(wide) | Focus: | Auto/Manual |
| WDR: | OFF/Dynamic Level Adjsutment | DNR: | 2D & 3D DNR |
| High Light: | usb ptz hd camera,usb conference room camera |
||

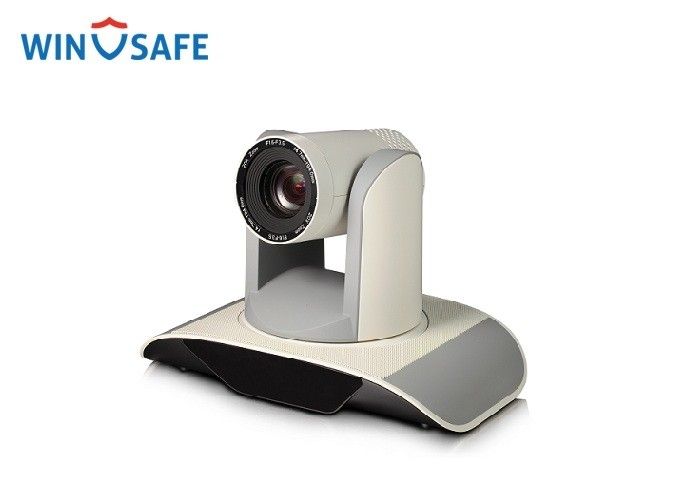

USB 3.0 Tele-Education Lecture Capture Webcasting VideoConferencing Tele-Training Tele-Medicine HD PTZ Video Camera/UHA800A-20-U3
Wide Application
Tele-education,lecture capture,Webcasting, Videoconferencing,Tele-training,Tele-medicine, Interrogation and Emergency command systems.
Low-power sleep function
Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode.
Various Optical Zoom Lens
UHV800A has 12X/20X optical zoom lens for options. 12x zoom lens is with 72.5 ° wide view angle without distortion.
Leading Auto Focus Technology
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
Wide-range, Quiet and Quick Pan/Tilt Mechanism
By adopting step driving motor mechanism,UHV800A camera works extremely quiet and moves smoothly.
Superb High-definition Image
UHV-800A employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
Low Noise and High SNR
Low Noise CMOS effectively ensure high SNR of camera video.Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
Audio Input Interface (for future development)
Support 16000,32000,44100,48000 sampling frequency and AAC,MP3,PCM audio coding.
Multiple Audio/Video compression
Support H.264/H.265 video compression;AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.
Multiple Network Protocol
Support ONVIF,RTSP,RTMP protocols and support RTMP push mode,easy to link streaming media server (Wowza,FMS)
Technical Specification
| Model No. | UHV800A-12 | UHV800A-20 |
| Camera Parameter | ||
| Optical Zoom | 12X, f = 3.9 - 46.1mm | 20X, f = 557. -110mm |
| Sensor | 1/2.8" high quality HD CMOS Sensor | |
| Effective Pixesl | 16:9, 2.07 Megapixel | f = 3.9mm - 46.8mm |
| Video Format | DVI(HDMI), SDI video format 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94;720P60/50/30/25/59.94/29.97 USB3.0 interface video format 1. USB 3.0: 1920x1080P60/50/30/25; 1280x720P60/50/30/25; 960x540P30;640x360P30; 640x480P30; 352x288P30; 960x540P30 2. USB3.0 Compatible with USB 2.0: 960x540P30;640x360P30,1280X720P10/15;720x576P50,720x480P60,640x480P30,352x288P30 |
|
| View Angle | 6.3°(tele) - 72.8°(wide) | 3.3°(tele) - 54.7°(wide) |
| AV | F1.8 - F2.4 | |
| Digital Zoom | 10X | |
| Min.Illumination | 0.5Lux(F1.8, AGC ON) | |
| DNR | 2D & 3D DNR | |
| White Balance | Auto / Manual / One Push / 3000K / 4000K / 5000K / 6500K | |
| Focus | Auto / Manual | |
| Aperture | Auto / Manual | |
| Electronic Shutter | Auto / Manual | |
| BLC | ON / OFF | |
| WDR | OFF / Dynamic Level adjustment | |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | |
| SNR | Above 55dB | |
| Input/Outpur Interface | ||

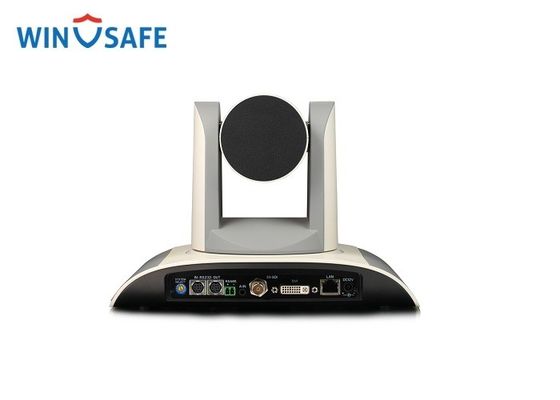

| Video Interfaces | UHV800A-12/20-SD Model: 3G-SDI, DVI(HDMI), LAN, RS232(IN/OUT), RS485, A-IN, 5GWifi(Optional) UHV800A-12/20-U3 Model: USB3.0, DVI(HDMI), LAN, RS232(IN) |
|
| Image Code Stream | Dual steam output | |
| Video Compression Format | H.265 , H.264 | |
| Control Signal Interface | RS232 Ring through RS232 output | |
| Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps | |
| Audio Compression Format | AAC/MP3/PCM Audio compression | |
| HD IP interface | 100M IP port(100BASE-TX); 5G WiFi(Optional);Support Visca protocol control through IP port | |
| Network Prococol | RTSP/RTMP/ONVIF, GB/T23181 | |
| Powr Interface | HEC3800 outlet(DC12V) | |
| PTZ Parameter | ||
| Pan/Tilt Rotation | ±170°,-30°～+90° | |
| Pan Control Speed | 0.1 - 60°/sec | |
| Tilt Control Speed | 0.1 - 30°/sec | |
| Preset Speed | Pan: 60°/sec , Tilt: 30°/sec | |
| Preset Number | 255 presets(10 presets by remote controller | |
| Other Parameter | ||
| Supply Adapter | AC110V-AC220V to DC12V/1.5A | |
| Input Voltage | DC12V±10% | |
| Input Current | 1A(Max) | |
| Consumption | 12W(Max) | |
| Working Temp | -10°C - +50°C | |
| Working Humidity | 20% - 80% | |
| Storage Temp | -10°C - +50°C | |
| Storage Humidity | 20% - 95% | |
| Dimension | 258mm x 172mm x 268mm | |
| Weight | 1.54KG | |
| Romote Operation(IP) | Remote Upgrade, Reboot and Reset | |
| Accessory | Power Supply, RS232 control cable, remoter, manual, warranty car, bracket(optional) | |
Dimensional Drawing(mm)
